TRUE TEMPERATURE

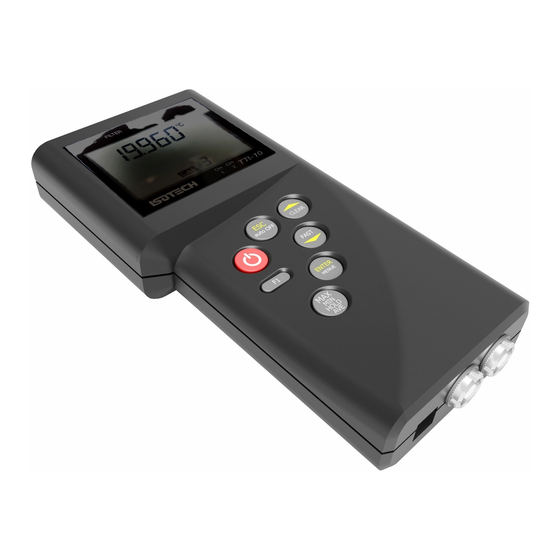

INDICATOR MODEL TTI-10
User Manual/Handbook
Isothermal Technology Limited, Pine Grove, Southport, PR9 9AG, England
Tel: +44 (0)1704 543830 Fax: +44 (0)1704 544799 Internet: www.isotech.co.uk E-mail: info@isotech.co.uk
The company is always willing to give technical advice and assistance where appropriate. Equally, because of the programme of continual
development and improvement we reserve the right to amend or alter characteristics and design without prior notice. This publication is for
information only
Page 1 of 12
TTI-10 Iss.02 – 07/11
Advertisement
Table of Contents
Related Manuals for Isotech TTI-10
Summary of Contents for Isotech TTI-10
- Page 1 Isothermal Technology Limited, Pine Grove, Southport, PR9 9AG, England Tel: +44 (0)1704 543830 Fax: +44 (0)1704 544799 Internet: www.isotech.co.uk E-mail: info@isotech.co.uk The company is always willing to give technical advice and assistance where appropriate. Equally, because of the programme of continual development and improvement we reserve the right to amend or alter characteristics and design without prior notice.
-
Page 2: Table Of Contents
Measuring rate (Normal-Mode/FAST-mode/Filter-Mode) ..........10 AUTO-OFF-function ..............10 TARE-Function (ZERO-Mode F1) ............11 Power supply ................ 11 Error Codes ................. 11 Use with Cal Notepad ..............11 PRT Connections ..............11 Specifications ................ 12 Page 2 of 12 TTI-10 Iss.02 – 07/11... -
Page 3: Guarantee
INTERFERENCE WITH OR FAILURE TO PROPERLY MAINTAIN THIS INSTRUMENT MAY INVALIDATE THIS GUARANTEE RECOMMENDATION The life of your ISOTECH Instrument will be prolonged if regular maintenance and cleaning to remove general dust and debris is carried out. ISOTHERMAL TECHNOLOGY LTD. -
Page 4: Cautionary Note
CAUTIONARY NOTE ISOTECH PRODUCTS ARE INTENDED FOR USE BY TECHNICALLY TRAINED AND COMPETENT PERSONNEL FAMILIAR WITH GOOD MEASUREMENT PRACTICES. IT IS EXPECTED THAT PERSONNEL USING THIS EQUIPMENT WILL BE COMPETENT WITH THE MANAGEMENT OF APPARATUS WHICH MAY BE POWERED OR UNDER EXTREMES OF TEMPERATURE, AND ARE ABLE TO APPRECIATE THE HAZARDS WHICH MAY BE ASSOCIATED WITH, AND THE PRECAUTIONS TO BE TAKEN WITH, SUCH EQUIPMENT. -
Page 5: Handling
Enter into the main menu by pushing [ENTER/MENU]. Use the up and down keys [] to select the required menu. Push [ESC] to revert back to the measuring mode. Page 5 of 12 TTI-10 Iss.02 – 07/11... -
Page 6: Selecting Display Units °C, °F And Ohms
The TTI-10 has different calibration options that allow the instrument to be matched a thermometer. When the TTI- 10 is a calibrated with a probe or probes at Isotech the calibration options are removed to prevent accidental or unauthorised change. The display will indicated that the calibration is active by showing [CAL] and the calibration option for each Channel, e.g., [CAL]22 indicates that calibration mode 2 is active for both channels. - Page 7 Lin2 Chnl The calibration is hidden when the instrument has been calibrated at Isotech, see page 6 for details. Use the up and down keys [] to select the requested calibration option. Push [ENTER/MENU] to confirm. 1) Standard calibration according IEC 60751 / [oFF (No Corrections are applied) Use the up and down keys [] to select [oFF.
- Page 8 [ESC]. Display-indication with active calibration code (OP3): The CAL-segment and the small 3 indicates to the user that oP3 is activated. 5) oP4 Reserved for future use, not currently implemented Page 8 of 12 TTI-10 Iss.02 – 07/11...
-
Page 9: Channel Activation / [Chnl]
The calibration is hidden when the instrument has been calibrated at Isotech, see page 6 for details. Memory Setup/Lo6 The TTI-10 can log up to 4000 measurements in memory and report the maximum, minimum and average values of the logged data. -
Page 10: Recalling The Memory Data (Hold Max Min Ave)
Press [ESC/AUTO-OFF] key once. On the display appears EAoF. Now the instrument switches off automatically after app. 30 minutes. Press [ESC/AUTO-OFF] key again. On the display appears dAoF. Now the Auto-Off-function is deactivated. Note: After switching off the instrument, this function is automatically deactivated. Page 10 of 12 TTI-10 Iss.02 – 07/11... -
Page 11: Tare-Function (Zero-Mode F1)
Remove the battery from the instrument and replace with a new battery. For operation without a battery the TTI-10 can be powered from via the supplied USB Cable. The „BAT“symbol in the display indicates that the battery needs to be exchanged. After displaying the “BAT” symbol, the instrument allows app. -
Page 12: Prt Connections
PRT Connections For best accuracy use only four wire PRT probes. The type of connector need for the probes is Lemo Connector: FGG.1B.306.CLAD52 (Isotech Part Number: 935-16-10) Three wire probes can be connected, link pins 1 and 2. Specifications Input Channels...
