Power LED
Ethernet Link/
Act LED
PLC LED
Group Button
Reset Button
Press 1~3 secs to
reset to factory default
LAN Port
Internet
Modem / Router
Make sure that router is connected to the Internet.
For Instruction Manual go to
Powerline
Wireless Network
LEDs LIGHT INDICATOR DEFINITION
500 Mbps
Powerline Bridge
BEFORE GETTING STARTED
http://www.zinwell.com.tw/manual/PWQ-5101C_UM.zip

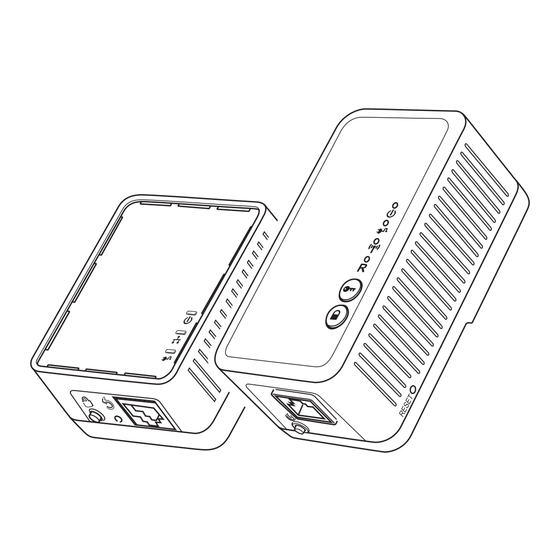

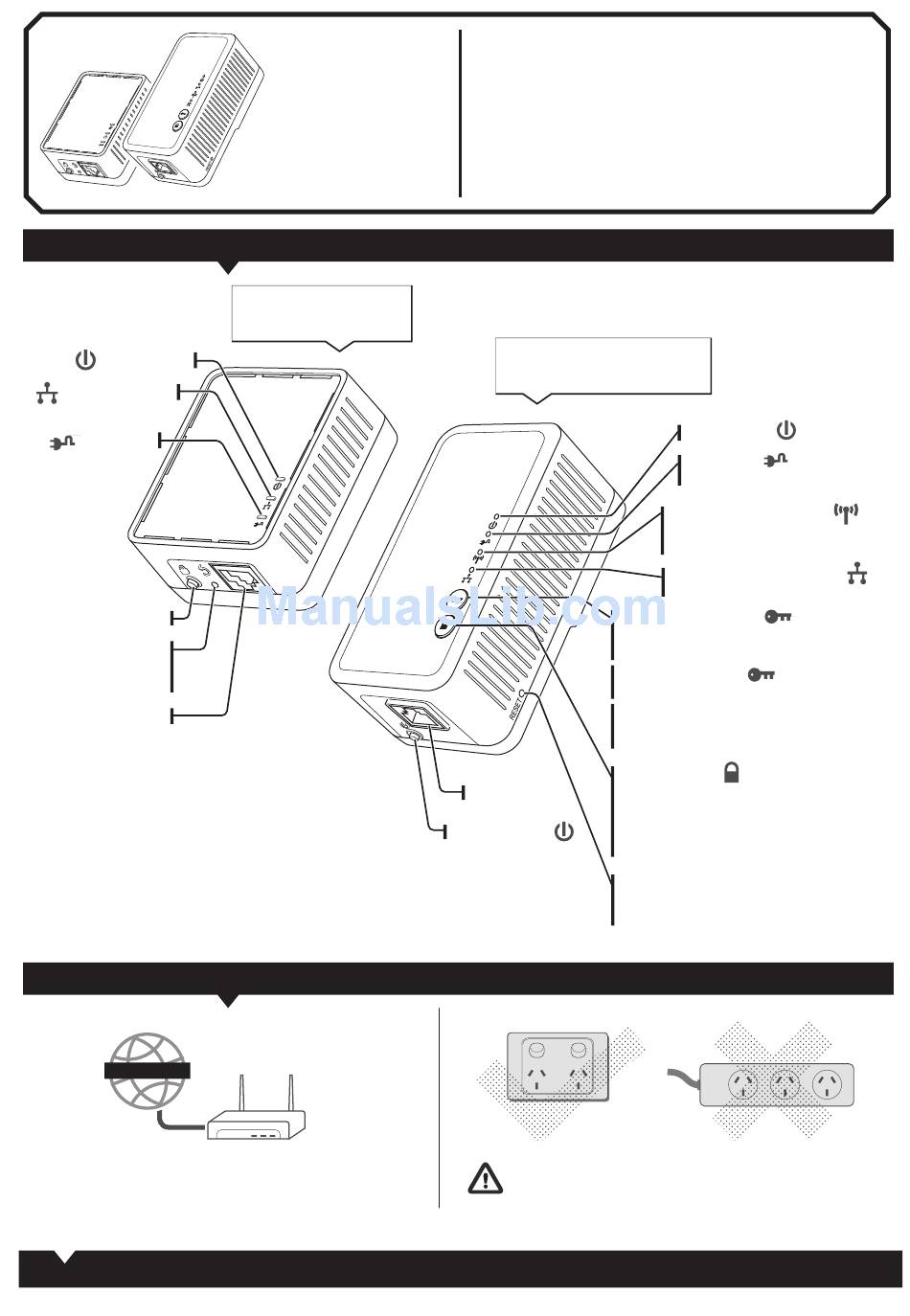

QUICK INSTALLATION GUIDE
500 Mbps Powerline
Wireless N Extender
WPS Button
Press to join an
encrypted Wi-Fi network.
Clone AP Button
Press to duplicate current Wi-Fi network.
To switch between WPS and Clone AP,
please login to Advanced Wi-Fi Setting
via web browser.
Group Button
Press 1~3 secs to join an
LAN Port
encrypted PLC network.
Press over 10 secs to create
Power Button
the encrypted PLC network.
Reset Button
Press 1~2 secs to
reset to factory default
Do Not plug PLC adapter into "surge protector".
PLC data transmission might be blocked.
Power LED
PLC LED
ON: Linked w/ other PLC device
WLAN Link/Act LED
Green: Wi-Fi is encrypted
Red: Wi-Fi is not encrypted
Ethernet Link/Act LED
ON: Ethernet link detected
/Default
IB04722799-0
