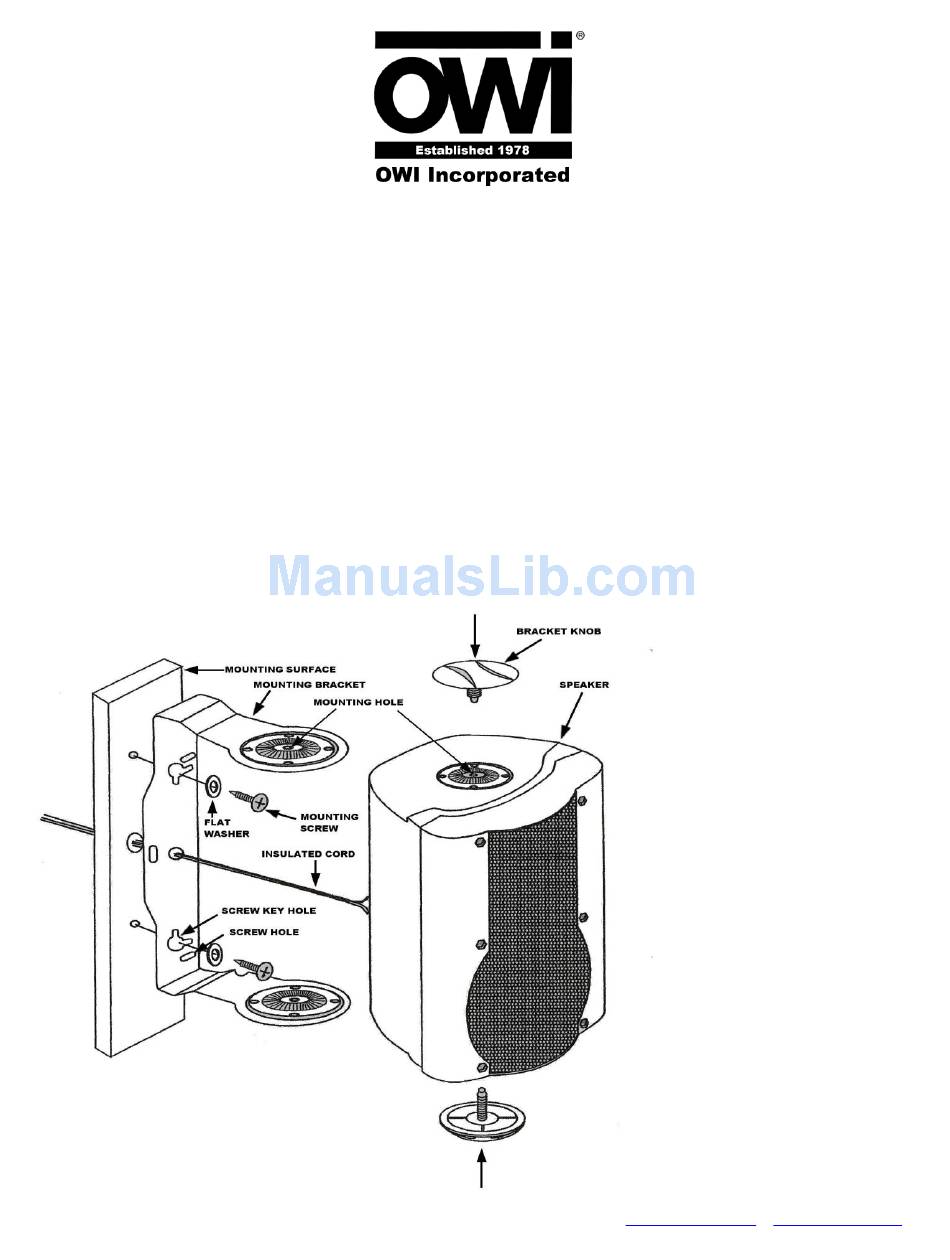

When mounting speakers, use the mounting bracket as a template for marking and drilling three holes.
1)
2) Assemble mounting screws, spring washers, flat washers and nuts to attach mounting brackets to mounting
surface. Note that:- Screws, washers and nuts provided are for mounting the cabinet from both sides of the
mounting location. For any other type of mounting, please consult your local hardware store for appropriate
mounting screws.
3) Follow installation directions included with your amplifier (or receiver). Strip 1/2" (12mm) of insulation
from each of the two conductors of the wire to expose the bare metal and twist each into a single strand.
[Connect the speaker wire to the terminals using the (+) as RED and the (-) as the BLACK].
4) Adjust position of the speaker to obtain the desired sound dispersion.
OWI Inc. * 17141 Kingsview Ave. Carson, CA 90746 USA * Tel. 310-515-1900 *
INSTALLATION INSTRUCTIONS
AMPLV602B & AMPLV602W
PARTS INCLUDED:
Mounting bracket 2 each
Bracket knob
Mounting screw 4 each
Flat washer
Speakers
info@owi-inc.com
*
www.owi-inc.com
4 each
4 each
2 each
