Minarik MM23001C Quick Start Manual

D I M E N S I O N S
SCR501
L1
F2
F1
MOV503
SW501
L2
3.58 [91]
1.75 [44]
115 230
S2
INHIBIT
S3
0.74 [19]
ACCEL
1.60 [41] 1.28 [33]
0.96 [24]
Copyright 2004 by Minarik Drives - All rights reserved. No part of this document may be reproduced or transmitted in any form without written permission from
Minarik Drives. The information and technical data in this document are subject to change without notice. Minarik Drives and its Divisions make no warranty of
any kind with respect to this material, including, but not limited to, the implied warranties of its merchantability and fitness for a given purpose. Minarik Drives and
its Divisions assume no responsibility for any errors that may appear in this document and make no commitment to update or to keep current the information in
this document. kc0604

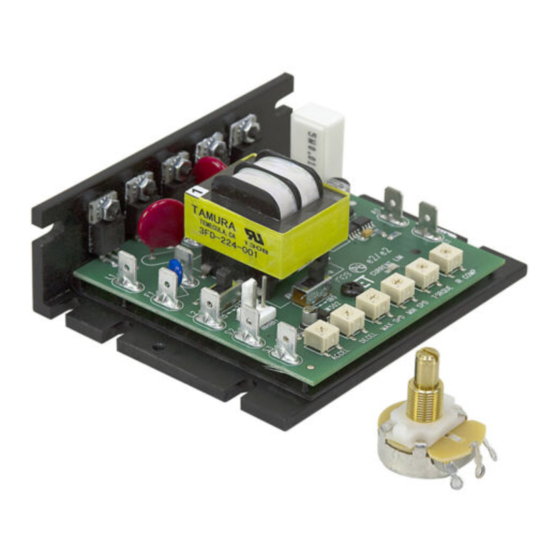

MM23001C
SCR, Adjustable Speed Drive
for DC Brush Motors
D501 D502 D503 SCR502
A2
C501
A1
SO502
+ - C502
METER IC501
C504
CL
90 180
SW502
IL501
S1
0.64 [16]
DECEL MAX SPD MIN SPD TORQUE IR COMP
3.80 [97]
4.30 [109]
14300 De La Tour Drive, South Beloit, IL 61080; Phone: (800) MINARIK (646-2745); Fax: (815) 624-6960
Document Number: 250-0387, Revision 1; Printed in the U.S.A. - May 2006
Q U I C K
AC Line Voltage
Armature Voltage (115 VAC Input)
Armature Voltage (230 VAC Input)
Armature Current
Form Factor
HP Rating (90 VDC)
HP Rating (180 VDC)
Field Voltage (115 VAC Input)
Field Voltage (230 VAC Input)
Max. Field Current
Accel. Time Range:
0.19 [5]
for 0 - 90 VDC Armature Voltage
for 0 - 180 VDC Armature Voltage
Decel. Time Range:
for 0 - 90 VDC Armature Voltage
for 0 - 180 VDC Armature Voltage
Analog Input Voltage Range (signal must be isolated; S1 to S2):
for 0-90 VDC Armature Voltage
for 0-180 VDC Armature Voltage
1
Requires heatsink 223-0159 when above 5 Amps
1. Turn the speed adjust potentiometer to "0" (full CCW)
0.19 [5]
2. Apply AC line voltage
3. Set the POWER switch to the ON position
4. Slowly advance the speed adjust potentiometer clockwise (CW). The
motor slowly accelerates as the potentiometer is turned CW. Continue
until the desired speed is reached.
5. Set the POWER switch to the OFF position to coast the motor to a stop.
M I N A R I K D R I V E S
w w w . m i n a r i k d r i v e s . c o m
S T A R T G U I D E
S P E C I F I C A T I O N S
115 VAC or 230 VAC 50/60Hz, single phase
1.37 at base speed
50 VDC (F1 to L1); 100 VDC (F1 to F2)
100 VDC (F1 to L1); 200 VDC (F1 to F2)
coast to a stop - 13 seconds
coast to a stop - 25 seconds
S T A R T U P
0 - 90 VDC
0 - 180 VDC
10 1 A
1/8 - 1 HP
1/4 - 2 HP
1 ADC
0.5 -11 seconds
0.5 - 22 seconds
0 - 1.4 VDC
0 - 2.8 VDC
