Foscam R2 Quick Installation Manual

1
Installation Notice
Package Contents
Quick Installation Guide
Indoor FHD IP Camera
IP Camera
Power Adapter Quick Installation Guide
Security Warning
Please change the password of your camera regularly,
Model: R2/R4
and use the combination of numbers, letters and special
characters.
We recommend you to update your camera to the latest
You can download the QIG in other languages from
firmware every three months, in order to ensure the
http://www.foscam.com/download/QIG.html
safety of your camera and have a better product
experience.
V1.1
Please keep the username and password of your camera
safe, and do not tell them to others.
2

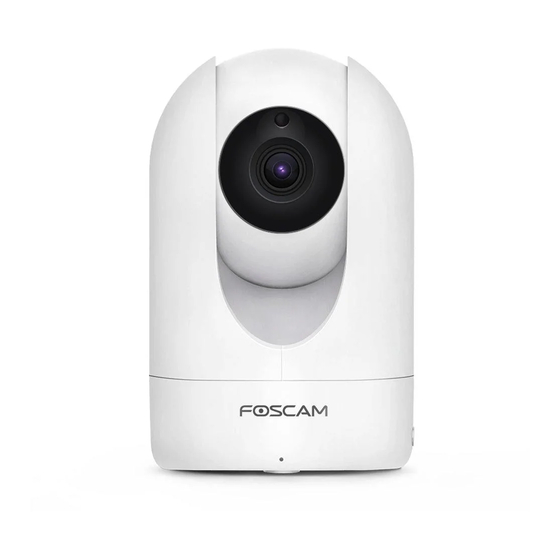

Physical Description
Front View
WiFi Antenna Mounting Bracket
Quick Installation Guide
Indoor FHD IP Camera
Micro SD Card Slot
Warranty Card
Microphone
Rear View
Network light
Power
LAN
Power light
3
Download APP
To install the Foscam APP on your smartphone, you can
choose either of the following methods:
Scan QR code
Lens
If you have a QR Code APP on your smartphone, scan
Infrared LED
the code below.
Foscam
WPS/Reset
Download from App store
You can search the term "Foscam" directly on the APP
Store or Google Play Store. Then find the APP that
appears with the same icon as shown above, and install
it to your smartphone.
Before you continue, please note:
Speaker
Make sure your wireless router is enabled DHCP, and
connected to internet.
Antenna
Make sure your smartphone is connected to your
wireless router and located near the camera.
4
Add IP Camera
There are two methods, wired and wireless connection, for you to
Please note:
add IP camera via Foscam APP. You can choose either of them:
When the camera has a 1080P video output and above, in
4.1 Wired Connection(Recommended)
order to ensure you have a much smoother video
experience on the smartphone, it is recommended that the
smartphone has the following configuration:
IOS: system version 8.1 and above.
1.
Connect the camera with power and wait for a moment, until
Android: systetem version 4.1 and above, and the
the camera plays a sound "Hello, Foscam".
2. Connect the camera with router by Ethernet cable, and then
smartphone has a Graphics Processing Unit (GPU)
the camera will play a sound " Wired connection succeed".
function.
3. Make sure your smartphone is connected to your wireless router.
4. Run the Foscam APP
Cloud account then log in. Please follow the steps below to add
your camera.
My Cameras
Add New Camera
Tap '+' to add new camera
Tap here
Note: If you have added your IP camera successfully by wired
connection, please do not add it again by wireless connection.
on your smartphone, register a Foscam
Setup Wizard
Scan Setup Wizard
Please scan the QR code on
your camera to add.
Please put the QR code within the frame. Put the
barcode outside the frame to avoid interference.
√
Connection succeeded！
Tap the camera in the list to
Tap to scan QR Code watch live video.
轻触扫描二维码
Album
Tap here Scan the QR code Connection succeeded!
