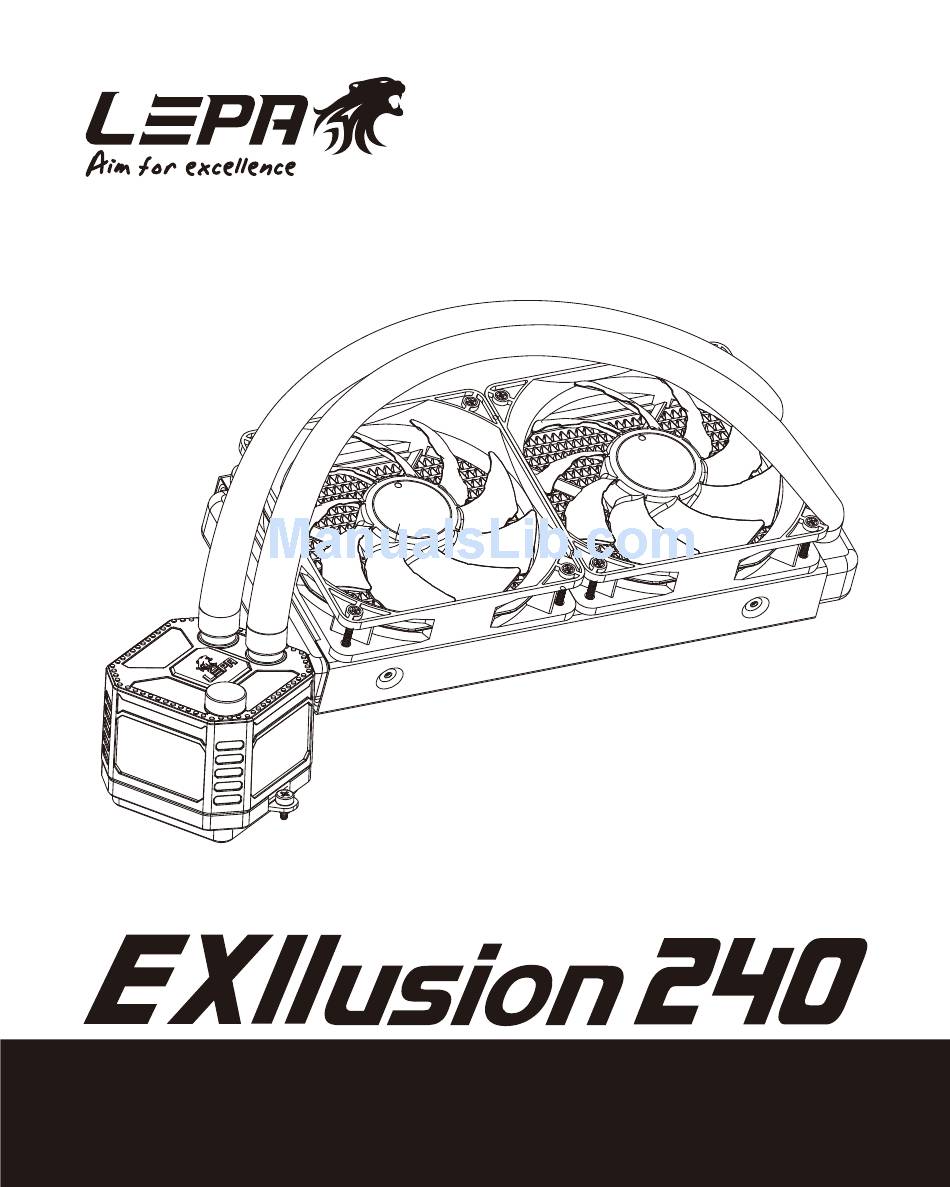

Lepa EXllusionm 240 Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EXllusionm 240 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lepa EXllusionm 240

Summary of Contents for Lepa EXllusionm 240

  • Page 2: Specification

    Specification Model LPWEL240-HF Material Copper Cold Plate Bearing Ceramic Bearing MTBF 50,000 hrs Motor Speed 4000 rpm ±10% Pump Rated Voltage 12 V Rated Current 0.3 A Dimension 274 x 120 x 32 mm Radiator Material Aluminum Material PU Plastic (ID-9.5mm/OD-12.5mm) Tube Length 350 mm...

  • Page 3: Part List

    Part list Fan x 2 Back Plate x 1 Position Plate x 1 Position Screw x 4 Cooler x 1 Stand-off × 4 Case Screw × 8 Fan Screw × 8 Set Screw x 4 Washer x 4 PWM Y cable x 1 Molex Adaptor x 1 Scraper x 1 Thermal Grease x 1...

  • Page 4: Installation

    Installation...

  • Page 5: Pre-Installation

    PRE-INSTALLATION Step A Unplug the PC power supply unit’s 24P main power and water block’s 3pin power connectors from MB. Connect the above connectors to the included 24P power adaptor urn on the power supply unit, this will also power on the pump.
  • Page 6 Step B If you do not want to dye the coolant, please skip this step. Open the filler cap from the water block, and drop the adequate dye (coolan into the water block. Firmly bolt the filler cap back to the water block. Warning: If the filler cap are not firmly bolt back, the coolant might leak and cause damage to system components.
  • Page 7 INSTALLATION Step 1 Attach the fan and the radiator to the case.
  • Page 8 Step 2-A-1 LGA 775/1150/1151/1155/1156/1366/All AMD Socket LGA 1366 LGA 115X LGA755 All AMD socket <If your CPU socket is Intel LGA 2011, please skip to step 2-B.> Install the scre w E into the corresponding position hole on the back plate C f or your CPU socket.
  • Page 9 Step 2-A-2 Install the back plat e C on the back of motherboard, place the washer J in to the position scre w E and fix them with stand-off F .
  • Page 10 Step 2-A-3 Place position plate D on stand-off F and use set screw I to fix.
  • Page 11 Step 2-B LGA 2011/2011-3 LGA 2011/2011-3 Place position plate D on stand-off F and use position screw E to fix. (Socket LGA 2011 does not require the back plate)
  • Page 12 Step 3 Apply the thermal grease on the CPU surface.
  • Page 13 Step 4 Remove the protection film on the cold plate.
  • Page 14 Step 5 Place the pump on the CPU and tighten the two screws.
  • Page 15 Step 6 Pump Pump 3 pin 4 pin Connect the pump power connector to 3-pin or 4-pin connector on the motherboard. Notice: If you recognize that your mainboard's CPU fan or PWM sockets do not provide enough voltage to power the pump, please use the included 4-pin Molex adaptor and connect the pump directly to your PSU.
  • Page 16 Step 7 Connect the fan connector to the 4-pin connector on the motherboard.
  • Page 17 Step 8 Place tray on VGA card to isolate the possible leakage coolant from unsecure filler cap. Warning: If the filler cap are not firmly bolt back, the coolant might leak and cause damage to system components. Such damage is not covered in the warranty.

  • Page 18: Refilling Coolant

    Refilling Coolant Step A Indication sticker: If the water block is horizontally placed and the coolant If the water block is vertically placed and the coolant volume is below this white indicator, please refill the volume is below this white indicator, please refill the coolant.
  • Page 19 Step B-1 Coolant Refill 1. Unplug the MB/CPU/VGA/HDD/SSD/Peripheral power connectors from power supply unit, and water block’s 3-pin power connector from MB. 2. Bridge the power supply unit’s MB 24-pin main connector and water block’s power connectors via included 24P power adaptor O . 3.
  • Page 20 Step B-2 Coolant Refill Open the filler cap from the water block, place tray T and screw fixed ring S . Refill the adequate Coolant Q into the water block. After refilling, remove tray & fixed ring. Firmly bolt the filler cap back to the water block. Notice: You must horizontally place your system,with water block top side parallel to the ground for this operation.
  • Page 21 Step B-3 Coolant Refill Place tray U on VGA card in case the filler cap dose be bolted tightly. Warning: If the filler cap are not firmly bolt back, the coolant might leak and cause damage to system components. Such damage is not covered in the warranty.

This manual is also suitable for:

Lpwel240-hf
