Creator Compact

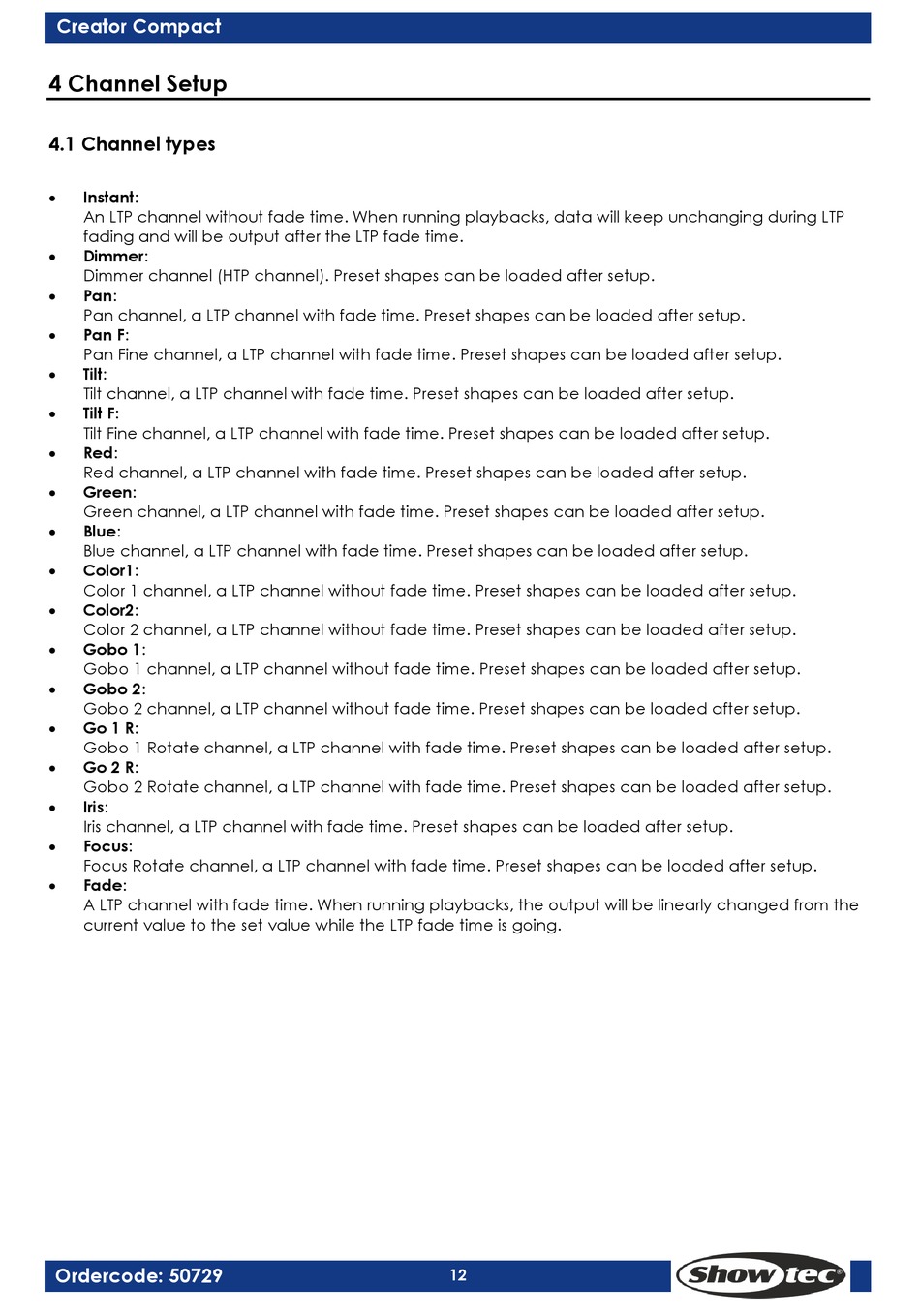

4 Channel Setup

4.1 Channel types

 Instant:
An LTP channel without fade time. When running playbacks, data will keep unchanging during LTP
fading and will be output after the LTP fade time.
 Dimmer:
Dimmer channel (HTP channel). Preset shapes can be loaded after setup.
 Pan:
Pan channel, a LTP channel with fade time. Preset shapes can be loaded after setup.
 Pan F:
Pan Fine channel, a LTP channel with fade time. Preset shapes can be loaded after setup.
 Tilt:
Tilt channel, a LTP channel with fade time. Preset shapes can be loaded after setup.
 Tilt F:
Tilt Fine channel, a LTP channel with fade time. Preset shapes can be loaded after setup.
 Red:
Red channel, a LTP channel with fade time. Preset shapes can be loaded after setup.
 Green:
Green channel, a LTP channel with fade time. Preset shapes can be loaded after setup.
 Blue:
Blue channel, a LTP channel with fade time. Preset shapes can be loaded after setup.
Color1:

Color 1 channel, a LTP channel without fade time. Preset shapes can be loaded after setup.
 Color2:
Color 2 channel, a LTP channel without fade time. Preset shapes can be loaded after setup.
 Gobo 1:
Gobo 1 channel, a LTP channel without fade time. Preset shapes can be loaded after setup.
 Gobo 2:
Gobo 2 channel, a LTP channel without fade time. Preset shapes can be loaded after setup.
 Go 1 R:
Gobo 1 Rotate channel, a LTP channel with fade time. Preset shapes can be loaded after setup.
 Go 2 R:
Gobo 2 Rotate channel, a LTP channel with fade time. Preset shapes can be loaded after setup.
 Iris:
Iris channel, a LTP channel with fade time. Preset shapes can be loaded after setup.
 Focus:
Focus Rotate channel, a LTP channel with fade time. Preset shapes can be loaded after setup.
 Fade:
A LTP channel with fade time. When running playbacks, the output will be linearly changed from the
current value to the set value while the LTP fade time is going.
