Creator Compact

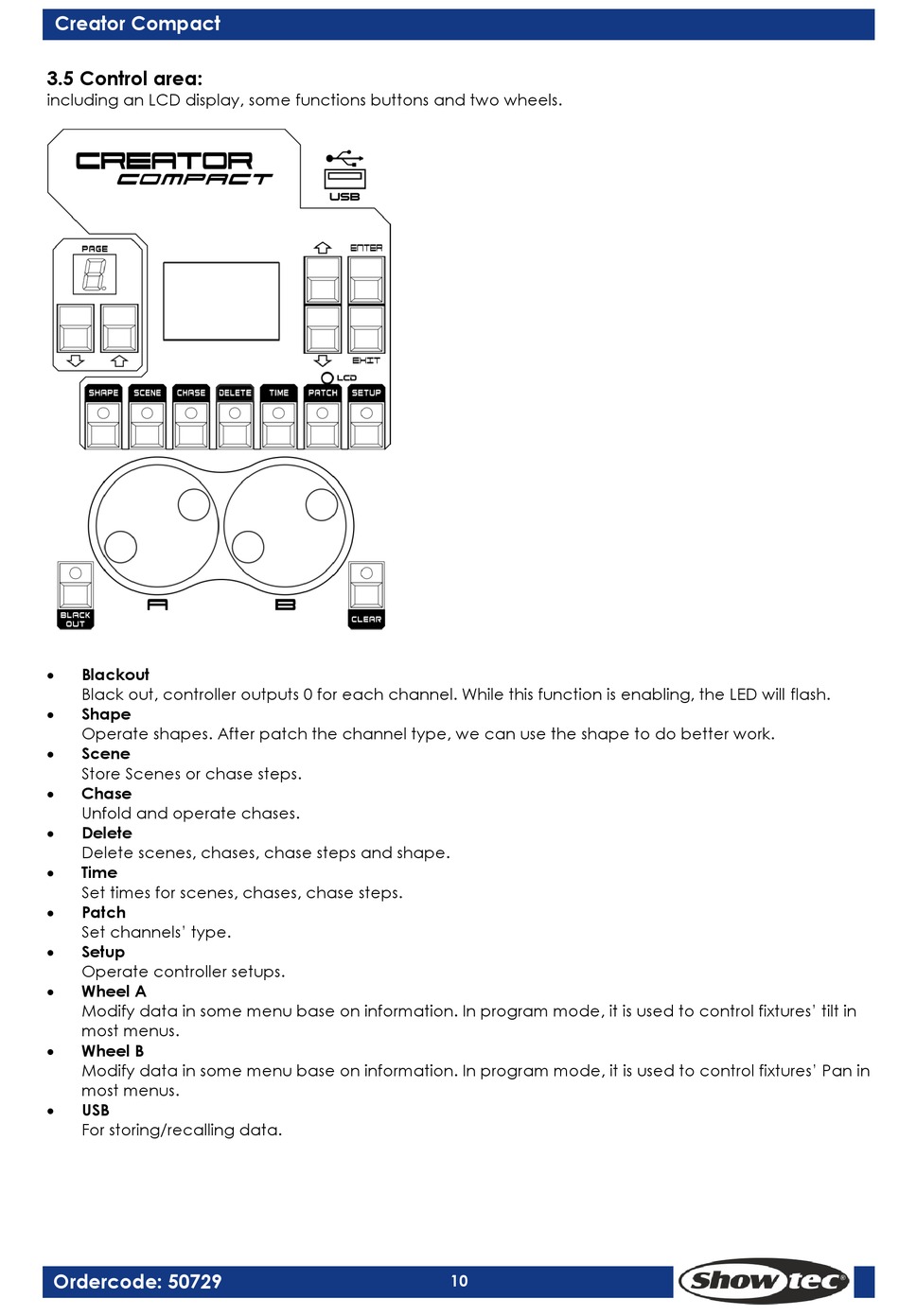

3.5 Control area:

including an LCD display, some functions buttons and two wheels.
 Blackout
Black out, controller outputs 0 for each channel. While this function is enabling, the LED will flash.
 Shape
Operate shapes. After patch the channel type, we can use the shape to do better work.
 Scene
Store Scenes or chase steps.
 Chase
Unfold and operate chases.
 Delete
Delete scenes, chases, chase steps and shape.
 Time
Set times for scenes, chases, chase steps.
 Patch
Set channels' type.
 Setup
Operate controller setups.
 Wheel A
Modify data in some menu base on information. In program mode, it is used to control fixtures' tilt in
most menus.
 Wheel B
Modify data in some menu base on information. In program mode, it is used to control fixtures' Pan in
most menus.
 USB
For storing/recalling data.
Ordercode: 50729
10
