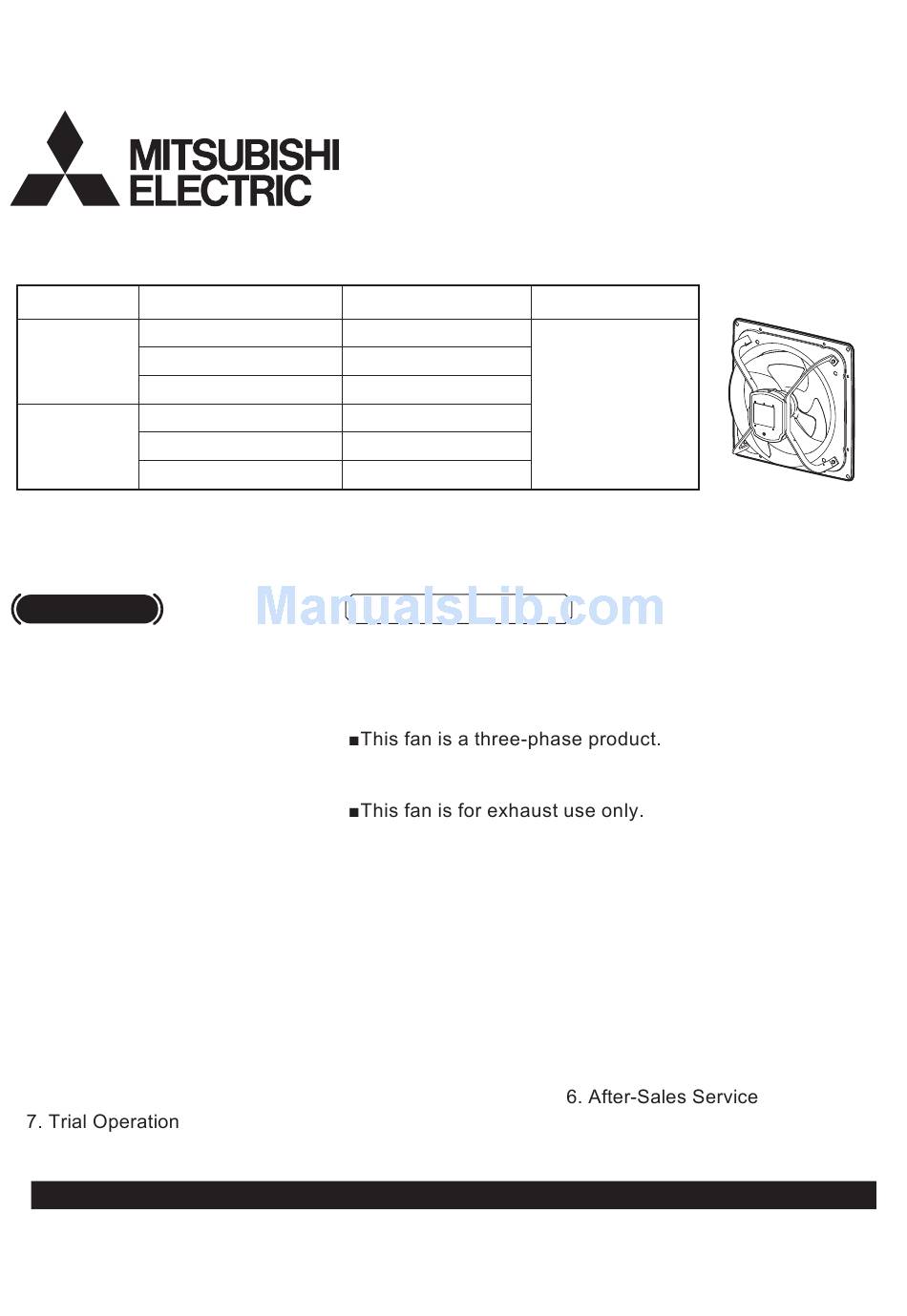

Mitsubishi Electric EF-35UDT-GL Installation Instructions Manual

Pressurized ventilators.
Hide thumbs

Advertisement

Pressurized ventilators (for device cooling)
200 V type
EF-40UET-GL
EF-50UFT-GL
EF-35UDT40A-GL
400 V type
EF-40UET40A-GL
EF-50UFT40A-GL
For customers
Please read this manual
carefully before use for proper
and safe use.
After reading, store the manual
in a handy location for easy
access.
Contents
Explanation of installation work (For electrical contractors)
1. Safety Precautions ....................................... 2
2. Usage and usage environment ........................ 3
3. Precautions before Installation ........................ 3
4. Outside Dimensions ....................................... 4
5. Installation Procedure .................................... 5
6. Electrical Work ............................................. 6
After you are finished with the installation work, be sure to give this manual to the customer.
Model
Blade diameter (cm) Indoor or outdoor
For electrical contractors
Be sure to read this manual before starting installation
work to ensure correct and safe installation. Dealers
and electrical contractors shall perform installation in
accordance with the standards of each country.
............................................. 6
35
40
50
35
40
50
Installation/Instruction Manual
Check the type of power supply before performing
the installation work.
Blades cannot be replaced and wire connections
cannot be changed.
1
Indoor
Handling Explanation
1. Safety Precautions .................. 7
2. How to Use the Fan .................. 8
3. Maintenance ........................... 8
7. Specifications ........................ 11
1504876HA7801
(
)
For customers
............... 11

Advertisement

   Related Manuals for Mitsubishi Electric EF-35UDT-GL

   Summary of Contents for Mitsubishi Electric EF-35UDT-GL

  • Page 1: Table Of Contents

    1504876HA7801 Pressurized ventilators (for device cooling) Model Blade diameter (cm) Indoor or outdoor EF-35UDT-GL 200 V type EF-40UET-GL EF-50UFT-GL Indoor EF-35UDT40A-GL 400 V type EF-40UET40A-GL EF-50UFT40A-GL Installation/Instruction Manual For customers For electrical contractors Please read this manual Be sure to read this manual before starting installation carefully before use for proper work to ensure correct and safe installation.

  • Page 2: Safety Precautions

    Explanation of installation work For electrical contractors 1. Safety Precautions The type and degree of danger resulting from incorrect handling are denoted by the following symbols. Incorrect handling could result in death or serious WARNING injury Do not install the fan in a place When using the fan to exhaust air from where explosive dust or gas is a room where a combustion appliance...

  • Page 3: Usage And Usage Environment

    2. Usage and usage environment Environment and restriction condition Protection Rating IPXX Class of protection Class Ⅰ Over voltage category Class Ⅱ Pollution degree Class Ⅱ Permissible Temp. in use - 15°C to 50°C (The unit must not be frozen.) Permissible Humidity in use 90% at 20°C Permissible Altitude in use...

  • Page 4: Outside Dimensions

    4. Outside Dimensions EF-35UDT-GL, EF-35UDT40A-GL Rotation Air flow Nameplate Power cable effective 4×φ12 mounting hole length 1 m Ground wire Vinyl cab tire cable Unit (mm) 4-core AWG18 EF-40UET-GL, EF-40UET40A-GL EF-50UFT-GL, EF-50UFT40A-GL Rotation Air flow Power cable effective Nameplate length 1 m 4×φ14 mounting hole...

  • Page 5: Installation Procedure

    5. Installation Procedure WARNING CAUTION Wear gloves when unpacking or installing. Because this fan is designed to be - Failure to heed this warning may result in injury installed in a higher location, install the caused by, for example, the edge of the plate. fan at least 2.3 m above the floor.

  • Page 6: Electrical Work

    Circuit breakers conforming to EN60947-2 must be used. Circuit breakers of which contact gaps are 3 mm or more Metal electrical Within must be used. We recommended a Mitsubishi Electric conduit box 0.8 m non-fuse circuit breaker (Model: NF32-SVF [Rated current: 15 A, number of poles: 3]).

  • Page 7

    Handling Explanation For customers 1. Safety Precautions The type and degree of danger resulting from incorrect handling are denoted by the following symbols. Incorrect handling Incorrect handling could result WARNING CAUTION could result in death in injury or property damage to or serious injury buildings and machinery Refrain from immersing in water...

  • Page 8: How To Use The Fan

    2. How to Use the Fan WARNING To operate ... To stop ... Do not insert fingers or objects into the fan during operation as doing so is dangerous Do not operate with wet hands 3. Maintenance WARNING CAUTION Be sure to turn off the distribution panel Wear gloves during cleaning and circuit breaker before proceeding with maintenance.

  • Page 9: Maintenance And Inspection

    4. Maintenance and Inspection WARNING CAUTION Be sure to turn OFF the distribution panel Be sure to wear gloves during circuit breaker before proceeding with maintenance and inspection maintenance and inspection. - Failure to heed this warning may result in - Failure to heed this warning may result in injury caused by, for example, the edge of electric shock or injury.

  • Page 10: Before Requesting Repair

    5. Before Requesting Repair After the fan used for a long time for safety, it is recommended that the fan be checked even if the fan has no trouble. If the following phenomenon is found and cannot be corrected after inspection by the customer, turn off the breaker and ask your dealer or an electrical contractor to inspect and repair the fan.

  • Page 11: Specifications

    Model diameter volume Consumption current (Hz) (dB) current (kg) (cm) EF-35UDT-GL 35 3000 45-45.5 0.85-1.0 130-145 0.98-1.06 5.37-6.01 EF-40UET-GL 40 4800 52-52 1.45-1.67 245-273 1.90-1.95 15.0-16.0 13.2 Three- EF-50UFT-GL 50 7200 52-52 2.00-2.25 370-400 2.75-2.65 20.1-21.3 19.5 phase EF-35UDT-GL 35 3600 49-49.5 0.8-0.85 180-185 1.15-1.14 4.96-5.28...

  • Page 12

    Model Name EF-35UDT-GL EF-40UET-GL EF-50UFT-GL EF-35UDT40A-GL EF-40UET40A-GL EF-50UFT40A-GL Item 28.5 30.5 31.8 28.7 30.6 31.8 2 Measurement Category Static 5 VSD 6 Year of Manufacture 2014 2014 2014 2014 2014 2014 Manufacturer MITSUBISHI ELECTRIC CORPORATION Information Tokyo Bldg., 2-7-3, Marunouchi, Chiyoda-ku, Tokyo 100-8310, Japan...
