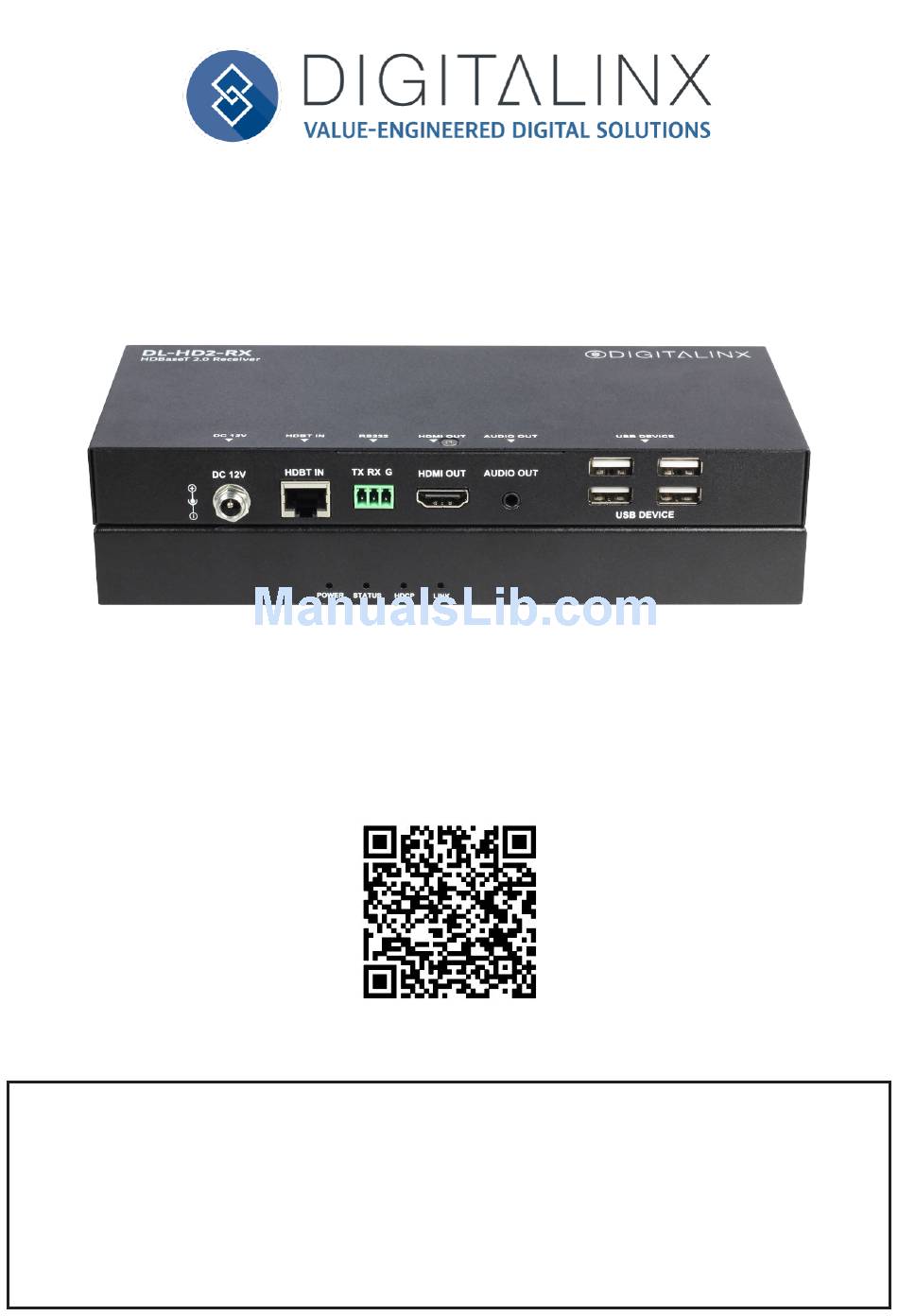

DL-HD2-RX Quick Install Guide
For complete owners manual go to www.libav.com or use a QR reader to access the
Important notice:
• Do not attempt to disassemble or alter the housing. There are no user-serviceable parts
inside the unit. Doing so will void your warranty.
• To minimize the possibility of equipment damage from electrostatic discharge (ESD), all source and destination
equipment must be powered off during installation.
• Do not connect the device to a telecommunication outlet wired to unrelated equipment. Doing so may
damage the unit or any connected equipment. Ensure all connected twisted pair cabling is straight-through (point-
to-point).
• Allow proper ventilation to reduce the risk of thermal failure.
This guide is for quick installation only.
manual via QR code below.
Scan QR Code with your Smart-phone or Tablet

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DL-HD2-RX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DigitaLinx DL-HD2-RX

Summary of Contents for DigitaLinx DL-HD2-RX

  • Page 1 DL-HD2-RX Quick Install Guide This guide is for quick installation only. For complete owners manual go to www.libav.com or use a QR reader to access the manual via QR code below. Scan QR Code with your Smart-phone or Tablet Important notice: •...

  • Page 3: Product Overview

    USB 2.0 High Speed and RS232 up to 100m / 330’. The receiver is also 4K compatible with a max resolution of 4K@60Hz / 4:2:0 8bit deep color. With an integrated PSE module built in, the DL-HD2-RX can power the DL-1H1V1U-WP-W via HDBaseT transmission.
  • Page 4 Receiver View 9 10 DC12V Power Input HDBaseT Input RS232 Pass Through HDMI Output 3.5mm Analog Audio Output • Only passes audio from the DL-1H1V1U-WP-W pass through audio input port USB Device Hub Power LED • When ON; The receiver is powered on •...
  • Page 5 4. Connect an HDMI cable between the display device and the DL-HD2-RX receiver. 5. Connect USB cables between the USB hub to USB devices (optional). 6. Connect an RS232 cable between the DL-HD2-RX and the RS232 port of a display device (optional).
  • Page 6 Cabling Requirements HDBaseT Cabling To ensure proper performance of the DL-HD2-RX, it is recommended that you use solid core, shielded Category 6 F/UTP cabling at a minimum. Category 5e F/UTP may perform well but may not support power over HDBaseT reliably.

  • Page 7: Technical Specifications

    Technical Specifications Video Video Inputs (1) HDBaseT Video Input Connector (1) RJ45 Output Video Signal HDMI Input / Output Resolutions Supported VESA: 1920 x 1200@60; 1680 x 1050@60; 1600 x 1200@60; 1600 x 900@60; 1440 x 990@60; 1366 x 768@60; 1360 x 768; 1280 x 1024@60; 1280 x 960@60;...
  • Page 8 Thank you for your purchase. For Technical Support please call our toll free number at 800-530-8898 or email us at supportlibav@libav.com www.intelix.com www.libav.com is a brand of: 11675 Ridgeline Drive Colorado Springs, Colorado 80921 USA Phone: 719-260-0061 Fax: 719-260-0075 Toll-Free: 800-530-8998...
