- Page 1 Installation, use and maintenance manual Radiators Line TS2000 Series Natural draught system gas convectors for heating of small size rooms, with no need of electrical power supply Natural gas/LPG fired...
-
Page 3: Table Of Contents
TABLE OF CONTENTS ..................3 SECTION 1 GENERAL INSTRUCTIONS PRODUCT DESCRIPTION AND MAIN OPERATING CHARACTERISTICS ....4 TECHNICAL DATA ......................5 ................ 6 SECTION 2 INSTALLATION OF THE HEATER SEQUENCE OF INSTALLATION ..................7 CONNECT THE CONVECTOR TO THE GAS NETWORK ..........9 2.2.1 NATURAL GAS FEEDING .................... - Page 4 L.P.G. / Natural Gas Convectors Series TS 2000 Installation, Maintenance and User Manual...
-
Page 5: General Instructions
L.P.G. / Natural Gas Convectors Series TS 2000 1 GENERAL INSTRUCTIONS This manual is an integral and essential part of this product and must be given to the end user. This unit (Direct-Vent Wall Gas Convector) must be exclusively used for the purpose it was intended. Any other use is to be considered improper and therefore dangerous. -
Page 6: Product Description And Main Operating Characteristics

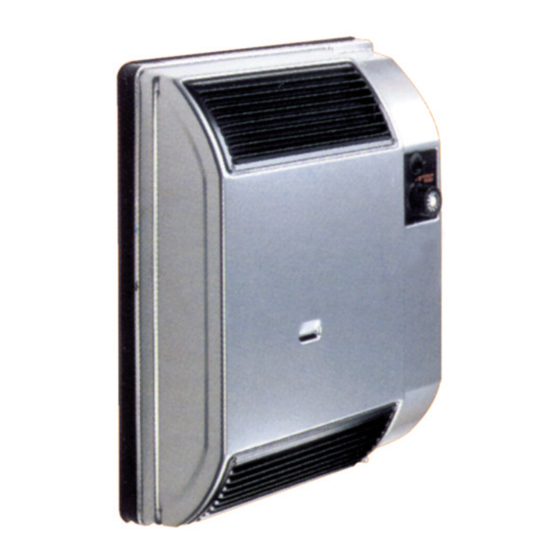

L.P.G. / Natural Gas Convectors Series TS 2000 1.1 PRODUCT DESCRIPTION AND MAIN OPERATING CHARACTERISTICS Il TS2000 gas heater is an independent heating product with an isolated combustion chamber and balanced flue natural draught. It can operate either with natural gas and liquid propane gas (category II , type C11, regulation EN 613). -
Page 7: Technical Data
L.P.G. / Natural Gas Convectors Series TS 2000 1.2 TECHNICAL DATA DESCRIPTION U.M. VALUE TYPE OF EQUIPMENT UNIT CATEGORY 2H3B/P MAXIMUM NOMINAL HEAT INPUT 1,97 1,69 MAXIMUM NOMINAL HEAT OUTPUT GAS CONSUMPTION NATURAL GAS (G20) 0,20 kg/h 0,15 (15°C - 1013 mbar) L.P.G.* (G30) EFFICIENCY (EFFICIENCY CLASS NO.1 ”ONLY HEATING”) BURNER PRESSURE NATURAL GAS (G20) -
Page 8: Installation Of The Heater
L.P.G. / Natural Gas Convectors Series TS 2000 2 INSTALLATION OF THE HEATER 48 cm Figura 1 – EXTERNAL DIMENSIONS AND INSTALLATION LIMITS The installation shall be made, according to the Manufacturer’s instructions, by qualified service engineers. An incorrect installation can cause damages to people, animals and property. In case of erroneous installation, the Manufacturer cannot be held responsible for such damages. -
Page 9: Sequence Of Installation
L.P.G. / Natural Gas Convectors Series TS 2000 2.1 SEQUENCE OF INSTALLATION Before unpacking the unit check that the external packaging is in good condition and that no damage has occurred during transportation, if so promptly contact your supplier. Then proceed like follows: 1. - Page 10 L.P.G. / Natural Gas Convectors Series TS 2000 9. Attach the heater the support bracket with the two screws provided. During this operation make all necessary adjustments to have a correct installation of the unit. 10. Mount the vent cap on the flue pipe and fix it with the three self–tapping screws provided. (see Figura 9). Ø...
-
Page 11: Connect The Convector To The Gas Network
L.P.G. / Natural Gas Convectors Series TS 2000 2.2 CONNECT THE CONVECTOR TO GAS NETWORK The wall gas convector TS2000 is supplied to operate with natural gas and is equipped with an LPG conversion kit. During the final quality tests in the factory each unit is set to operate with natural gas. The gas valve is produced by SIT model EUROSIT (see Figura 10). -
Page 12: Gas Feeding
L.P.G. / Natural Gas Convectors Series TS 2000 4. With the pressure gauge connected and the unit operating, slowly turn the knob to the position as close as possible to shutdown position. 5. Make sure that the value is 6.8 mbar. 6. -
Page 13: Use And Operation Of The Units
L.P.G. / Natural Gas Convectors Series TS 2000 3 USE AND OPERATION OF THE UNITS WARNING: FIRST UNIT START UP The first start up of the unit must be carried out by qualified service engineer. Before turning the unit on the qualified service engineer must check: •... -
Page 14: Maintenance And Service
L.P.G. / Natural Gas Convectors Series TS 2000 4 MAINTENANCE AND SERVICE After choosing your desired temperature, the TS 2000 operation becomes fully automatic and the set value is kept constant. WARNING In case of accidental or intentional shutdown of the unit, wait 3 minutes before restarting the unit, so that unburned gas can go out of the combustion chamber. -
Page 15: Maintainance
L.P.G. / Natural Gas Convectors Series TS 2000 CASE 2: Pilot does not light. a) there is air in the gas pipe: press and hold the control knob and continue pressing and releasing the piezo ignition button (with the control knob pressed down). b) Check the flame through the flame view that is located on the external casing. - Page 16 Permanent pilot flame power requirement Pilot flame power requirement (if 0,200 pilot applicable) Contact details Robur SPA Via Parigi 4/6 I-24040 Zingonia (BG) (*) NO = nitrogen oxides...
- Page 17 L.P.G. / Natural Gas Convectors Series TS 2000 With the aim of continuously improving the quality of our products, Robur reserves the right to vary the above instructions and drawings without any prior notice. ROBUR S.p.A. Via Parigi, 4/6 24040 Verdellino/Zingonia (Bergamo) Tel.
- Page 20 Robur is dedicated to dynamic progression in research, devepment and promotion of safe, environmentally-friendly, energy-efficiency products, through the commitment and caring of its employees and partners. Robur Mission Robur Spa advanced heating and cooling technologies Via Parigi 4/6 24040 Verdellino/Zingonia (Bg) Italy T +39 035 888111 F +39 035 4821334 www.robur.com...
