Gardenline GPCS46Z User Manual

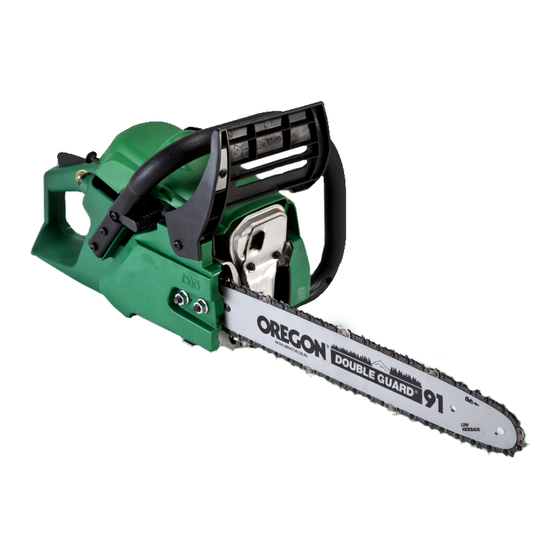

45cc petrol chainsaw
Hide thumbs
Table of Contents

Advertisement

Quick Links

45cc Petrol Chainsaw
After Sales Support
Now you have purchased a Gardenline®
product you can rest assured in the
knowledge that, as well as your
3 year parts and labour guarantee,
you have the added peace of
mind of dedicated helplines
and web support.
AFTER SALES SUPPORT-7 DAYS A WEEK
GB
IRE
(Charged at local rates)
MODEL: GPCS46Z, 06/14, 52579
User Guide
www.coreservice.co.uk
Please read this manual
thoroughly before use and
retain for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GPCS46Z and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gardenline GPCS46Z

Summary of Contents for Gardenline GPCS46Z

  • Page 1 45cc Petrol Chainsaw User Guide After Sales Support Now you have purchased a Gardenline® product you can rest assured in the knowledge that, as well as your 3 year parts and labour guarantee, you have the added peace of mind of dedicated helplines and web support.

  • Page 2: Table Of Contents

    Contents Page Welcome General Information Safety Instructions Assembly and Parts List Getting Started Features Operating Instructions Cutting Guidance Maintenance Frequently Asked Questions Useful Information Declaration of Conformity www.coreservice.co.uk AFTER SALES SUPPORT GPCS46Z, 06/14, 52579 019022605 0845 872 2740...

  • Page 3: Welcome

    This does not affect your statutory rights. However, be aware that the warranty will become null and void if the product is found to have been deliberately damaged, misused or disassembled. www.coreservice.co.uk AFTER SALES SUPPORT GPCS46Z, 06/14, 52579 019022605 0845 872 2740...

  • Page 4: General Information

    • Check to see that all items are included. • Inspect the equipment and accessories for transport damage. • Keep the packaging until the end of the warranty period. www.coreservice.co.uk AFTER SALES SUPPORT GPCS46Z, 06/14, 52579 019022605 0845 872 2740...
  • Page 5 Petrol and petrol vapour are extremely inflammable. The exhaust gas is poisonous and asphyxiating. If inhaled it may even be lethal. Do not operate the engine in enclosed or www.coreservice.co.uk AFTER SALES SUPPORT GPCS46Z, 06/14, 52579 019022605 0845 872 2740...

  • Page 6: Kickback Safety Precautions

    (as seen in Pic B) www.coreservice.co.uk AFTER SALES SUPPORT GPCS46Z, 06/14, 52579 019022605 0845 872 2740...
  • Page 7 To prevent pulling reactions on the chainsaw, place the wood you wish to cut flush against the claw stop (15). Use the claw stop as a pivot point during cutting. FIG 1 FIG 2 www.coreservice.co.uk AFTER SALES SUPPORT GPCS46Z, 06/14, 52579 019022605 0845 872 2740...

  • Page 8: Safety Instructions

    13. When cutting a limb that is under tension, be alert for spring back so that you will not be struck when the tension in the www.coreservice.co.uk AFTER SALES SUPPORT GPCS46Z, 06/14, 52579 019022605 0845 872 2740...
  • Page 9 Do not rely exclusively upon the safety devices built into your saw. As a chainsaw user, you should take several steps to keep your cutting jobs free from accident or injury. www.coreservice.co.uk AFTER SALES SUPPORT GPCS46Z, 06/14, 52579 019022605 0845 872 2740...
  • Page 10 CHAIN CATCHER: reduces the danger of injury in the event saw chain breaks or derails during operation. The chain catcher is designed to intercept a whipping chain. Note: Study your saw and be familiar with its parts. www.coreservice.co.uk AFTER SALES SUPPORT GPCS46Z, 06/14, 52579 019022605 0845 872 2740...

  • Page 11: Proper Use

    Environmental protection Dispose of soiled maintenance material and operating materials at the appropriate collection point. Recycle packaging material, metal and plastics. www.coreservice.co.uk AFTER SALES SUPPORT GPCS46Z, 06/14, 52579 019022605 0845 872 2740...

  • Page 12: Assembly And Parts List

    Important: Wear protective gloves at all times when handling the chain. Fit the chain bar (FIG 6) WARNING: The saw chain has very sharp edges. Use thick protective gloves for your personal safety. www.coreservice.co.uk AFTER SALES SUPPORT GPCS46Z, 06/14, 52579 019022605 0845 872 2740...
  • Page 13 Note: Make sure the tensioner pin is located in the assembly hole on the bar. Note: Pay attention to the correct direction of the saw chain. Compare with the picture near the chain sprocket and the picture on the bar. www.coreservice.co.uk AFTER SALES SUPPORT GPCS46Z, 06/14, 52579 019022605 0845 872 2740...
  • Page 14 FIG 8 shows the correct tension A (when cold) and tension B (when warm). FIG C shows a chain that is too loose. www.coreservice.co.uk AFTER SALES SUPPORT GPCS46Z, 06/14, 52579 019022605 0845 872 2740...

  • Page 15: Getting Started

    Fuel and lubrication Fuel Use regular grade unleaded fuel mixed in a ratio of 40:1 with 2-stroke engine oil (JASO FC GRADE OIL or ISO EGC GRADE) for best results. www.coreservice.co.uk AFTER SALES SUPPORT GPCS46Z, 06/14, 52579 019022605 0845 872 2740...
  • Page 16 Note: most stores will sell acceptable oil under the name “Chainsaw chain oil” Note: Do not use wasted or regenerated oil that can cause damage to the oil pump. www.coreservice.co.uk AFTER SALES SUPPORT GPCS46Z, 06/14, 52579 019022605 0845 872 2740...
  • Page 17 3. Be certain the chain brake is engaged before starting the unit Once you have filled the fuel and oil reservior, tighten each filler cap securely by hand. Do not use any tools to do so. www.coreservice.co.uk AFTER SALES SUPPORT GPCS46Z, 06/14, 52579 019022605 0845 872 2740...

  • Page 18: Features

    Mixing bottle included • Easy pull start system This Gardenline chainsaw is fitted with an "easy pull start system". This cannot be started in the same manner as most other pull start petrol machinery, the operator should pull the start handle with...

  • Page 19: Operating Instructions

    Make sure the cutting blade is pointing away from your body at all times, the chain may rotate upon ignition. www.coreservice.co.uk AFTER SALES SUPPORT GPCS46Z, 06/14, 52579 019022605 0845 872 2740...
  • Page 20 Be sure to refill the oil tank every time when refuelling the saw. Chain oil Chain oil flow increase adjusting decrease FIG 16 FIG 17 www.coreservice.co.uk AFTER SALES SUPPORT GPCS46Z, 06/14, 52579 019022605 0845 872 2740...
  • Page 21 When the brake is activated whilst cutting, immediately release it having first released the throttle lever and set the chainsaw to "STOP"." www.coreservice.co.uk AFTER SALES SUPPORT GPCS46Z, 06/14, 52579 019022605 0845 872 2740...
  • Page 22 Note: When you have finished using the saw, always relieve the tank pressure by loosening, then retightening, the chain oil and fuel mix caps. Allow the engine to cool before storing. switch FIG 19 www.coreservice.co.uk AFTER SALES SUPPORT GPCS46Z, 06/14, 52579 019022605 0845 872 2740...

  • Page 23: Cutting Guidance

    Felling a tree (FIG 20) WARNING: You should have received training from a suitable person before attempting to fell a tree." 1. Decide the felling direction considering the wind, lean of the www.coreservice.co.uk AFTER SALES SUPPORT GPCS46Z, 06/14, 52579 019022605 0845 872 2740...
  • Page 24 3. Follow the instructions in “Safety Instructions” to avoid kickback of the saw. Before starting work, check the direction of the bending force www.coreservice.co.uk AFTER SALES SUPPORT GPCS46Z, 06/14, 52579 019022605 0845 872 2740...
  • Page 25 Do not use an unstable foothold or ladder. Do not overreach. Do not cut above shoulder height. Always use both hands to grip the saw. FIG 22 FIG 23 FIG 24 FIG 25 www.coreservice.co.uk AFTER SALES SUPPORT GPCS46Z, 06/14, 52579 019022605 0845 872 2740...

  • Page 26: Maintenance

    Silencer. If any defects are found, make sure to have them repaired before operating the unit again. FIG 26 www.coreservice.co.uk AFTER SALES SUPPORT GPCS46Z, 06/14, 52579 019022605 0845 872 2740...
  • Page 27 Note: Be sure to unblock the air intake hole. 1. Start assembly 2. Fan cover 3. Fan 4. Cylinder fins 5. Engine cover FIG 29 www.coreservice.co.uk AFTER SALES SUPPORT GPCS46Z, 06/14, 52579 019022605 0845 872 2740...
  • Page 28 If there is obvious wear replace it with a new one. Never fit a new chain on a worn sprocket, or a worn chain on a new sprocket. 0.6-0.7 mm FIG 30 FIG 31 www.coreservice.co.uk AFTER SALES SUPPORT GPCS46Z, 06/14, 52579 019022605 0845 872 2740...
  • Page 29 Note: Chain type: 91PJ File size: 5/32 in (4.0 mm) Place your file on the cutter and push straight forward. Position the file position as illustrated. (FIG 32) FIG 32 www.coreservice.co.uk AFTER SALES SUPPORT GPCS46Z, 06/14, 52579 019022605 0845 872 2740...
  • Page 30 Warning: Be sure to round off the front edge to reduce the chance of kickback or tie-strap breakage. Make sure every cutter has the same length and angle as illustrated. (FIG 34) FIG 34 www.coreservice.co.uk AFTER SALES SUPPORT GPCS46Z, 06/14, 52579 019022605 0845 872 2740...
  • Page 31 If a gap is observed between them, the rail is normal. Otherwise, the bar rail is worn. Such a bar needs to be corrected or replaced. FIG 35 www.coreservice.co.uk AFTER SALES SUPPORT GPCS46Z, 06/14, 52579 019022605 0845 872 2740...
  • Page 32 Starting Starting Procedure Procedure Procedure If the item still fails to start and if after trying all of the above procedures please call the help line for further assistance. www.coreservice.co.uk AFTER SALES SUPPORT GPCS46Z, 06/14, 52579 019022605 0845 872 2740...

  • Page 33: Frequently Asked Questions

    Oil lubrication Clean the oil lubrication hole (the cutter rail opening blocked in the cutter bar (FIG5/Item A) and chain get hot) Clean the groove in the cutter bar www.coreservice.co.uk AFTER SALES SUPPORT GPCS46Z, 06/14, 52579 019022605 0845 872 2740...

  • Page 34: Useful Information

    Vibration ahv (front handle) max. 3.04 m/s K=1.5 m/s Vibration ahv (rear handle) max. 5.10 m/s K=1.5 m/s Chain type Oregon PJ057X Bar type Oregon 160SDEA041 Spark plug L8RTF www.coreservice.co.uk AFTER SALES SUPPORT GPCS46Z, 06/14, 52579 019022605 0845 872 2740...
  • Page 35 The equipment and its accessories are made of various types of material, such as metal and plastic. Defective components must be disposed of as special waste. Ask your dealer or your local council. www.coreservice.co.uk AFTER SALES SUPPORT GPCS46Z, 06/14, 52579 019022605 0845 872 2740...

  • Page 36: Declaration Of Conformity

    SUMEC UK Co. Ltd Date: 2012-05-16 Unit A&B, Escrick Business Park, Signature: Escrick, York YO19 6FD Name: Cai Ji Bo Doc 20120014/GT General Manager SUMEC Hardware & Tools Co.,Ltd. www.coreservice.co.uk AFTER SALES SUPPORT GPCS46Z, 06/14, 52579 019022605 0845 872 2740...
  • Page 37 GPCS46Z 06/2014...
