Summary of Contents for General IRT657

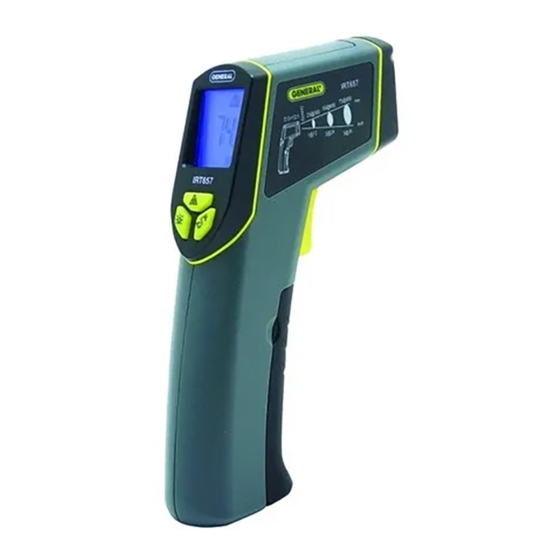

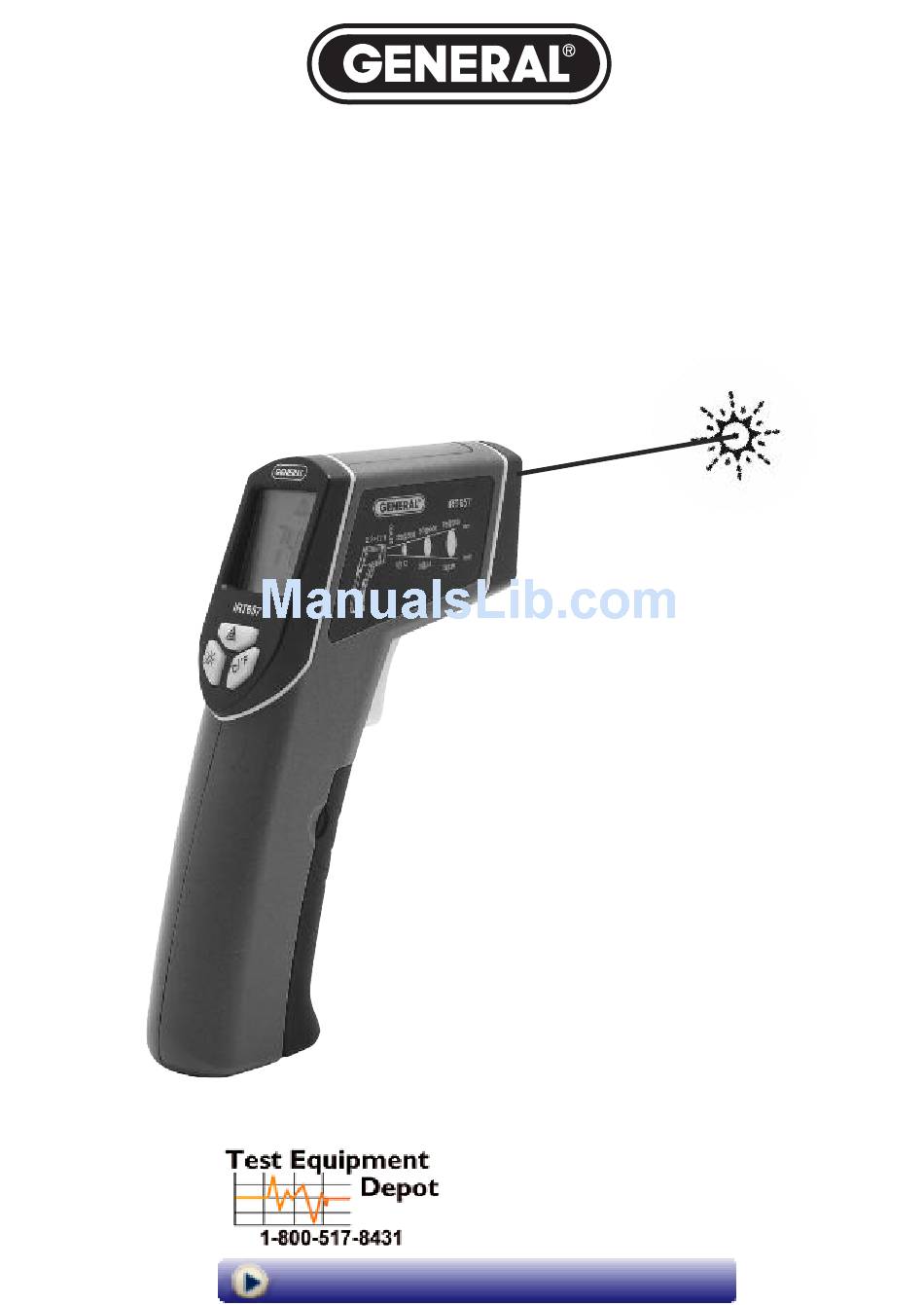

- Page 1 12:1 WIDE-RANGE INFRARED THERMOMETER WITH STAR BURST LASER TARGETING USER’S MANUAL Star Burst Laser Targeting IRT657 99 Washington Street Melrose, MA 02176 Phone 781-665-1400 Toll Free 1-800-517-8431 Visit us at www.TestEquipmentDepot.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction ......3 – 4 Key Features ....... . 5 What’s in the Box . -
Page 3: Introduction
This makes it possible to safely measure the temperature of very hot or cold surfaces, hard-to- reach objects and toxic substances. The IRT657 is especially suitable for the following four classes of applications: ELECTRICAL • Checking the temperature of high-voltage equipment and transformers from a safe distance •... - Page 4 • Measuring the temperature of oil, batteries, A/C systems and tire treads The IRT657 has a backlit LCD and is powered by a single 9V battery. Thanks to the instrument’s auto power off feature, the battery may last up to 50 hours when the backlight and laser pointer are turned off.
-
Page 5: Key Features
PRODUCT OVERVIEW Figure 1 shows all of the controls, indicators and physical features of the IRT657. Figure 2 shows most of the icons and text that may appear on the display. Familiarize yourself with the locations and functions of these controls and the meanings of these display... - Page 6 Fig 1. The IRT657’s controls, indicators and physical features A. Laser Pointer Button (backlight on or off) B. Infrared Sensor/Lens H. °C/°F Button (temperature C. Measurement Trigger unit selection) D. Battery Compartment I. Laser Identification/ E. Backlit Liquid-Crystal Certification/Warning/Safety Display Labels (on left side);...
-
Page 7: Setup Instructions
Open the battery compartment (callout D of Fig. 1) by pulling its cover away from the grip. Then plug the 9V battery that comes with the IRT657 into the wired socket inside the compartment. The terminals of the battery and the socket mate in only one way, with the smaller male terminal plugging into the larger female terminal. -
Page 8: Operating Instructions
The IRT657 will not make accurate measurements if there is glass or plastic between the thermometer and the target. To change the IRT657’s default measurement unit from degrees Celsius (°C) to degrees Fahrenheit (°F), press the °C/°F... -
Page 9: How To Make Accurate Ir Measurements
Fig. 3. The IRT657’s thermometer’s field of view HOW TO MAKE ACCURATE IR MEASUREMENTS The IRT657 has a distance-to-spot (D:S) ratio of 12:1. This means that the target area (spot) whose infrared radiation (temperature) is being measured increases in diameter by 1 inch for every 12 inches you move away from the target. - Page 10 Tavg = (Tmotor + Tbackground) ÷ 2 Solving for Tavg, we get (200 + 75) ÷ 2 or 137.5°F., which is what the IRT657 would display. In other words, trying to measure the temperature of the motor from 24 ft. away introduced an error of (200-137.5) ÷...
- Page 11 For best results, the targeted area (spot) should fall within the target’s boundaries, as in Fig. 3 wall Fig. 4. Measuring a motor’s temperature from the wrong (top) and right (bottom) distance...
-
Page 12: Specifications
SPECIFICATIONS Measurement Range -40° to 1076°F (-40° to 580°C) Distance-To-Spot (D:S) Ratio 12:1 Measurement Accuracy ±3°F (2°C) or ±2% of reading (whichever is greater) for readings above 32°F (0°C); within ±5°F (3°C) or ±2% of reading (whichever is greater) for readings below 32°F (0°C) Measurement Repeatability 1% of reading or 1°... -
Page 13: Maintenance And Troubleshooting Tips
30 minutes before measurements are within specifications. The infrared lens on the front of the unit is the IRT657’s most sensitive component. To clean the lens, first use compressed air to blow off loose particles and then brush any remaining debris away with a camel’s hair brush. -
Page 14: Warranty Information
The warranty period begins on the date of purchase. You are encouraged to register your product online. General will extend your warranty an additional 60 days if you register at www.generaltools.com/Product Registry. This warranty does not apply to damages that General determines to be from an attempted repair by non-authorized personnel or misuse, alterations, normal wear and tear, or accidental damage. -
Page 15: Return For Repair Policy
RETURN FOR REPAIR POLICY Every effort has been made to provide you with a reliable product of superior quality. However, in the event your instrument requires repair, please contact our Customer Service to obtain an RGA (Return Goods Authorization) number before forwarding the unit via prepaid freight to the attention of our Service Center at this address: Remember to include a copy of your proof of purchase, your... -
Page 16: Manual Del Usuario
NOTES ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________... - Page 17 NOTES ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________...
- Page 18 Melrose, MA 02176 Phone 781-665-1400 Toll Free 1-800-517-8431 Visit us at www.TestEquipmentDepot.com Specifications subject to change without notice ©2015 GENERAL TOOLS & INSTRUMENTS NOTICE - WE ARE NOT RESPONSIBLE FOR TYPOGRAPHICAL ERRORS. MAN# IRT657 5/26/15 General Tools & Instruments GeneralToolsNYC...
