Toro PowerMax 38614 Setup Instructions

PowerMax
Model No. 38614

Setup

Important: Refer to your Operator's Manual for
safety, maintenance, and warranty information.
1. Position the upper handle over the lower handle.
Note: Do not remove the rubber band until you
have installed the handle.
Important: Route the 2 cables attached to
the Quick Stick inside the upper handle legs
(Figure 1). Do not pinch the cables.

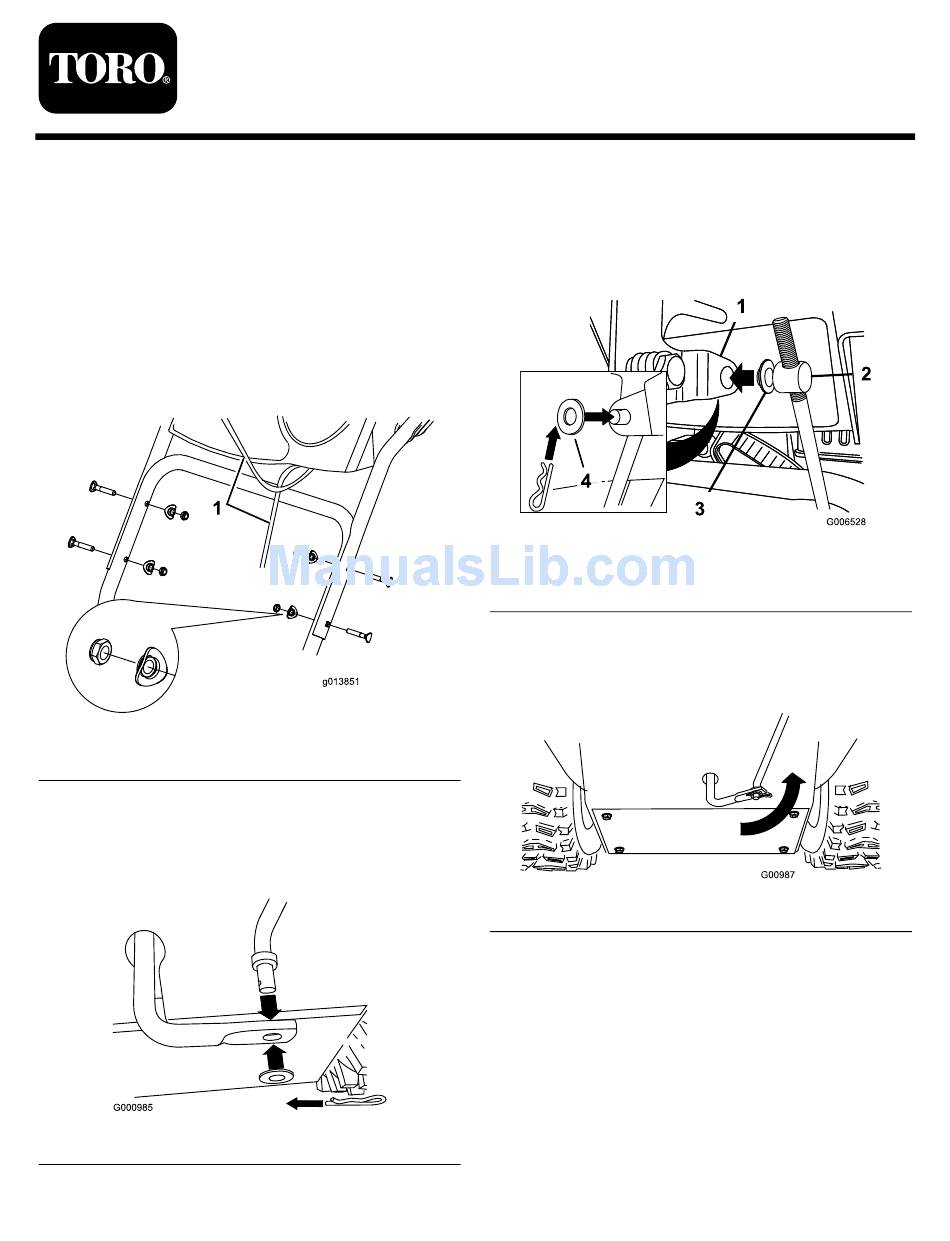

Figure 1
1. Cables
2. Secure the upper handle (Figure 1).
3. Remove the hairpin cotter and washer from the end
of the speed control rod and insert the end into the
lower link arm (Figure 2).
Figure 2
© 2011—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
® Snowthrower
4. Secure the rod end with the washer and hairpin
cotter.
5. Remove the hairpin cotter and the outer washer
from the trunnion on the upper end of the speed
control rod (Figure 3).
1. Speed selector lever
2. Trunnion
Note: Do not remove the inner washer (Figure 3).
6. Shift the speed selector lever into Position R2.
7. Rotate the lower link arm up (Figure 4).
8. Lift up the speed control rod and insert the trunnion
in the hole in the speed selector lever located under
the control panel (Figure 3).
Note: If the trunnion does not fit into the hole
when you lift up the speed control rod, rotate the
trunnion up or down on the speed control rod until
it fits.
9. Secure the trunnion and upper end of the speed
control rod with the outer washer and a hairpin
cotter.
Register at www.Toro.com.
Form No. 3366-129 Rev B
Setup Instructions
Figure 3
3. Inner washer
4. Outer washer
Figure 4
Original Instructions (EN)
Printed in the USA
All Rights Reserved
