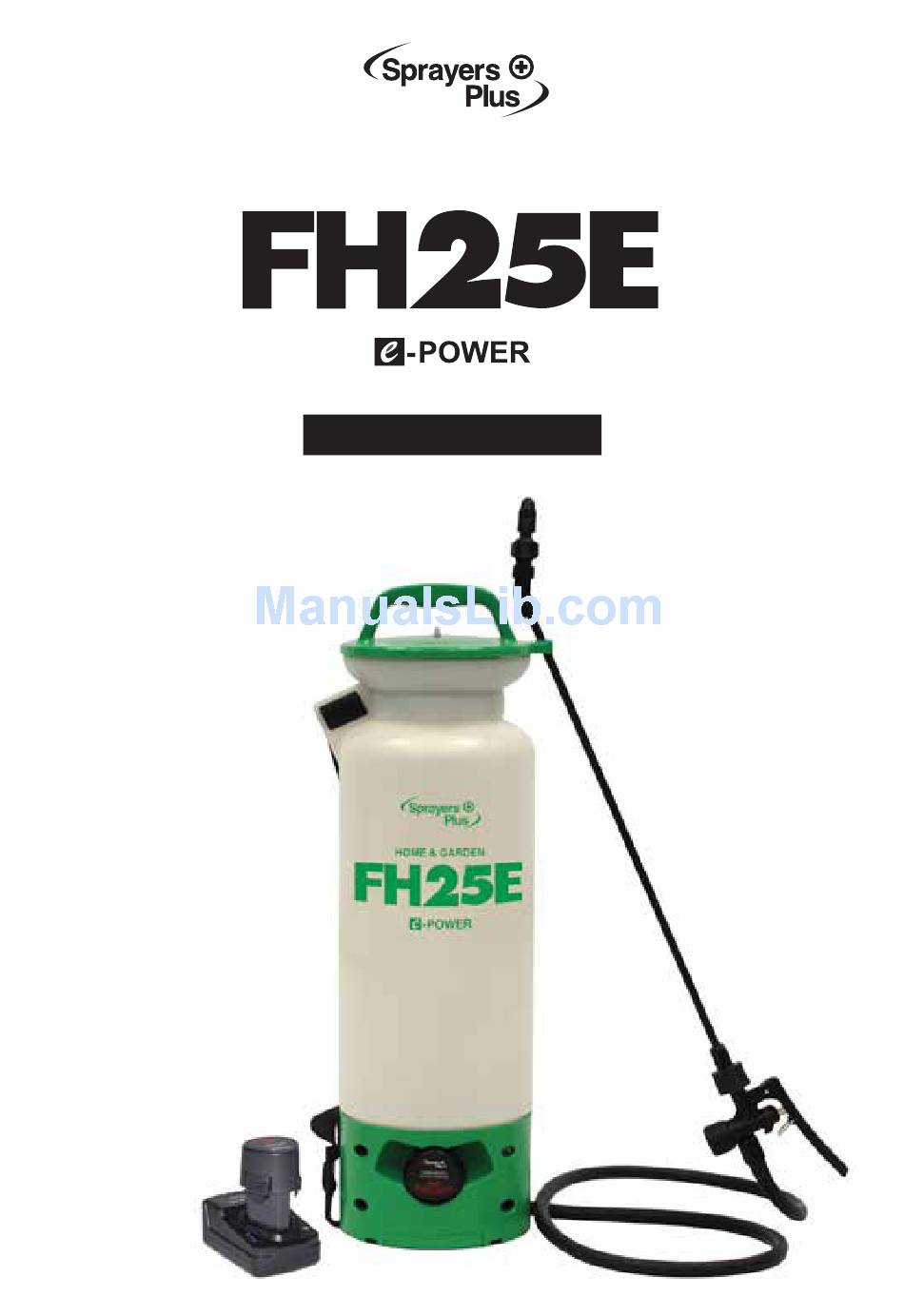

  • Page 1 HOME & GARDEN Instruction Manual...
  • Page 2 Index P.1 ....Index P.2 ....Unpacking P.3 ....1. Introduction 2.
  • Page 3 Unpacking 1) Sprayer 2) Wand 3) 12V Charger & Transformer 4) Nozzles 5) Silicone Grease 6) Black Screen Filter...

  • Page 4: Speci Cations

    Seals & O-Rings High Grade Proprietary Material Handling the brass parts of this product will expose you to a chemical known to the state of California to cause birth defects or Sprayers Plus™ with Spray Gun other reproductive harm. Lock Pin Wash hands after handling.

  • Page 5: Charging Procedure

    4. Charging Procedure WARNING: Shock hazard. Do not allow any liquid to get inside charger. Sprayers Plus chargers are designed to charge Sprayers Plus 12V battery Never attempt to open the battery pack for any reason. If the packs only.

  • Page 6: Important Safety Instructions For Battery Chargers

    4.2 INSTALLING AND REMOVING THE 4.3 IMPORTANT SAFETY INSTRUCTIONS BATTERY PACK FROM THE SPRAYER FOR BATTERY CHARGERS WARNING: WARNING: Make sure switch is in the off position. • Shock hazard. Do not allow any liquid to get inside charger. • Do not attempt to charge the battery pack with any chargers other than To install battery pack: the ones included in this manual.
  • Page 7 40/2.8 1000 20ACID, 20ACT, 35ACT, BL20, PS20, Yellow Fan 90º YT10, YT20, YT30, FH10, FH20, FH30 24/1.6 BL25E, FH25E, YT25E 100, 101, 103, 201, 202, 301, 302, 401, 402, 403, 20C, 35C, 10ACID, 40/2.8 1150 20ACID, 20ACT, 35ACT, BL20, PS20, YT10, YT20, YT30, FH10, FH20, FH30 Blue Fan 110º...

  • Page 8: Parts Breakdown

    8. Parts Breakdown K7044 K1026 K4002 K5008 K7045 K7118 K7046 K7048 K7053 K1027 K7047 K7053 K7050 K7051 K7055 K7046 K1027 K7062 K7053 K1027 K4025 K3019 K4047 K3007 K4039 K4025 K4041 K3014 K8002 K3027 K7057 K7089...

  • Page 9: Part List

    PART LIST K1026 LID SET --- GREEN K1027 STRUCTURE SET --- GREEN K3007 PLASTIC SPINDLE SET (VITON) K3014 PLUG SET K3019 FIBERGLASS WAND - 20" K3027 NOZZLE HOLDER K4002 CHECK VALVE K4025 WASHERS SET FOR SPRAY GUN K4039 O-RING, & WASHER SET FOR SPINDLE K4041 O-RING FOR ADJUSTABLE NOZZLE K4047...

  • Page 10: Important Return Safety Instructions

    1 (one) year from the date of sale to the original purchaser. 10.2 Warranty Registration Please visit: www.sprayers-plus.com/warranty Sprayers Plus shall honor this warranty, free of charge, if any part or component shows defect in MATERIAL OR WORKMANSHIP, after nal analysis at the factory.

  • Page 11: Troubleshooting

    Charge the battery until indication Battery is not fully charged light on the charger turns green Using third-party charger Use Sprayers Plus certi ed charger New Battery Using third-party pump Use Sprayers Plus certi ed pump Battery duration time is...
