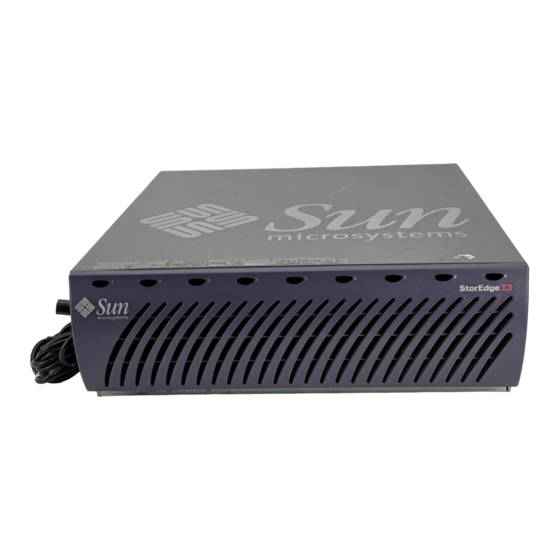

Sun StorEdge
T3 Disk Tray
™
Installation, Operation, and
Service Manual
Sun Microsystems, Inc.
901 San Antonio Road
Palo Alto, CA 94303
U.S.A. 650-960-1300
Part No. 806-1062-11
July
2000, Revision A
Send comments about this document to: docfeedback@sun.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the StorEdge T3 and is the answer not in the manual?

Questions and answers

Related Manuals for Sun Microsystems StorEdge T3

Summary of Contents for Sun Microsystems StorEdge T3

  • Page 1 Sun StorEdge T3 Disk Tray ™ Installation, Operation, and Service Manual Sun Microsystems, Inc. 901 San Antonio Road Palo Alto, CA 94303 U.S.A. 650-960-1300 Part No. 806-1062-11 July 2000, Revision A Send comments about this document to: docfeedback@sun.com...
  • Page 2 Sun, Sun Microsystems, the Sun logo, AnswerBook2, docs.sun.com, SunSolve, JumpStart, StorTools, Sun StorEdge, and Solaris are trademarks, registered trademarks, or service marks of Sun Microsystems, Inc. in the U.S. and other countries. All SPARC trademarks are used under license and are trademarks or registered trademarks of SPARC International, Inc. in the U.S. and other countries. Products bearing SPARC trademarks are based upon an architecture developed by Sun Microsystems, Inc.

  • Page 3: Regulatory Compliance Statements

    FCC radio frequency emission limits. Networking connections can be made using unshielded twisted-pair (UTP) cables. Modifications: Any modifications made to this device that are not approved by Sun Microsystems, Inc. may void the authority granted to the user by the FCC to operate this equipment.
  • Page 4 ICES-003 Class B Notice - Avis NMB-003, Classe B This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Sun StorEdge T3 Disk Tray Installation, Operation, and Service Manual • July 2000...

  • Page 5: Bsmi Class A Notice

    BSMI Class A Notice The following statement is applicable to products shipped to Taiwan and marked as Class A on the product compliance label. Regulatory Compliance Statements...
  • Page 6 Sun StorEdge T3 Disk Tray Installation, Operation, and Service Manual • July 2000...

  • Page 7: Safety Agency Compliance Statements

    Modifications to Equipment power cords into a grounded power outlet that is Do not make mechanical or electrical modifications to the nearby the system and is readily accessible. equipment. Sun Microsystems is not responsible for regulatory compliance of a modified Sun product.
  • Page 8 Aus – Unterbricht die Wechselstromzufuhr zum herein may result in hazardous radiation exposure. Gerät. Wartezustand (Stand-by-Position) - Der Ein-/ Wartezustand-Schalter steht auf Wartezustand. Änderungen an Sun-Geräten. viii Sun StorEdge T3 Disk Tray Installation, Operation, and Service Manual • July 2000...
  • Page 9 Nehmen Sie keine mechanischen oder elektrischen Die folgende Warnung gilt nur für Geräte mit Wartezustand- Änderungen an den Geräten vor. Sun Microsystems Netzschalter: übernimmt bei einem Sun-Produkt, das geändert wurde, keine Verantwortung für die Einhaltung behördlicher Achtung – Die Ein/Aus-Schalter dieses Geräts Vorschriften.
  • Page 10 La température des surfaces est élevée et leur électrique du local, veuillez vous adresser au contact peut provoquer des blessures corporelles. directeur de l’exploitation ou à un électricien qualifié. Sun StorEdge T3 Disk Tray Installation, Operation, and Service Manual • July 2000...
  • Page 11 Ne remplacez cette batterie que par une descargas eléctricas o daños en el equipo. batterie Sun Microsystems du même type. Ne la démontez pas et n’essayez pas de la recharger hors du système. Ne faites pas brûler la batterie mais mettez-la au rebut conformément aux...
  • Page 12 Precaución – De acuerdo con la norma DIN 45 635, sección 1000, se admite un nivel de presión acústica para puestos de trabajo máximo de 70Db(A). Sun StorEdge T3 Disk Tray Installation, Operation, and Service Manual • July 2000...
  • Page 13 Batería de litio GOST-R Certification Mark Precaución – En las placas de control del sistema hay una batería de litio insertada en el reloj de tiempo real, tipo SGS Núm. MK48T59Y, MK48TXXB-XX, MK48T18-XXXPCZ, M48T59W-XXXPCZ, M4T28- XXYYSHZ o MK48T08. El usuario no debe reemplazar las baterías por sí...
  • Page 14 Sun StorEdge T3 Disk Tray Installation, Operation, and Service Manual • July 2000...

  • Page 15: Table Of Contents

    Contents Preface xxi Sun StorEdge T3 Disk Tray Overview 1-1 Product Description 1-2 Disk Tray Features 1-3 Components 1-4 1.3.1 Disk Drive 1-4 1.3.2 Controller Card 1-5 1.3.3 Interconnect Card 1-7 1.3.4 Power and Cooling Unit 1-8 Architecture 1-9 Supported Configurations 1-10...
  • Page 16 3.2.4 Disabling and Reconstructing the Drive 3-8 Monitoring the Disk Tray 3-9 3.3.1 Sun StorEdge Component Manager 3-9 3.3.2 SNMP Notification 3-9 3.3.3 syslog Error Reports 3-10 Sun StorEdge T3 Disk Tray Installation, Operation, and Service Manual • July 2000...
  • Page 17 Troubleshooting 4-1 Analyzing the Problem 4-1 4.1.1 Host-Generated Message 4-1 4.1.2 Sun StorEdge Component Manager 4-2 4.1.3 Telnet Session 4-2 4.1.4 Disk Tray LEDs 4-3 Channel Connection Failures 4-9 FRU Failures 4-9 Service 5-1 Preparing for Service 5-2 Removing and Replacing Components 5-2 5.2.1 Disk Drives 5-3 5.2.2...
  • Page 18 Connectors A-4 A.5.1 10BASE-T Connector A-4 A.5.2 RS-232 Serial Port Connector A-5 B. Illustrated Parts B-1 Glossary G-1 Index I-1 xviii Sun StorEdge T3 Disk Tray Installation, Operation, and Service Manual • July 2000...
  • Page 19 Figures Sun StorEdge T3 Disk Tray 1-2 FIGURE 1-1 Disk Drives (Front View) 1-5 FIGURE 1-2 Controller Card (Rear View) 1-6 FIGURE 1-3 Interconnect Cards (Rear View) 1-7 FIGURE 1-4 Power and Cooling Units (Rear View) 1-8 FIGURE 1-5 Single Controller Unit Configuration 1-10...
  • Page 20 FIGURE B-3 Power and Cooling Unit B-3 FIGURE B-4 Cables and Cords B-3 FIGURE B-5 Media Interface Adapter (MIA) B-3 FIGURE B-6 Front Panel B-4 FIGURE B-7 Sun StorEdge T3 Disk Tray Installation, Operation, and Service Manual • July 2000...

  • Page 21: Preface

    Before You Read This Book Make sure you have prepared for the installation by reviewing the Sun StorEdge T3 Site Preparation and Planning Guide and the Sun StorEdge T3 Configuration Guide, available from your Sun™ representative. Work with your Sun representative to determine if you require any external hardware or software products for using this device.

  • Page 22: Glossary

    For further information, see one or more of the following: AnswerBook2™ online documentation for the Solaris™ software environment Other software documentation that you received with your system xxii Sun StorEdge T3 Disk Tray Installation, Operation, and Service Manual • July 2000...

  • Page 23: Typographic Conventions

    Shell Prompts Shell Prompts TABLE P-2 Shell Prompt C shell machine_name% C shell superuser machine_name# Bourne shell and Korn shell Bourne shell and Korn shell superuser Sun StorEdge T3 disk tray t300:/: Preface xxiii...

  • Page 24: Related Documentation

    Fatbrain.com, an Internet professional bookstore, stocks select product documentation from Sun Microsystems, Inc. For a list of documents and how to order them, visit the Sun Documentation Center on Fatbrain.com at: http://www1.fatbrain.com/documentation/sun xxiv Sun StorEdge T3 Disk Tray Installation, Operation, and Service Manual • July 2000...
  • Page 25 Accessing Sun Documentation Online The docs.sun.com web site enables you to access Sun technical documentation on the Web. You can browse the docs.sun.com archive or search for a specific book title or subject at: http://docs.sun.com Sun Welcomes Your Comments We are interested in improving our documentation and welcome your comments and suggestions.
  • Page 26 Sun StorEdge T3 Disk Tray Installation, Operation, and Service Manual • July 2000...

  • Page 27: Sun Storedge T3 Disk Tray Overview

    C H A P T E R Sun StorEdge T3 Disk Tray Overview This chapter provides a high-level introduction to the Sun StorEdge T3 disk tray product line and is organized as follows: “Product Description” on page 1-2 “Disk Tray Features” on page 1-3 “Components”...

  • Page 28: Product Description

    The Sun StorEdge T3 disk tray expansion unit contains the same components as the Sun StorEdge T3 disk tray controller unit except for the internal RAID controller.

  • Page 29: Disk Tray Features

    Disk Tray Features The Sun StorEdge T3 disk tray provides high reliability while being simple to administer and maintain. It features a design that supports high availability, high performance, configuration flexibility, and scalability of bandwidth, capacity, and input/output operations per second (IOPS). These key features are summarized in the following table depicting a disk tray with nine 18-Gbyte drives.

  • Page 30: Components

    Components The Sun StorEdge T3 disk tray contains four basic components that can be easily replaced: Disk drive Controller card Interconnect card Power and cooling unit All components plug into a centerplane; there is no internal cabling. For information on how to remove and replace these components see the service procedures in Chapter 5.

  • Page 31: Controller Card

    Fibre Channel interface, an Ethernet 10BASE-T host interface, an RS-232 serial port for special service procedures, and 256 Mbytes of high-speed synchronous- dynamic-random-access-memory (SDRAM) data cache. Chapter 5 provides information on how to service the controller card. Chapter 1 Sun StorEdge T3 Disk Tray Overview...

  • Page 32: Figure 1-3 Controller Card (Rear View)

    Controller card Controller Card (Rear View) FIGURE 1-3 Sun StorEdge T3 Disk Tray Installation, Operation, and Service Manual • July 2000...

  • Page 33: Interconnect Card

    Interconnect Card The interconnect card contains the interface circuitry and two connectors for interconnecting multiple Sun StorEdge T3 disk trays. It provides loop-switch capability and contains an environmental monitor for the disk tray. Each disk tray contains two interconnect cards for redundancy. For information on how to service the interconnect card, see Chapter 5.

  • Page 34: Power And Cooling Unit

    UPS battery maintenance. Power and cooling unit (2) Power and cooling unit (1) Power and Cooling Units (Rear View) FIGURE 1-5 Sun StorEdge T3 Disk Tray Installation, Operation, and Service Manual • July 2000...

  • Page 35: Architecture

    Architecture The Sun StorEdge T3 disk tray is uniquely designed to be a modular, scalable, reliable, serviceable, high-performance building block with a flexible configuration. The design allows for multiple disk trays to be combined in various ways to provide complete storage solutions that are optimized for all applications—from transaction processing to decision support and high-performance computing, from workgroup environments to data centers.

  • Page 36: Supported Configurations

    RAS of single controller units, plus redundant hardware RAID controllers with mirrored caches, and redundant host channels for continuous data availability for host applications. 1-10 Sun StorEdge T3 Disk Tray Installation, Operation, and Service Manual • July 2000...

  • Page 37: Figure 1-7 Partner Group Configuration

    10BASE-T Interconnect Application host cables FC-AL connection 10BASE-T FC-AL connection Ethernet port Management host Partner Group Configuration FIGURE 1-7 Chapter 1 Sun StorEdge T3 Disk Tray Overview 1-11...
  • Page 38 1-12 Sun StorEdge T3 Disk Tray Installation, Operation, and Service Manual • July 2000...

  • Page 39: Installation

    C H A P T E R Installation This chapter describes how to install the Sun StorEdge T3 disk tray in either a single or partner-group (dual controller unit) configuration. The sections that follow describe specific steps of the installation. Follow these directions in the order provided to ensure a successful installation.

  • Page 40: Preparing For The Installation

    Note – The Sun StorEdge T3 disk tray requires a 10BASE-T Ethernet connection for each controller unit. The 10BASE-T cable is not included with the ship kit and must be purchased separately.

  • Page 41: Inspecting The Disk Tray

    A disk tray can weigh up to 67 pounds (30 kg). 1. Unpack the disk tray. You should have the following items: Sun StorEdge T3 disk tray One media interface adapter (MIA) One 5m fiber-optic cable Two power cords The MIA and cables are illustrated in Appendix B and in Section 2.5 “Connecting the...

  • Page 42: Figure 2-1 Removing The Front Panel

    This tab contains the disk tray serial number and media access control (MAC) address. Record this information; you will need the MAC address for the installation. Pull-out tab Serial Number and MAC Address on Pull-out Tab FIGURE 2-2 Sun StorEdge T3 Disk Tray Installation, Operation, and Service Manual • July 2000...

  • Page 43: Editing The Host Files

    6. Make sure that all the disk drives, the power and cooling units, the interconnect cards, and the controller card (if present) are firmly seated in the unit. 7. Replace the front cover. Caution – You must replace the front panel for the disk tray to meet regulatory emissions requirements.
  • Page 44 5. Start the RARP daemon in the Solaris software environment by typing: # /usr/sbin/in.rarpd -a & The IP address will automatically download to the disk tray after you install the disk tray and power on. Sun StorEdge T3 Disk Tray Installation, Operation, and Service Manual • July 2000...

  • Page 45: Installing The Disk Tray

    Note – In some cases, it is possible that the disk tray could time out before it receives the RARP request through an Ethernet switch. If this happens, the disk tray cannot receive the assigned IP address. If the disk tray should time out before receiving the RARP request, it could be due to an improper spanning-tree setting of the Ethernet switch.

  • Page 46: Cabinet Installation

    Caution – Use two people to lift the disk tray to avoid injury. It can weigh up to 67 pounds (30 kg). 1. Place the Sun StorEdge T3 disk tray horizontally in the designated location. Caution – Do not place the disk tray in a vertical position.

  • Page 47: Figure 2-3 Removing The Feet

    Note – Retrieve the placement information for the disk tray before beginning the installation. Caution – This procedure requires two people to lift and move the disk tray. Use care to avoid injury. A disk tray with a baseplate attached can weigh up to 87 pounds (39 kg).

  • Page 48: Figure 2-4 Baseplate For Sun Storedge Expansion Cabinet

    Follow the instructions on preparing for service in your server cabinet or expansion cabinet documentation. Be sure to: Extend the stabilizer legs Remove or open the top front panel Remove or open the vented rear panel 2-10 Sun StorEdge T3 Disk Tray Installation, Operation, and Service Manual • July 2000...

  • Page 49: Figure 2-5 Positioning A Single-Tray Rail And Threading Screws

    2.4.2.3 Installing the Rails Two types of rail kits available for installing the Sun StorEdge T3 disk tray in a Sun StorEdge expansion cabinet: A single-tray rail kit (fits one disk tray only) A dual-tray rail kit (fits two disk trays) Both kits are installed in the same manner with minor differences that are detailed in the illustrations that follow.

  • Page 50: Figure 2-6 Positioning A Dual-Tray Rail And Threading Screws

    Positioning a Dual-Tray Rail and Threading Screws FIGURE 2-6 2-12 Sun StorEdge T3 Disk Tray Installation, Operation, and Service Manual • July 2000...
  • Page 51 Note – If the length of your cabinet from front to back is longer than the rails, you will need to use the extension plates that are packaged with the kit. 3. Install the screws in the bottom rail holes. If you are installing a single-tray rail kit, install two screws in the bottom holes.

  • Page 52: Figure 2-7 Aligning The Disk Tray Chassis And Baseplate With The Side Rails

    Aligning the Disk Tray Chassis and Baseplate With the Side Rails FIGURE 2-7 3. Rest the disk tray chassis on the side rails and then slide the chassis in. 2-14 Sun StorEdge T3 Disk Tray Installation, Operation, and Service Manual • July 2000...

  • Page 53: Figure 2-8 Securing The Disk Tray Chassis

    4. Secure the disk tray into the rails by threading the two screws into the baseplate at the back of the disk tray chassis. Securing the Disk Tray Chassis FIGURE 2-8 Chapter 2 Installation 2-15...

  • Page 54: Figure 2-9 Installing A Second Disk Tray Into A Dual-Tray Rail

    The person at the front of the cabinet should be ready to take hold and stabilize the tray once it starts to move forward. Use two people to fully pull it out of the rails. 2-16 Sun StorEdge T3 Disk Tray Installation, Operation, and Service Manual • July 2000...

  • Page 55: Connecting The Cables

    Interconnect cables, one pair of cables per partner group Note – Your Sun StorEdge T3 disk tray packaging might not have included interconnect cables. If you want install a partner group configuration and do not have interconnect cables, contact your Sun service representative.

  • Page 56: Figure 2-10 Cables And Adapters

    2. Attach an MIA to the other end of the fiber-optic cable ( FIGURE 2-11 3. Connect the MIA to the FC-AL connector on the controller board at the back of the master unit. Tighten the retaining screws. 2-18 Sun StorEdge T3 Disk Tray Installation, Operation, and Service Manual • July 2000...

  • Page 57: Figure 2-11 Connecting The Fiber-Optic Cable And Mia To The Fc-Al Connector

    FC-AL connector Fiber-optic cable Connecting the Fiber-Optic Cable and MIA to the FC-AL Connector FIGURE 2-11 4. Partner group only: Repeat Step 1 through Step 3 to connect a second fiber-optic cable to a separate host adapter and to the alternate master unit. Chapter 2 Installation 2-19...

  • Page 58: Figure 2-12 Connecting The 10Base-T Cable

    10BASE-T cable. Connect this cable to a hub or router on the same network as the master unit. 2-20 Sun StorEdge T3 Disk Tray Installation, Operation, and Service Manual • July 2000...
  • Page 59 8. Attach the two power cords to the two power and cooling units on the back of the master unit ( FIGURE 2-13 AC LED AC LED Power button Power button PS LED PS LED AC power cords Connecting the Power Cords FIGURE 2-13 9.

  • Page 60: Figure 2-14 Connecting The Interconnect Cables

    Tighten the retaining screws. The remaining connectors are reserved for expansion units. Alternate master controller unit Master controller unit Connecting the Interconnect Cables FIGURE 2-14 2-22 Sun StorEdge T3 Disk Tray Installation, Operation, and Service Manual • July 2000...
  • Page 61 A fully cabled partner group is shown in FIGURE 2-15 Alternate master controller unit Master controller unit Fully Cabled Partner Group FIGURE 2-15 Note – The cabling for a single disk tray configuration would appear similar to the disk trays shown in , except there would not be interconnect cables FIGURE 2-15 attached to the interconnect cards.

  • Page 62: Powering On And Verifying The Hardware Configuration

    Note – The batteries in the power and cooling units recharge after you power on the unit. While the batteries are recharging, write-behind cache is disabled. 2-24 Sun StorEdge T3 Disk Tray Installation, Operation, and Service Manual • July 2000...

  • Page 63: Establishing A Network Connection

    Note – The telnet session will verify that your network connection is good. If you cannot connect through the telnet session, see the troubleshooting information in the Sun StorEdge T3 Disk Tray Administrator’s Guide or the Sun StorEdge Component Manager User’s Guide to analyze the problem.
  • Page 64 The netmask specifies the network mask used to implement IP subnetting. t300:/:<4>set netmask 255.255.255.0 6. Set the host name using the set hostname command. t300:/:<5>set hostname hostname 2-26 Sun StorEdge T3 Disk Tray Installation, Operation, and Service Manual • July 2000...
  • Page 65 7. Use the tzset command to set the time zone and confirm the setting. The time zone is off-set from Greenwich mean time (GMT), also known as Universal time coordinated (UTC). The numerical value used with the tzset command is the difference in the number of hours between your time zone and the GMT, based on international standardized time-zone designations.

  • Page 66: Verifying The Firmware Level And Configuration

    Copyright (C) 1997-2000 Sun Microsystems, Inc. All Rights Reserved. The ver command displays the header information. In the example above, the controller firmware is listed as Release 1.13 2-28 Sun StorEdge T3 Disk Tray Installation, Operation, and Service Manual • July 2000...
  • Page 67 4. Type fru list to display the firmware for the disk drives, interconnect card, and EPROM level. For example (partner group configuration): t300:/:<6>fru list TYPE VENDOR MODEL REVISION SERIAL ------ ----------------- ----------- ----------- ------------- -------- u1ctr controller card SCI-SJ 375-0084-01- 0210 000980 u2ctr controller card...
  • Page 68 AVAILABLE DISK SELECTIONS: 0. c0t0d0 <SUN4.2G cyl 3880 alt 2 hd 16 sec 135> /pci@1f,4000/scsi@3/sd@0,0 1. c2t1d0 <SUN-T300-0113 cyl 34145 alt 2 hd 64 sec 128> /pci@6,2000/SUNW,ifp@1/ssd@w50020f23000002ba,0 2-30 Sun StorEdge T3 Disk Tray Installation, Operation, and Service Manual • July 2000...
  • Page 69 8. Type sys stat to view the controller status. An example of sys stat output for a single controller unit: t300:/:<9>sys stat Unit State Role Partner ----- --------- ------ ------- ONLINE Master An example of sys stat output for a partner group: t300:/:<10>sys stat Unit State...
  • Page 70 Proceed to Section 2.9 “Installing the Administration Tools” on page 2-33 to continue with the installation. 2-32 Sun StorEdge T3 Disk Tray Installation, Operation, and Service Manual • July 2000...

  • Page 71: Installing The Administration Tools

    Sun StorEdge T3 Disk Tray Administrator’s Guide. The Sun StorEdge T3 disk tray has been set up with a default RAID 5 configuration. To view the configuration, use the vol list command while in a telnet session with the disk tray.

  • Page 72: Figure 2-16 Disk Drive Physical Numbering

    Note – If you are creating new volumes or changing the volume configuration, you must first manually rewrite the label of the previous volume using the autoconfigure option of the format(1M) utility. Refer to the Sun StorEdge T3 Disk Tray Administrator’s Guide for more information on this procedure.

  • Page 73: Single Controller Unit Configuration

    2.10.1 Single Controller Unit Configuration To display and mount the default volume of a single controller unit: 1. On the disk tray, type vol stat to check the status of the volume. t300:/:<2> vol stat u1d1 u1d2 u1d3 u1d4 u1d5 u1d6 u1d7 u1d8...
  • Page 74 AVAILABLE DISK SELECTIONS: 0. c0t0d0 <SUN4.2G cyl 3880 alt 2 hd 16 sec 135> /pci@1f,4000/scsi@3/sd@0,0 1. c2t1d0 <SUN-T300-0113 cyl 34145 alt 2 hd 64 sec 128> /pci@6,2000/SUNW,ifp@1/ssd@w50020f23000002ba,0 2-36 Sun StorEdge T3 Disk Tray Installation, Operation, and Service Manual • July 2000...

  • Page 75: Partner Group Configuration

    Proceed to Section 2.12 “Connecting the Host System” on page 2-40 to continue the installation. 2.10.2 Partner Group Configuration To define and mount the default volumes of a partner group, you must first make sure the volume on the master unit is mounted and then add a volume on the alternate master as follows: 1.
  • Page 76 Only one volume can be initialized at a time 7. Use the vol mount command to mount the volume on the alternate master. t300:/:<7>vol mount v1 2-38 Sun StorEdge T3 Disk Tray Installation, Operation, and Service Manual • July 2000...
  • Page 77 8. Type vol list to confirm that you created the volume correctly. t300 <8>vol list volume capacity raid data standby 143.2 GB u1d1-9 none 143.2 GB u2d1-9 none 9. Use the luxadm(1M) command to recognize the new volume. The luxadm(1M) command probes for new devices. Refer to the luxadm(1M) man page for more information on this command.

  • Page 78: Changing The Default Configuration

    2.11 Changing the Default Configuration The default configuration for the Sun StorEdge T3 disk tray is a RAID 5 volume. If you want to change the default configuration, do so now before continuing the installation process. Configuration options for the disk tray are discussed in Chapter 3.

  • Page 79: Verifying The Data Host Connection

    Note – If you are creating new volumes or changing the volume configuration, you must first manually rewrite the label of the previous volume using the autoconfigure option of the format(1M) utility. Refer to the Sun StorEdge T3 Disk Tray Administrator’s Guide for more information on this procedure.

  • Page 80: Creating Soft Partitions On The Data Host

    Note – There are two commands available to determine the drive volume capacity of the Sun StorEdge T3 disk tray. Within the disk tray, the vol command is used to display the raw volume capacity. Within the Solaris environment, the format(1M) utility (among others) can be used to display the capacity of a newly created volume.

  • Page 81: Establishing Alternate Pathing On The Host

    Note – This completes the installation process for a single disk tray installation. If you are configuring a partner group, you must continue to the next section. 2.12.4 Establishing Alternate Pathing on the Host This task applies only when two controller units are configured as a partner group. In a partner group, controller caches are mirrored so that if one controller fails, no data is lost.
  • Page 82 : 64k cache : auto mirror : auto mp_support : rw rd_ahead : on recon_rate : med sys memsize : 32 MBytes cache memsize : 256 MBytes 2-44 Sun StorEdge T3 Disk Tray Installation, Operation, and Service Manual • July 2000...
  • Page 83 This means that if you are using the format(1M) utility in the Solaris environment, you will see two paths for each volume. This completes the installation process for a partner-group configuration. For information on available Sun StorEdge T3 disk tray settings and monitoring options, see Chapter 3. Chapter 2...
  • Page 84 2-46 Sun StorEdge T3 Disk Tray Installation, Operation, and Service Manual • July 2000...

  • Page 85: Operation

    C H A P T E R Operation This chapter describes the basic operations that can be performed on a Sun StorEdge T3 disk tray: “Powering Off and On” on page 3-1 “Reconfiguring the Disk Tray Settings” on page 3-3 “Monitoring the Disk Tray”...

  • Page 86: Powering On

    FIGURE 3-1 3.1.2 Powering On When powering on a configuration, always power on the Sun StorEdge T3 disk trays before booting the host server. Power on the master unit by pressing the power button on each power and cooling unit.

  • Page 87: Reconfiguring The Disk Tray Settings

    Reconfiguring the Disk Tray Settings The disk tray has been set with the following default configuration: RAID 5 volume; no hot spare Cache mode set to auto Autodisable and autoreconstruction of disk drives These default settings and other possible configurations are described in the following sections.

  • Page 88: Raid Levels

    The RAID level determines how the controller reads and writes data and parity on the drives. The Sun StorEdge T3 disk tray can be configured with RAID level 0, RAID level 1 (1+0), or RAID level 5. The default configuration is a RAID level 5.
  • Page 89 3.2.2.1 RAID 0 Data blocks in a RAID 0 volume are striped across all the drives in the volume in order. There is no parity data, so RAID 0 uses the full capacity of the drives. There is no redundancy, however; if a single drive fails, all data on the volume is lost. shows the data layout in a RAID 0 volume.

  • Page 90: Cache Modes

    Four cache modes are supported: auto, write-behind, write-through, and none. The default mode for the Sun StorEdge T3 disk tray is set to auto. In the auto cache mode, if the disk tray has full redundancy available, then the caching mode is write-behind.
  • Page 91 The write-through cache mode forces write-through caching to always be used. Read caching is also performed in this mode. The none cache mode forces no write caching and no read caching. Caution – If there is a failure of one of the redundant components, the cache mode is set to write-through.

  • Page 92: Disabling And Reconstructing The Drive

    If the failed drive data has been reconstructed onto a hot spare, once the reconstruction has completed, a copy-back operation begins where the hot spare data is copied to the newly replaced drive. Sun StorEdge T3 Disk Tray Installation, Operation, and Service Manual • July 2000...

  • Page 93: Monitoring The Disk Tray

    Monitoring the Disk Tray You can monitor the Sun StorEdge T3 disk tray remotely by using any of the following tools: Sun StorEdge Component Manager software Simple Network Management Protocol (SNMP) notification syslog error reports 3.3.1 Sun StorEdge Component Manager...

  • Page 94: Syslog Error Reports

    An SNMP MIB file is provided with the Sun StorEdge T3 disk tray for use with SNMP-based applications. The MIB file is located in the following directory on the disk tray: /web/snmp/t300.mib To use this file, ftp this MIB file from the disk tray to your SNMP management host and refer to your specific SNMP management documentation for correct MIB file installation procedures.

  • Page 95: Troubleshooting

    Troubleshooting This chapter describes how to approach troubleshooting the Sun StorEdge T3 disk tray. Use the information in this chapter along with the Sun StorEdge T3 Disk Tray Administrator’s Guide or Sun StorEdge Component Manager User’s Guide to determine the service required. This chapter is organized as follows: “Analyzing the Problem”...

  • Page 96: Sun Storedge Component Manager

    To see details of problems internal to the Sun StorEdge T3 disk tray, use the tool(s) that you installed on your management console. In a partner-group configuration where alternate pathing failover has been established, the failure of a channel path or disk tray controller causes the host to redirect I/O from the failed channel to the second FC-AL connection.

  • Page 97: Disk Tray Leds

    Even though the LED indicates a FRU failure, you should always verify the FRU status using either the CLI or Component Manager before replacing the component. Refer to the Sun StorEdge T3 Disk Tray Administrator’s Guide or the Sun StorEdge Component Manager User’s Guide for instructions.

  • Page 98: Figure 4-1 Disk Drive Leds (Viewed Through Front Cover)

    • Drive failure; OK to replace drive Note—Verify a drive failure using the CLI or Component Manager. Note – See Chapter 5 for instructions on how to service a failed disk drive. Sun StorEdge T3 Disk Tray Installation, Operation, and Service Manual • July 2000...

  • Page 99: Figure 4-2 Power And Cooling Unit Leds

    4.1.4.2 Power and Cooling Unit LEDs Each power and cooling unit has an AC LED and a power-supply (PS) LED. lists the possible conditions of these LEDs and describes each state. TABLE 4-2 AC LED PS LED Power and Cooling Unit LEDs FIGURE 4-2 Power and Cooling Unit LED Descriptions TABLE 4-2...
  • Page 100 Note—Verify a power and cooling unit failure using the CLI or Component Manager. Note – See Chapter 5 for instructions on how to service a failed power and cooling unit. Sun StorEdge T3 Disk Tray Installation, Operation, and Service Manual • July 2000...

  • Page 101: Figure B-3 Interconnect Card

    4.1.4.3 Interconnect Card LEDs Each interconnect card has a status LED for each interconnect cable. lists TABLE 4-3 the possible interconnect card status LED states with descriptions of each state. Interconnect card 1 LED 1 LED 2 LED 1 LED 2 Interconnect card 2 Interconnect Card LEDs FIGURE 4-3...

  • Page 102: Figure 4-4 Controller Card Leds

    • Controller failure; OK to replace controller Note—Verify a controller card failure using the CLI or Component Manager. Note – See Chapter 5 for instructions on how to service a failed controller card. Sun StorEdge T3 Disk Tray Installation, Operation, and Service Manual • July 2000...

  • Page 103: Channel Connection Failures

    (CLI) or the health-check mechanism in Component Manager. To check for a FRU failure using the CLI, refer to the Sun StorEdge T3 Disk Tray Administrator’s Guide. To use Component Manager to diagnose a failed FRU, refer to the Sun StorEdge Component Manager User’s Guide.
  • Page 104 4-10 Sun StorEdge T3 Disk Tray Installation, Operation, and Service Manual • July 2000...

  • Page 105: Service

    Upgrading Interconnect Card Firmware Upgrading Disk Drive Firmware Caution – Any FRU that is removed must be replaced within 30 minutes or the Sun StorEdge T3 disk tray and all attached disk trays will automatically shut down and power off.

  • Page 106: Preparing For Service

    “Disk Drives” on page 5-3 “Power and Cooling Units” on page 5-7 “UPS Battery” on page 5-10 “Interconnect Cards” on page 5-11 “Controller Card” on page 5-14 “Chassis” on page 5-16 Sun StorEdge T3 Disk Tray Installation, Operation, and Service Manual • July 2000...

  • Page 107: Disk Drives

    Note – Even if the LED indicates a drive failure, you should always verify the FRU status using either the CLI or Component Manager before replacing the drive. Refer to the Sun StorEdge T3 Disk Tray Administrator’s Guide or the Sun StorEdge Component Manager User’s Guide for instructions.

  • Page 108: Figure 5-1 Removing The Front Panel

    3. Locate the disk drive that needs to be replaced. Disk drives are numbered from 1 to 9 starting on the left side of the disk tray. Disk 1 Disk 9 Disk Drive Numbering FIGURE 5-2 Sun StorEdge T3 Disk Tray Installation, Operation, and Service Manual • July 2000...

  • Page 109: Figure 5-3 Releasing The Latch Handle

    6. Remove the disk drive from the disk tray ( FIGURE 5-4 Caution – Any disk drive that is removed must be replaced within 30 minutes or the Sun StorEdge T3 disk tray and all attached disk trays will automatically shut down and power off. Chapter 5...

  • Page 110: Figure 5-4 Removing A Disk Drive

    12. Using Component Manager or the CLI, verify that there are no disk drive errors. Refer to the Sun StorEdge Component Manager User’s Guide or the Sun StorEdge T3 Disk Tray Administrator’s Guide for more information. Sun StorEdge T3 Disk Tray Installation, Operation, and Service Manual • July 2000...

  • Page 111: Power And Cooling Units

    5.2.2 Power and Cooling Units The power and cooling unit has two active power sources: standby and primary power. Standby power, which is used to power the microcontroller on the interconnect card, is activated when AC power is present. Primary power, which is used to power all remaining circuits and disk drives, is activated when AC or battery power is present and the power switch is on.

  • Page 112: Index

    Note – Even if the LED indicates a power and cooling unit failure, you should always verify the FRU status using either the CLI or Component Manager before replacing the unit. Refer to the Sun StorEdge T3 Disk Tray Administrator’s Guide or Sun StorEdge Component Manager User’s Guide for more information.
  • Page 113 Caution – Any power and cooling unit that is removed must be replaced within 30 minutes or the Sun StorEdge T3 disk tray and all attached disk trays will automatically shut down and power off. Latch handle Latch handle Removing the Power and Cooling Unit FIGURE 5-6 6.

  • Page 114: Ups Battery

    5.2.3.1 Battery Maintenance The Sun StorEdge T3 disk tray has been factory configured to initiate a battery refresh cycle that occurs automatically once every 14 days. This battery refresh cycle involves a discharge of the battery followed by a recharge. The refresh cycle is sequential;...

  • Page 115: Interconnect Cards

    You can view information on the battery, including the life span, using the CLI or Component Manager. Refer to the Sun StorEdge T3 Disk Tray Administrator’s Guide or the Sun StorEdge Component Manager User’s Guide for instructions.

  • Page 116: Removing And Replacing An Interconnect Card

    Note – Even if the LED indicates an interconnect card failure, you should always verify the FRU status using either the CLI or Component Manager before replacing the unit. Refer to the Sun StorEdge T3 Disk Tray Administrator’s Guide or Sun StorEdge Component Manager User’s Guide for more information.

  • Page 117: Figure 5-7 Removing The Interconnect Card

    5. Pull the interconnect card out using the latch handle. Caution – The interconnect card that is removed must be replaced within 30 minutes or the Sun StorEdge T3 disk tray and all attached disk trays will automatically shut down and power off.

  • Page 118: Controller Card

    Note – Even if the LED indicates a controller card failure, you should always verify the FRU status using either the CLI or Component Manager before replacing the unit. Refer to the Sun StorEdge T3 Disk Tray Administrator’s Guide or Sun StorEdge Component Manager User’s Guide for more information.

  • Page 119: Figure 5-8 Removing The Controller Card

    6. Pull the controller card out using the latch handles. Caution – The controller card that is removed must be replaced within 30 minutes or the Sun StorEdge T3 disk tray and all attached disk trays will automatically shut down and power off.

  • Page 120: Chassis

    The name is a string that consists of 1 to 12 characters. The name must start with an alphabetic character, not a numeral. For example: file1.bin is acceptable 1file.bin is not acceptable 5-16 Sun StorEdge T3 Disk Tray Installation, Operation, and Service Manual • July 2000...

  • Page 121: Upgrading Controller Firmware

    When upgrading controller firmware, make sure there are no additional telnet or FTP sessions to the Sun StorEdge T3 disk tray. Halt all disk tray activity (no I/Os running from the host), and keep activity through the one remaining telnet session to a minimum.
  • Page 122 226 Binary Transfer complete. 162 bytes received in 1 seconds (0 Kbytes/s) ftp> 5. Type quit to exit the ftp session. ftp> quit 221 Goodbye. mngt_host:/: 5-18 Sun StorEdge T3 Disk Tray Installation, Operation, and Service Manual • July 2000...

  • Page 123: Upgrading Controller Eprom Firmware

    6. Install the firmware using the boot -i command. t300:/:<2>boot -i filename 7. Reboot the disk tray using the reset command. t300:/:<3>reset 5.3.2 Upgrading Controller EPROM Firmware The EPROM firmware is stored in the FLASH memory device (FMD) on the controller card.

  • Page 124: Upgrading Interconnect Card Firmware

    The interconnect card firmware is stored in the FLASH memory device on the interconnect card. The disk tray can be operational during the interconnect card firmware upgrade. 5-20 Sun StorEdge T3 Disk Tray Installation, Operation, and Service Manual • July 2000...
  • Page 125 1. Start an FTP session from the management host to the disk tray. For example: mngt_host:/:<15>ftp 129.150.47.101 Connected to 129.150.47.101. Escape character is ’^]’. 220 129.150.47.101 pSOSystem (NUPPC/2.0.0-G) ready Name (129.146.81.201:root): 2. Log in to the disk tray by typing root and the root password at the prompts. Name (129.146.81.201:root): root 331 Password required for root.

  • Page 126: Upgrading Disk Drive Firmware

    Caution – Disable Component Manager polling during this procedure to avoid problems. Do not perform any command line or Component Manager interaction with the system during the firmware download. 5-22 Sun StorEdge T3 Disk Tray Installation, Operation, and Service Manual • July 2000...
  • Page 127 To upgrade the disk drive firmware: 1. Start an FTP session from the management host to the disk tray. For example: mngt_host:/:<15>ftp 129.150.47.101 Connected to 129.150.47.101. Escape character is ’^]’. 220 129.150.47.101 pSOSystem (NUPPC/2.0.0-G) ready Name (129.146.81.201:root): 2. Log in to the disk tray by typing root and the root password at the prompts. Name (129.146.81.201:root): root 331 Password required for root.
  • Page 128 Verify that the download was successful using either the CLI or Component Manager. Refer to the Sun StorEdge T3 Disk Tray Administrator’s Guide or the Sun StorEdge Component Manager User’s Guide for more information.

  • Page 129: Specifications

    A P P E N D I X Specifications This appendix contains the following sections: “Power Specifications” on page A-1 “Environmental Specifications” on page A-2 “Mechanical Specifications” on page A-3 “Cable Specifications” on page A-3 “Connectors” on page A-4 Power Specifications Power Specifications TABLE A-1 Specification...

  • Page 130: Environmental Specifications

    Vibration (from 5 to 500 Hz @ 0.25g 5 to 500 Hz @ 1.0g Vibration drive specification) (swept sinewave) (swept sinewave) can be applied from any axis X,Y,Z Sun StorEdge T3 Disk Tray Installation, Operation, and Service Manual • July 2000...

  • Page 131: Mechanical Specifications

    Mechanical Specifications Installation clearances: For FRU replacement, allow accessibility in front and rear of chassis. Allow a minimum of four inches in the front and rear for air circulation. Physical Specifications TABLE A-2 Height Width Depth Weight 5.25 inches 17.5 inches 18.5 inches 67 lbs 13.33 cm...

  • Page 132: Figure A-1 10Base-T Connector

    Ethernet cable is used to connect the controller server to the site’s network hub for administration of the disk tray. 10BASE-T 1 2 3 4 5 6 7 8 10BASE-T Connector FIGURE A-1 Function Reserved Reserved Reserved Reserved Sun StorEdge T3 Disk Tray Installation, Operation, and Service Manual • July 2000...

  • Page 133: Figure A-2 Rs-232 Serial Port Connector (Rj11-6

    A.5.2 RS-232 Serial Port Connector The controller card has an RS-232 serial port connector (RJ11-6). A standard serial cable is used to connect the controller service interface to a dumb terminal (or computer serial port with terminal emulation). Note – The serial port is reserved for special service procedures that can be performed only by qualified, trained service personnel.
  • Page 134 Sun StorEdge T3 Disk Tray Installation, Operation, and Service Manual • July 2000...
  • Page 135 • 24 in. (61 cm) F530-2843 Power cord F180-1918 page B-3 5m fiber-optic cable F537-1020 page B-3 Media interface adapter (MIA) F370-3989 page B-3 Front panel F540-4306 page B-4 Empty Sun StorEdge T3 disk F370-3990 Not shown tray hassis with centerplane...

  • Page 136: Figure B-1 Disk Drive In Canister

    Disk Drive in Canister FIGURE B-1 Controller Card FIGURE B-2 Interconnect Card FIGURE B-3 Sun StorEdge T3 Disk Tray Installation, Operation, and Service Manual • July 2000...

  • Page 137: Figure B-4 Power And Cooling Unit

    Power and Cooling Unit FIGURE B-4 Interconnect cable Power cord Fiber-optic cable Cables and Cords FIGURE B-5 Media Interface Adapter (MIA) FIGURE B-6 Appendix B Illustrated Parts...

  • Page 138: Figure B-7 Front Panel

    Front panel Front Panel FIGURE B-7 Sun StorEdge T3 Disk Tray Installation, Operation, and Service Manual • July 2000...
  • Page 139 The default cache mode for the Sun StorEdge T3 disk tray. In a fully redundant configuration, cache is set to write-behind mode. In a nonredundant configuration, cache is set to write-through. Read caching is always performed.
  • Page 140 A Sun StorEdge T3 disk tray that includes a controller card. It can be use as a standalone unit or configured with other Sun StorEdge T3 disk trays.
  • Page 141 Sun StorEdge T3 disk trays. interconnect card A disk tray component that contains the interface circuitry and two connectors for interconnecting multiple Sun StorEdge T3 disk tray units. light-emitting diode (LED) A device that converts electrical energy into light that is used to display activity.
  • Page 142 A FRU component in the Sun StorEdge T3 disk tray. It contains a power supply, cooling fans, and an integrated UPS battery. There are two power and cooling units in a Sun StorEdge T3 disk tray.
  • Page 143 reliability, availability, serviceability (RAS) A term to describe product features that include high availability, easily serviced components, and very dependable. Simple Network Management Protocol (SNMP) A network management protocol designed to give a user the capability to remotely manage a computer network. synchronous dynamic random access memory (SDRAM)
  • Page 144 Solaris environment. write caching Data used to build up stripes of data, eliminating the read-modify-write overhead. Write caching improves performance for applications that are writing to disk. Glossary-6 Sun StorEdge T3 Disk Tray Installation, Operation, and Service Manual • July 2000...
  • Page 145 Index NUMERICS centerplane service, 5-16 10BASE-T cable connection, 2-20 changing the default configuration, 2-40 10BASE-T connector specifications, A-4 channel connection failures, 4-9 chassis service, 5-16 Component Manager, 3-9, 4-2 AC power cord installing, 2-33 connection, 2-21 components, 1-4 illustrated, 2-18 controller card description, 1-5 alternate master unit, 2-5 disk drive description, 1-4...
  • Page 146 5-12 controller, 2-28 service, 5-11 disk drive, 2-28 upgrading firmware, 5-20 EPROM, 2-28 interconnect card, 2-28 upgrading, 5-16 controller, 5-17 disk drive, 5-22 Index-2 Sun StorEdge T3 Disk Tray Installation, Operation, and Service Manual • July 2000...
  • Page 147 RAID levels, 3-4 to 3-6 related documentation, xxiv LEDs, 4-8 reliability and redundancy, 1-3 controller card, 4-8 removing disk drive, 4-4 disk tray interconnect card, 4-7 caution, 2-16 power and cooling unit, 4-5 front panel, 2-3 removing and replacing controller card, 5-14 disk drives, 5-3 MAC address location, 2-4 front panel, 5-4...
  • Page 148 4-9 FRU failures, 4-9 telnet sessions, 4-2 typographic conventions, xxiii unit volume configuration options, 3-3 unpacking the disk tray, 2-3 upgrading firmware, 5-16 UPS battery, 5-10 Index-4 Sun StorEdge T3 Disk Tray Installation, Operation, and Service Manual • July 2000...

Table of Contents
