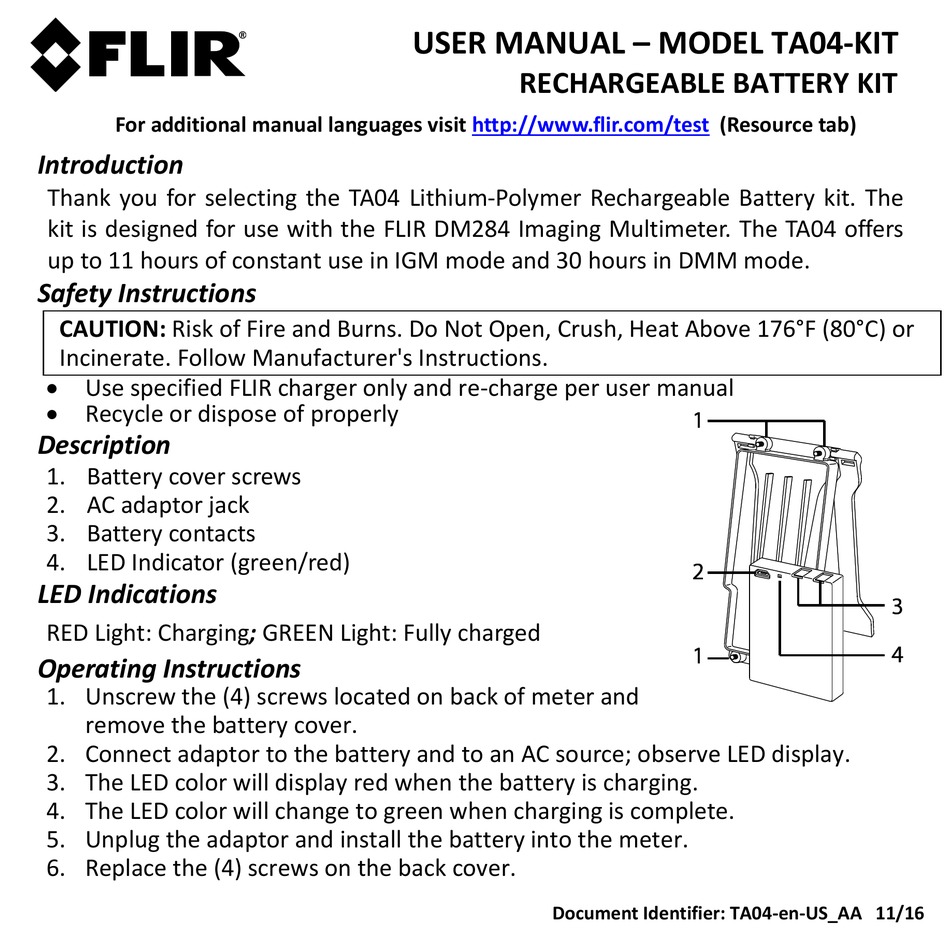

FLIR TA04-KIT User Manual

For additional manual languages visit

Introduction

Thank you for selecting the TA04 Lithium-Polymer Rechargeable Battery kit. The
kit is designed for use with the FLIR DM284 Imaging Multimeter. The TA04 offers
up to 11 hours of constant use in IGM mode and 30 hours in DMM mode.

Safety Instructions

CAUTION: Risk of Fire and Burns. Do Not Open, Crush, Heat Above 176°F (80°C) or
Incinerate. Follow Manufacturer's Instructions.
 Use specified FLIR charger only and re-charge per user manual
 Recycle or dispose of properly

Description

1. Battery cover screws
2. AC adaptor jack
3. Battery contacts
4. LED Indicator (green/red)

LED Indications

RED Light: Charging; GREEN Light: Fully charged

Operating Instructions

1. Unscrew the (4) screws located on back of meter and
remove the battery cover.
2. Connect adaptor to the battery and to an AC source; observe LED display.
3. The LED color will display red when the battery is charging.
4. The LED color will change to green when charging is complete.
5. Unplug the adaptor and install the battery into the meter.
6. Replace the (4) screws on the back cover.
USER MANUAL – MODEL TA04-KIT
RECHARGEABLE BATTERY KIT
http://www.flir.com/test
Document Identifier: TA04-en-US_AA 11/16
(Resource tab)
