Ozito X2 TCS-6100 Instruction Manual

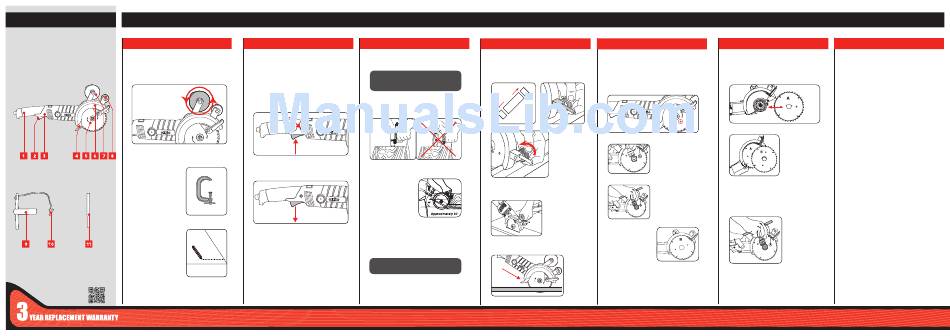

KNOW YOUR PRODUCT

SETUP & PREPARATION
TWIN CUTTER
1. SIDE HANDLE
1. Main Handle 5. Blades
2. On/Off Switch 6. Upper Blade Guard
Side Handle
3. Lock Off Switch 7. Side Handle
4. Lower Blade Guard 8. Wax Feeder Knob
1. Attach the side handle to the twin cut saw

Preparing your workpiece

1. Securely clamp the workpiece.
9. Wrench 11. Wax Sticks
10. Locking Pin
2. Mark your cutting line.
ONLINE MANUAL NOTE: The kerf (width of cut) is 4.5mm. Allow for this when making
a cut.
Scan this QR Code with your
mobile device to take you to
the online manual.

OPERATION

2. ON/OFF SWITCH 3. CUTTING WOOD
WARNING: Always ensure that the lower guard is releasing 1. Turn on the Twin Cutter.
freely and is fully cloesd before commencing work. If it
is binding or sticking do not proceed and contact Ozito
Customer Service.
CAUTION: ALLOW THE BLADE TO REACH
FULL SPEED BEFORE CUTTING. OTHERWISE
The tool is recommended for use with a residual current device
"KICKBACK" MAY RESULT, CAUSING SERIOUS
with a rated residual current of 30mA or less.
INjURY.
1. To turn the saw on, depress the lock off switch then the on/off
switch.
2. Hold the saw so that the blades are perpendicular to the
workpiece.
a
b
2. To turn the saw off, release the on/off switch.
3. Tilt the saw upwards so that
it is angled at approximately
30°, keeping the blade
perpendicular to the plane of
the workpiece.
4. Move the blades along the cutting line. Do not use excessive
force. Allow the Twin Cutterv to do the work.
CAUTION: WHEN YOU RELEASE THE ON/OFF
SWITCH, ALLOW THE BLADES TO COME TO A
COMPLETE STOP.
4. CUTTING METAL

5. REMOVING BLADES

Always use the wax lubricating system when cutting aluminium,
copper, stainless steel sheet and cast iron up to 3mm thick.
1. Unplug the Twin Cutter and allow the blades to cool.
1. Remove the end caps from 2. Fully insert the wax stick
a wax stick. into the holder.
2. Rotate the blades independently until the holes in both
blades are aligned.
4. Turn the wax feeder
wheel ¼ turn.
3. Place the lock pin attached
to the wrench through the
holes to lock the blades.
5. Follow the instructions for cutting wood.
4. Unscrew the lock nut and
remove it.

PLUNGE CUTTING

1. Raise the lower guard
and keep it raised with
the thumb of your left
hand whilst gripping the
side handle.
5. Retract the lower blade
guard.
2. Switch on, allow the blades to reach full speed and then
plunge the blades into the workpiece.
6. Remove "Blade B" and then "Blade A".

6. FITTING BLADES

Caution: The Twin Cutter is not designed to be used with abrasive
wheels.
1. Place Blade A onto the blade flange with the pins of the flange in
the corresponding holes in the blade.
2. Place Blade B over
the shaft.
3. Screw in the blade bolt but do not tighten.
4. Turn the blades so that the holes are aligned.
5. Place the lock pin
through the holes
to hold the blades.
Tighten the lock nut.
6. Turn the blades by hand to check that they easily turn in
opposite directions.
TCS-6100
