8. LCD Display - Displays test results, Code Reader functions and
Monitor status information. See DISPLAY FUNCTIONS, below, for
details.
9. Cable - Connects Code Reader to the vehicle's Data Link
Connector (DLC).
10. USB Connector - Used to connect USB cable when transferring
data batween Code Reader and personal computer.

DISPLAY FUNCTIONS

1
2
3
4

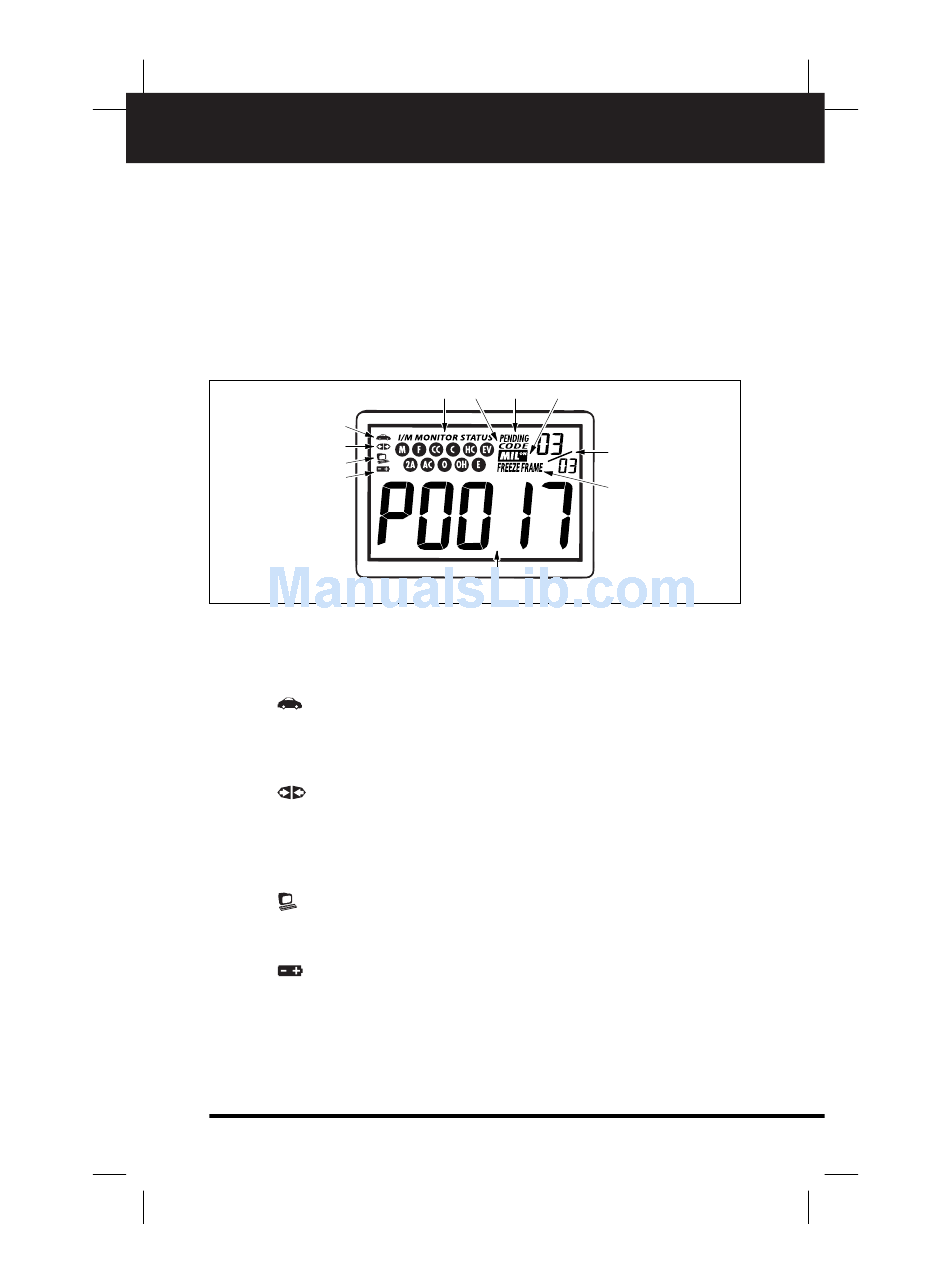

Figure 2. Display Functions
See Figure 2 for the locations of items 1 through 13, below.
1. Vehicle icon - Indicates whether or not Code Reader is being
properly powered through the vehicle's Data Link Connector
(DLC). A visible icon indicates that Code Reader is being powered
through the vehicle's DLC connector.
2. Link icon - Indicates whether or not Code Reader is com-
municating (linked) with the vehicle's on-board computer. When
visible, Code Reader is communicating with the computer. If the
Link icon is not visible, Code Reader is not communicating with the
computer.
3. Computer icon - When visible, indicates the Code Reader is
connected to a ppersonal computer to upload or download data
(PC Link is an optional accessory).
4. Internal Battery icon - When visible, indicates the Code
Reader batteries are "low" and should be replaced.
5. DTC Display Area - Displays the Diagnostic Trouble Code (DTC)
number. Each fault is assigned a code number that is specific to
that fault.
OBD 2
About Code Reader
DISPLAY FUNCTIONS
11 9 10 7
8
6
5
9
