360 Systems TSS MINI 2100 Operation Manual

Multi format video server
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

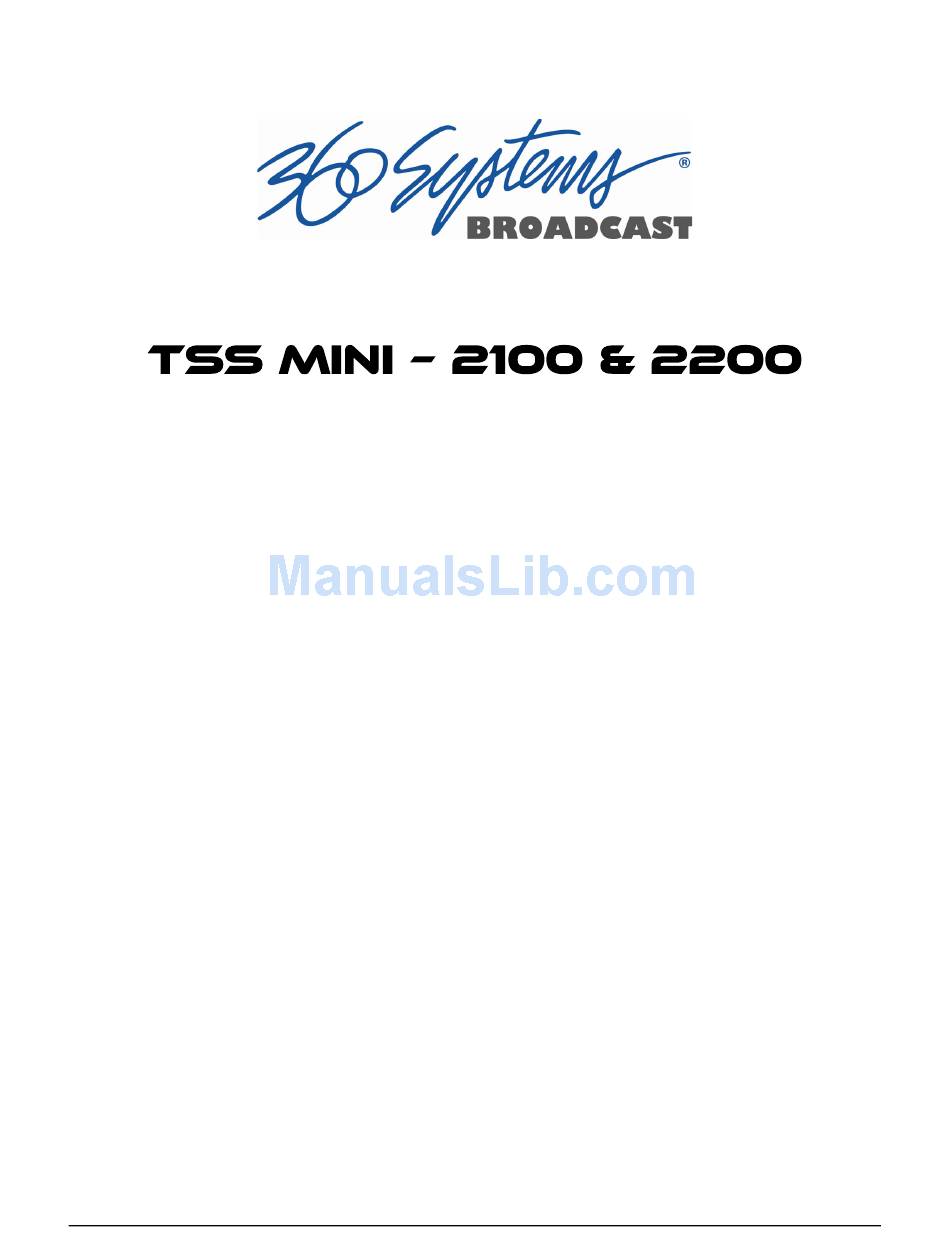

Multi Format Video Server
Operations Manual
P/N 700-136-0001-02
September 2016
Software Version 5.01
Copyright © 2016, 360 Systems
All rights reserved
Printed in the United States of America
TSS MINI Operations Manual
Page 1

Advertisement

Table of Contents
loading

Related Manuals for 360 Systems TSS MINI 2100

Summary of Contents for 360 Systems TSS MINI 2100

  • Page 1 Multi Format Video Server Operations Manual P/N 700-136-0001-02 September 2016 Software Version 5.01 Copyright © 2016, 360 Systems All rights reserved Printed in the United States of America TSS MINI Operations Manual Page 1...

  • Page 2: Table Of Contents

    Software Copyrights ..................11 Video and Audio Copyright Reminder ..........11 Introduction _____________________________________________________________________ 11 Key Features and Benefits ..................14 Applications for 360 Systems Servers ..............15 Accessory Information ....................16 Installation ______________________________________________________________________ 17 Unpacking ........................17 Important Installation Notes ................... 19 System Cooling .....................
  • Page 3 Basic Operations ________________________________________________________________ 27 The Server Desktop ....................27 Launching the Graphic User Interface ..........27 Shutting Down the Server ................. 27 Graphic User Interface Overview ................28 System Menu Bar..................29 Show Menu ..................... 29 Edit Menu ......................29 Windows Menu .....................
  • Page 4 Programming GPIO Outputs ..............52 Programming GPI Inputs ................53 Configuring the Ethernet Network ............54 Setting the Date and Time ................ 57 Clip List ..........................59 Renaming and Deleting Clips ..............59 Sorting Clips ....................59 Filtering the Clip Display ................60 Finding Clips ....................
  • Page 5 normally visible; extreme settings may result in a slight visible shift of the picture from left to right............. 78 Using Embedded Audio ................79 Ganging Channels for Synchronized Playback ........80 FTP File Transfers ......................80 Network Time Protocol ________________________________________________________ 86 Automatic Date/Time Updates ...............
  • Page 6 Product Warranty ______________________________________________________________ 113 End User License Agreement __________________________________________________ 115 Appendix A _____________________________________________________________________ 118 Connector Specifications ..................118 Serial Control Connector Pinout (Optional CXP-5 module) ..118 BNC Connectors ..................119 GPIO Connectors (Optional CXP-5 module) ........119 GPIO Connector Pinout ................120 System Board Ports ...................

  • Page 7: Preface

    The title page of an Operations Manual indicates its revision number, which should always match the software revision of the server with which it is used. Operations Manuals for the latest revision may be obtained from 360 Systems Customer Service, or from 360 Systems’ web site.

  • Page 8: Safety Notices

    Only qualified personnel should perform installation and service. Refer to appropriate  sections of this product manual for instruction. Contact 360 Systems Customer Support for further explanation, or to clarify any uncertainty. Disconnect the power cord before removing the cover.

  • Page 9: Important Safety Instructions

    Important Safety Instructions These instructions are required per applicable safety standards. Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

  • Page 10: Product Damage Precautions

    Please visit 360systems.com/support/register or send in your Name, Company Name, Address, Phone Number, Email, Model and Serial Number to support@360systems.com so 360 Systems may remain in contact with you. Mail or fax it to 360 Systems offices in the USA at the address provided below.

  • Page 11: Software Copyrights

    Software Copyrights Software in this product is based on the work of, or is copyright by, 360 Systems, Ubuntu, The Qt Company Ltd., MainConcept, Matrox and FreeType Team. Copyright 2003-2015 by 360 Systems. Qt is a registered trademark of The Qt Company Ltd. and/or its subsidiaries.
  • Page 12 A table of tested controllers is provided elsewhere in this manual. Contact 360 Systems Sales Support team for assistance with a specific application. The optional CXP-5 Auxiliary Interface Module provides serial port interfaces for independent control of each channel.
  • Page 13 Playlist that is resident on the server. The system also supports remote control over network using the 360 Systems Remote Workstation software. This is a free application that runs on a PC that allows control of multiple TSS MINI Servers from a single PC, and multiple PCs can connect to and control a single server.

  • Page 14: Key Features And Benefits

    Key Features and Benefits The TSS MINI Multi Format Video Server is designed to deliver outstanding performance and value as a multi-format capable broadcast server. The multi-channel, multi-format capabilities coupled with advanced features make it an excellent and affordable choice for the transition to high definition.

  • Page 15: Applications For 360 Systems Servers

    Applications for 360 Systems Servers The TSS MINI Multi Format Video Server adds value to many applications in broadcasting, cable distribution, video production, Pro A/V, entertainment and sports. It provides immediate record and playback of any source, lending a spontaneous appearance to broadcasts, presentations and live events.

  • Page 16: Accessory Information

    GPI’s and GPO’s for external triggering and control. Maintenance Spares 360 Systems is committed to keeping your server on air. Having spare parts on hand in the event of a fault is a good practice in broadcast and other high-reliability applications. Hard disk spares are particularly important.

  • Page 17: Installation

    If the original packaging is not available, due to the product’s weight it should be professionally packed for shipment, with particular attention to protecting the corners. Package Contents Confirm that all items on the packing list have been received. Contact 360 Systems if any item is missing. TSS MINI Multi Format Video Server ...
  • Page 18 If you own more than one server, it may be appropriate to use a single keyboard, monitor, and mouse with a KVM switch to select between servers. Not all KVM switching systems are compatible. Depending on the KVM used, it may be necessary for the KVM switch to supply an active signal to the server at all times, even when switched away from it.

  • Page 19: Important Installation Notes

    A disadvantage is that it may create its own power transients when switching between utility power and its inverter supply. For this reason, 360 Systems does not recommend this type for use with a broadcast server. Continuous Conversion UPS Design...
  • Page 20 CPU in equipment. Some major broadcasters prohibit the presence of cell phones in certain equipment areas. 360 Systems believes that the risk of undesired equipment behavior from their RF fields is very real.
  • Page 21 Connect equipment racks directly to the utility safety ground with a heavy copper conductor.  Do not operate equipment which has a lifted safety ground (green frame ground wire).  Consider installing a humidifier to reduce the likelihood of static discharge. ...

  • Page 22: About Server Software

    About Server Software The TSS MINI Multi Format Video Server is shipped with its application programs and operating system installed. The first time that it is started, it must be connected to a keyboard, monitor and mouse. The server will ask you to accept the Software Licensing Agreement before it will operate.
  • Page 23 unsuitable monitor is connected. Connect the monitor to the VGA port on the rear of the unit using a VGA cable from the monitor or KVM. Refer to Figure 1 Connect the keyboard and mouse to the available USB ports. Refer to Figure 1 NOTE: If using a CXP-5 control module, do not connect the CXP-5 control module to any USB hub.

  • Page 24: Rear Panel Connections

    Rear Panel Connections indicates the Rear Panel connections on TSS MINI Multi Format Video Server. Each Figure 1 connection is described briefly in the following text. Make all connections appropriate to other equipment before applying power to the system. Figure 1 - Rear Panel Detail Rear Panel Connections to the TSS MINI Multi Format Video Server SDI Video I/O Power Supply Module 1...

  • Page 25: Serial Control Ports For Channels

    If no monitor is detected, the default screen resolution of 640 x 480 will be used. The GUI is best-viewed on 19-inch or larger monitors. 360 Systems does not provide monitors for the server. Serial Port The rear panel serial port is not used.

  • Page 26: Gpio Control

    Most broadcast automation systems and some remote control panels employ VDCP protocol. Many controllers used for transport, instant replay, and edit control employ BVW or Odetics protocol. Note that the server does not respond or provide status for all messages that are specific to tape machines.

  • Page 27: Basic Operations

    Basic Operations This section introduces the Graphic User Interface (GUI), its menus and operating controls. The graphic user interface is the primary way to manage server operations. With it, you can control recording and playout, set up video and audio parameters, configure the network and remote control ports, edit clips and make playlists.

  • Page 28: Graphic User Interface Overview

    Graphic User Interface Overview Once the server has successfully powered up, the VGA monitor will display the GUI of Figure 3. This view provides: A main System Menu bar for configuration operations  A Status Bar that displays various system messages ...

  • Page 29: System Menu Bar

    Windows can be moved, resized and overlapped by dragging the title bar, window edges, or the resize tab at the lower right corner of a window. The key combination will CTRL+TAB also place the activated window in front of all other windows. System Menu Bar The System Menu bar contains four menus: Show, Edit, Windows and Help.

  • Page 30: Help Menu

    Cascade Arranges all open windows so that they are overlapping, but offset. It is useful as a starting point to rearrange the windows. This choice is especially useful with small monitors. Tile Arranges all open windows so that each is fully visible. This choice is especially useful with larger monitors.

  • Page 31: Transport Menu Bar

    Figure 4 - Transport Channel View Transport Menu Bar There are two menus, File and Options. File Menu Record capable channels only (Channel 1 and in some models Channel 2). Opens the Clip List to allow naming of a new clip, then prepares channel 1 or 2 for recording. See page Error! Bookmark not defined..

  • Page 32: Options Menu

    Key Command – Ctrl+A Playlist Switches from Transport View to Playlist View. Close Closes the Transport window. This has the same effect as the Close box in the upper right corner of the window. Note that this will not stop playback or eject a loaded clip. Options Menu This menu contains two selections.

  • Page 33: The Playlist Channel View

    The Playlist Channel View The Playlist Channel View is shown in Figure 5. This view allows multiple clips to be loaded in a Playlist for sequential playout. Displays the time Displays the current remaining of the time of day. current clip or event. Displays the time Repeat the Playlist indefinitely.

  • Page 34: Options Menu

    Append Opens the Playlist Selection dialog to allow choosing a Playlist to Append to the currently loaded list. This can be done while playing to allow continuous playback of new Playlists. See page Error! Bookmark not defined.. Save Saves an edited Playlist using its existing file name. Key Command –...

  • Page 35: Initial System Configuration

    Initial System Configuration Selecting a Sync Reference In many applications, this server and downstream equipment connected to it must be referenced to a common genlock source (SMPTE 170M or ITU-R-BT.470). A connector is provided on the rear panel to receive a genlock signal (black and burst at the field rate of 25 or 29.97 fields/second) or a tri-level sync signal.
  • Page 36 No configuration is required to use this feature. Selecting the Video Frame Rate Family 360 Systems TSS MINI servers can record and play video in four high definition video formats and two standard definition formats: These formats are divided into two “families”...
  • Page 37 Figure 6 – Selecting a Frame Rate Family and Channel Output Format The system as a whole operates at one Frame Rate Family at a time; it does not play clips of mixed Frame Rate Families. Only the files recorded in the currently selected Frame Rate Family will be visible in the Clip List.

  • Page 38: Making A Recording From The Gui

    Making a Recording from the GUI Video recordings are made using the Transport View of Channel 1 (2100) or Channel 1 & 2 (2200). These channels can record or play clips, but not both at the same time. On the 2100, Channel 2 is playback only.

  • Page 39: Input Resolution Selection

    o Bit Rate: Maximum selectable 5-50 Mb/s o Supports Closed Captions o Audio Channels: 2 o Audio Codec: mp3 Layer 2 IMX (D-10) in .mxf (SD only)  o IMX (D-10) in .mxf o Codec Type: MPEG2 Constant Bit Rate o Bit Rate: 30, 40, or 50 Mb/s o Supports Closed Captions o Audio Channels: 4...

  • Page 40: Setting An Audio Delay Time

    Figure 7 - Channel Configuration Dialog Setting an Audio Delay Time Audio tracks can be offset from video in 1 millisecond increments up to +/- one second. The setting is per channel and non-volatile. It applies to playback only, not recording. You must stop and start the playback to hear the result of a change.

  • Page 41: Selecting A Time Code Source

    Audio Output Sync Reference The audio sample rate is derived from the selected video sync reference. Audio is recorded at a 48K sample rate. The 0.1% pull-down for 59.94 Hz video is taken into account when generating the sample rate. Selecting a Time Code Source When in High-Definition modes the server utilizes the time code standard specified in SMPTE 12M-1, and applies it as described in SMPTE 12M-2.

  • Page 42: Making A Named Recording

    Making a Named Recording From the Channel 1 Transport Window, Select FILE>NEW. The dialog of Figure 9 below  appears. Figure 9 - Channel 1 Create New Recording dialog Enter a clip name using the keyboard. Up to 115 characters may be used. Spaces are ...

  • Page 43: Monitoring A Recording Source With Input Feed (E-E) Mode

    Figure 10 - Channel 1 Ready to Record Click the RECORD button at any time to begin recording. The yellow time display counter  will update the clip duration continually. To stop recording, click STOP.  Monitoring a Recording Source with Input Feed (E-E) Mode The E-E button appears in the Channel 1 and Channel 2 (model dependent) Record/Play window.
  • Page 44 when the input itself is not referenced. For example, you can simultaneously broadcast a live signal while recording the event for later rebroadcast. All VANC lines are passed through E-E regardless of which lines are selected for recording. Similarly, all embedded audio is passed through even though (depending on the selected recording format) only the lowest-numbered channels are recorded.

  • Page 45: Playing A Clip From The Gui

    Playing a Clip from the GUI Video Playback can be done on all channels, individually or simultaneously. The record- capable channels (Model dependent) can record or play, but not both at once. Follow these steps to play a clip: Beginning Playback 1.

  • Page 46: Looping A Clip

    4. When the Transport Window indicates Idle Ready, the clip can be played by clicking PLAY. Looping a Clip Clicking on the LOOP checkbox in the Transport View will cause a clip to loop until LOOP is unchecked, or until STOP is clicked. LOOP may be checked or unchecked before or during playback, but must be changed at least 2 seconds before the end of clip to take immediate effect.

  • Page 47: Using Fast Forward / Rewind

    Using Fast Forward / Rewind >> (Fast Forward) and << (Rewind) buttons transport program material at high speed in the chosen direction. Four speed choices are available in each direction. Click the button repeatedly for: 4x, 16x, 64x, and 128x. Audio does not play at any speed beyond +2X/-2X. Slow Motion Playback The TSS MINI system will play smooth slow-motion video in forward or reverse, at any speed from zero to 2X forward or 2x reverse.
  • Page 48 in the selected direction at the selected speed without holding the mouse button down. The cursor may now be moved over the Stop button to wait for the desired point.  When using a wheel mouse, position the cursor over the slider scale and rotate the wheel to increment speed.

  • Page 49: Editing A Clip

    Editing a Clip Edit controls are activated with the Edit check box. Several buttons are available to define the beginning and end of a region within a clip; associated time code displays are also present. These non-destructive Mark In and Mark Out trim points can be set to define a portion of a clip to be played.
  • Page 50 Enter Mark Out point from the keyboard: Use the mouse or Tab key to move between In  and Out fields. When a field is highlighted, enter a numeric value from the keyboard. Whether a clip is still or playing, press Mark Out to capture a time code value from the ...

  • Page 51: System Configuration

    System Configuration The following configuration options apply to the server as a whole, except where it applies specifically to an individual channel. Assigning Names to the Server and Transport Channels The server can be assigned a name that will be displayed along the top of the Main GUI Window.

  • Page 52: Programming Gpio Outputs

    Programming GPIO Outputs The system has twelve General Purpose Outputs, referred to as GPO 1 through 12. Each can be programmed to go active on the selected channel when one of the following events occurs: Transport returns to idle IDLE Transport is paused PAUSED Transport is stopped...

  • Page 53: Programming Gpi Inputs

    Figure 13 - GPO Configuration Screen Programming GPI Inputs The optional CXP-5 module has 12 General Purpose Inputs, referred to as GPI 1 through GPI 12. Each can be programmed to trigger one of the following events on a channel: Cue a clip (in a Playlist or Playback Schedule) Cue selected clip for immediate playback (Playlist Mode only) JUMP...

  • Page 54: Configuring The Ethernet Network

    2. Mark a checkbox for the channel of interest. The event will be triggered when that GPI goes active. 3. Click APPLY to activate. Figure 14 - GPI Configuration Screen Configuring the Ethernet Network The system provides a number of user settings that configure it for use in a practical network.
  • Page 55 Figure 15 - Network Configuration Screen The server is shipped with a default network Host Name and IP Address. Qualified network engineers may change these configurations to suit your specific network environment. Factory defaults for networking are: Network Disabled  Use DHCP ...
  • Page 56 FTP User / Password In this space, you may set the User Name and Password to be used to access the system remotely via an FTP client. Saving Network Configuration Click on OK, APPLY, or CANCEL to accept or abandon new entries. The IP address of the system is displayed in the center of the GUI at the end of the main window title.

  • Page 57: Setting The Date And Time

    Setting the Date and Time Click EDIT >CONFIGURE >DATE/TIME. The dialog below appears. Figure 16 - Time/Date Configuration Screen Set the TIME and DATE by clicking on the Time/Date field and navigating the clock and calendar. Check Automatic Updates to enable automatic updates using the Network Time Protocol (NTP).
  • Page 58 Figure 17 - Time/Date Configuration Screen Select the REGION and ZONE according to your geographic location or time zone. Use the scroll-bar as necessary, and then click on the desired value. Note: A System Restart is required for a Time Zone change to take effect Page 58 TSS MINI Operations Manual...

  • Page 59: Clip List

    Clip List The TSS MINI server’s Clip List is used to find, select, delete, name, and rename clips. Clips can be dragged and dropped anywhere on a Transport for immediate playback. Single or multiple clips can be dragged into a Playlist. See page 67. Click SHOW >CLIP LIST from the main pulldown menu to display the Clip List.

  • Page 60: Filtering The Clip Display

    Filtering the Clip Display You can limit the number of clips displayed by typing a string in the SEARCH FILTER field. For example, typing “AT” in the filter field limits the display to all clips that contain “AT” somewhere in the clip name. It is not case sensitive, AT will show At, aT and at as well. Pressing the Clear button restores the complete display.

  • Page 61: Finding Clips Using Wildcards

    Figure 19 - Clip Locator Finding Clips Using Wildcards The following wildcard conventions may be used in a search when Use Regular Expressions is unchecked. Match anything. For example, to find all clips starting with “xyz”, use the pattern “ ”.

  • Page 62: Finding Clips Using Regular Expressions

    Finding Clips Using Regular Expressions A regular expression (“RE”) specifies a pattern to be matched in a clip name. Regular expressions can contain both special and ordinary characters. Ordinary characters just match themselves. Thus, the RE “ ” would match the “night” in the clip name “Tonight Show”, so this and any night other clip name with “night”...
  • Page 63 The subject of Regular Expressions is much larger than can be completely covered here. They are used in several different operating systems and programming languages. Further information can be found on the internet and in books on Regular Expressions and Linux. TSS MINI Operations Manual Page 63...

  • Page 64: Using Playlists

    Using Playlists The TSS MINI Multi Format Video Server’s Advanced Playlisting software provides extensive tools for building, editing and playing complex sequences of program content. Advanced Playlisting appears as on-screen windows, with an intuitive Graphic User Interface that makes it easy to operate without extra equipment. It’s invaluable for building commercial breaks, news rundowns, still-store and clip lists.

  • Page 65: The Playlist View

    The Playlist View The playlist view for channel 1 is shown in Error! Reference source not found.. Its functions are briefly described here. Table 1 provides an overview of Playlist control functions and their associated hot-keys. Displays the time remaining of the Displays the current current clip or event.
  • Page 66 FUNCTION DESCRIPTION / REFERENCE INVOKE HOT-KEY Play / Pause a clip ( Page 69Error! PLAY Button PLAY/ PAUSE Bookmark not defined.) SPACE Stop / Show First Frame ( Page 69) STOP Button STOP/ SHOW Cue a clip ( Page Error! Bookmark not CUE Button defined.

  • Page 67: Creating And Running A Playlist

    Creating and Running a Playlist To Create a Playlist (Using Channel 1 in the example): 1. Change the transport for Channel 1 to the Playlist View. Click FILE in the Channel 1 transport pulldown menu. The window of Error! >PLAYLIST Reference source not found.
  • Page 68 Figure 21 - Channel 1 Playlist with Clip List 6. Click PLAY to run the playlist. The clips will be played in the order they were entered in the playlist. The currently playing clip will indicate a status of PLAYING. The next clip on the list will indicate a status of CUED. 7.

  • Page 69: Loading A Playlist (File>Open)

    Figure 22 – Active Playlist Loading a Playlist (FILE>OPEN) Click FILE >OPEN from the Playlist View to bring up the list of available Playlists. Double- click on a playlist to load it. Saving a New Playlist (FILE>SAVE AS) Once a Playlist has been created, it can be saved by selecting FILE >SAVE AS from the Playlist View pulldown menu.

  • Page 70: Cueing A Clip (Cue)

    Cueing a Clip (CUE) When the Playlist is running, click CUE to immediately prepare a selected clip for playback. When the current clip is finished playing, the Playlist will play the Cued clip, followed by all subsequent clips. This allows the user to skip over clips that appear in the list between the currently playing clip and the selected clip.

  • Page 71: Automatic Scrolling To Currently Playing Clip (Home)

    Triggering the Start Time is essentially the same as pressing the Play button, so it is possible to arm the start time while a list is playing, have the playback stop from a Hold or GPI Stop, and then restart when the Start Time triggers playback. Automatic Scrolling to Currently Playing Clip (HOME) Click HOME to make the currently playing clip visible in the Playlist View window.

  • Page 72: Enabling As-Run Logging

    Click OPTIONS>CONFIGURE from the Playlist View of the channel pulldown. Use the thumbwheel UP and DOWN scroll button to increase or decrease the number of clips to retain. The default value of zero will retain ALL Items. Note that this only applies to the playlist itself, the actual clips referenced are not deleted.

  • Page 73: Editing Playlists

    Editing Playlists Removing a Clip from a Playlist To Remove a clip or other event from a Playlist: Make sure the clip to be removed is not PLAYING or CUED.   Position the cursor over the Clip and right-click. Select REMOVE from the pop-up menu.

  • Page 74: Mapping Gpo To Playlist Events

    duration in the Duration window. The minimum duration is 4 seconds. The entry may be in one of these formats: Hours, Minutes, Seconds and Frames entered as HHMMSSFF  04300102 = 4 Hours, 30 minutes, 1 second, 2 frames Hours, Minutes, Seconds and Frames entered as HH:MM:SS:FF ...
  • Page 75 Figure 24 - GPO Configuration Screen Check the EDIT checkbox in the Playlist View of the transport. Place the cursor over a Clip in a Playlist. Right click on the clip. Select EDIT GPO. The Event Editor (Error! Reference source not found. ) appears: Enable the GPO of interest by checking the corresponding ENABLED checkbox.

  • Page 76: Mapping Gpio Inputs To Control A Playlist

    Figure 25 – GPO Editor Mapping GPIO Inputs to Control a Playlist Playlists can be controlled with the twelve GPI Inputs. See Programming GPI Inputs on page 53. Page 76 TSS MINI Operations Manual...

  • Page 77: Advanced Topics

    Advanced Topics System Timing The TSS MINI Multi Format Video Server is equipped for use with an external genlock signal as a timing reference. This causes all outputs to be synchronous with other video signals in a facility. Adjustment of Genlock Timing will fine tune this synchronization to compensate for differences in equipment and wiring.

  • Page 78: The Horizontal (Nsec) Adjustment Is Used To Set The Precise

    Figure 26 - Video Timing Adjustment The Horizontal (nsec) adjustment is used to set the precise timing of the start of the frame relative to the reference signal, in order to match with other contributing signals. The effect is not normally visible; extreme settings may result in a slight visible shift of the picture from left to right.

  • Page 79: Using Embedded Audio

    User bits in the HD-SDI embedded audio stream are not supported.  Dolby®-E is supported with 360 Systems’ Bit-for-Bit® technology. Note that this requires  using a recording format such as AVC-100 that uses PCM audio recording.

  • Page 80: Ganging Channels For Synchronized Playback

    Ganging Channels for Synchronized Playback Two video channels can be ganged together for frame-accurate playback. This may be used for key and fill material (either stills or clips), or multi-channel playout of presentations, such as synchronized matte backdrops on News Broadcasts, or multi-screen projection. The channels can be ganged in the following combinations: Channel 1 can control Channel 2.
  • Page 81 The server is designed to be used in a private dedicated video network. A firewall with VPN capability must be used in systems that require internal security or connection to public networks. Consult with a network security specialist for guidance on the best hardware, programming and practices for your facility’s requirements.
  • Page 82 Figure 27 – FTP User and Password Configuration Logging in to the server FTP Service Using one of the FTP clients shown in Error! Reference source not found.: Enter the username and password  When the FTP client is connected, it will display the Clips in the main directory and all of the sub-folders.
  • Page 83 Transfer Time for 1 minute of video Workload Upload to TSS MINI Download from TSS MINI IDLE 14 seconds (45.0 MB/s or 360 Mb/s) 28 seconds (22.5 MB/s or 180 Mb/s) 1 Channel Playing 14 seconds (45.0 MB/s or 360 Mb/s) 28 seconds (22.5 MB/s or 180 Mb/s) 2 Channels Playing 15 seconds (39.4 MB/s or 315.2 Mb/s)
  • Page 84 1920 X 1080i @ 29.97 or 25 fps  1920 X 1080p @ 59.94 or 50 fps  1280 X 720p @ 59.94 or 50 fps  720 X 512 NTSC @ 29.97 fps  720 X 486 NTSC @ 29.97 fps ...
  • Page 85 The following codecs and file formats are supported: H.264/MPEG-4 AVC in .mp4 H.264 or MPEG-4 Part 10, Advanced Video Coding (MPEG-4 AVC) in the .mp4 container is supported. H.264/MPEG-4 AVC in .mov H.264 or MPEG-4 Part 10, Advanced Video Coding (MPEG-4 AVC) in the .mov container is supported.

  • Page 86: Network Time Protocol

    Network Time Protocol Automatic Date/Time Updates When using server play-lists in broadcast applications, an accurate record is often needed of what was played and when. The server’s As-Run logging feature creates such a record, time stamping each played clip using the machine’s internal date/time clock. Very accurate time stamping can be achieved by synchronizing the server’s clock to an external time base that is referenced to Coordinated Universal Time (UTC).

  • Page 87: Configuring Ntp

    Configuring NTP The server GUI is used to set the time zone and to enter the networking parameters. The local GUI must be used, as these configuration screens are not available on the Remote Workstation Interface. Selecting the Time Zone Starting at the main menu bar, Click Edit >Configure >Date-Time screen.
  • Page 88 Entering Network Parameters From the GUI’s main menu bar, click EDIT>CONFIGURE>NETWORK. The following screen appears. Make sure the basic network parameters have been entered. Figure 30 - Network Configuration Screen Disable Network: uncheck Host Name: (Any name will suffice, but since this name appears on each line of the server’s diagnostic logs, it is a good idea to keep this short.) The name should also be unique from other devices on the network.
  • Page 89 Note: When URLs (non-numeric site addresses such as pool.ntp.org) are used in the NTP Servers field, the IP address of at least one DNS (Domain Name server) must be provided in the Name Servers field. Typically, this address is supplied by your Internet Service Provider. These name servers translate URL names into numeric IP addresses needed to access the sites in question.

  • Page 90: Automation Control

    Automation Control The optional CXP-5 Auxiliary Interface Module’s serial control inputs connect with many broadcast automation systems, instant replay panels, video switchers, and remote control devices. For compatibility with simple controllers and push buttons, the server also provides 12 GPI (contact closure) inputs, and 12 programmable command outputs.

  • Page 91: Configuring The Automation Interface

    channel, be sure the Assigned Serial Ports option is unchecked. Do not attempt to use a different serial port to control one of the video channels that is under multichannel control. Controller Priority Only one serial controller can control a given video channel at a time. In general, the first controller to gain control of a video channel will have exclusive command.
  • Page 92 Figure 32 - Serial Port Configuration Screen Setting the Automation Source Directory By default, automation equipment will access the Home or Root directory as a source of clips. The directory accessed by automation equipment can be set for each port as follows. Select the port to be used (COM1 or COM2).

  • Page 93: Other Automation Options

    Content for different purposes can be grouped in folders, and selected by changing the  Automation Source Directory. Segregating material for different broadcast channels Content can be placed in a folder for each channel, and played out by separate  automation systems or controllers.
  • Page 94 Ignore Preroll Commands A minimum 4-frame pre-roll is required to allow the server time to respond to serial commands. See the documentation for your controller or automation to find out how to set the preroll value. Due to various ways preroll commands are implemented in different systems, it may be sufficient to check only this box.

  • Page 95: Tested Automation Controllers

    LAYTIME VDCP VECO STRA Tested Remote Control Panels and Switchers 360 Systems servers have been tested by 360 Systems as well as manufacturers of remote control devices and video switchers listed below, and found to operate correctly. Manufacturer Controller Protocol Notes ®...

  • Page 96: Remote Workstation Interface

    Remote Workstation Interface The Remote Workstation Interface is a software application that provides control of the server from PC workstations located within a facility. A remote workstation can access one or more video channels of the server to perform ingest, playback, trimming, playlisting, traffic operations or monitoring of server activities.

  • Page 97: System Requirements

    System Requirements PC with Windows XP, Vista or Windows 7 installed. Other operating systems have not been  tested and may not be supported. 10 MB free space on the computer hard disk, plus 128 MB RAM.  Figure 33 - Remote Workstation Deployments About the Remote Workstation Interface The Remote Workstation Interface consists of a CD-ROM or USB flash drive carrying the Remote Workstation application for Windows XP, Vista or Windows 7 computers.
  • Page 98 The IP address of a Remote Workstation currently controlling a channel appears in the status bar on the bottom-left of the Playlist or Channel window. A menu labeled Options appears at the upper-left of each server channel window. Clicking this menu presents a drop-down menu with a TAKE CONTROL option. Select this then click Yes in the confirmation dialog to give control of the video channel to your workstation.

  • Page 99: Installation

    Host computer, use this feature to install the new version in a uniquely named folder for example C:\Program Files\MAXX2420-SHD. After Installation A 360 Systems Remote Workstation icon will appear on your desktop. Double click the icon to open a remote session on the server. TSS MINI Operations Manual Page 99...
  • Page 100 Figure 34 – Remote Workstation Properties Page Because multiple simultaneous sessions of Remote Workstation may be run on a single PC, it is possible to make copies of the Remote Workstation icon and change the IP address of each, to permit access to any number of servers. Simply right click on the Remote Workstation icon and select Copy from the pop-up menu.

  • Page 101: Hard Disk Management

    Hard Disk Management The TSS MINI Multi Format Video Server employs an advanced SAS controller that manages the high-capacity hard disk array operating in a RAID-5 configuration. This design increases system performance, and by storing parity data, can survive the complete loss of a drive in the array without data loss.

  • Page 102: Improved Write Performance

    RAID Level 5: “Independent Access Array with Rotating Parity” High Data Reliability & Transfer Capacity DATA Disk Array Controller Array Management Software Provides Logical to Physical Mapping Physical Disk 0 Disk 1 Disk 2 Disk 3 Figure 35: RAID 5 Array Schematic Improved Write Performance The server uses new designs to improve RAID-5 write performance for both large sequential and small random transactions.

  • Page 103: Managing Disk Arrays

    Managing Disk Arrays The RAID Disk Array is for the most part, self maintaining. Any errors that occur are generally automatically assessed and the proper steps are taken by the system to correct the errors. A BIOS level configuration utility is included on the system but is only used in conjunction with the initial setup of the drives.
  • Page 104 Because specific drive models become unavailable as time goes on, 360 Systems recommends that maintenance spares be purchased at the same time as the server. It is possible to use a larger drive than the original, in this case the drive will be partitioned to match the size of the original.

  • Page 105: Replacing A Hard Drive

    The server hard disk drives have been factory tested and configured in a RAID 5 array. Each drive is numbered (0-3) and must be attached to the correctly numbered data cable. Drive bays are also numbered. Please read Opening the Front Panel on page 107 for instructions on accessing the hard drive bays.

  • Page 106: Maintenance

    Maintenance Fault Diagnostics Front Panel Indicators The four LED indicators on the front panel are used to diagnose server fault conditions. The meaning of each indicator is noted in the following table. POWER FLASHING indicates that there is a Shut down the server and contact 360 fault in the system power supply.

  • Page 107: Gigabit Ethernet Indicators

    Gigabit Ethernet Indicators The Gigabit Network Port card has the following indicator lights: Label Indication Meaning Green on The port is connected to a valid link partner ACT/LNK Green flashing Data activity (Left) No link 10 Mb/sec 10=OFF 100=GREEN Green 100 Mb/sec 1000=YELLOW Yellow...

  • Page 108: General Handling Precautions

     them from physical damage. Installing/Removing I/O Cards Request separate repair and replacement part documentation from 360 Systems’ Technical Service Department. Tel: +1 (818) 991-0360. Any repair, adjustment or service operation must be performed by a qualified technician. Page 108...

  • Page 109: Software Updates From A Usb Key

    Software updates for the system may be issued from time to time providing product enhancements. The server’s operating system and application programs can be updated by the user from a USB Flash Drive distributed by 360 Systems. The current software version is determined by looking in the GUI Help>About dialog box.
  • Page 110 7. IMPORTANT! Remove the USB Flash Drive. Never leave it plugged into the server. Do not use the Defragment option unless instructed to do so by 360 Systems. Page 110...

  • Page 111: Updating Firmware

    Factory Repair Policy A video server being returned under warranty shall be sent to 360 Systems, freight prepaid, in the original or equivalent packaging. Call 360 Systems for a return authorization number before returning a product. Have your serial number and software version number available for reference.

  • Page 112: Radio Interference Compliance

    Radio Interference Compliance Radio Interference (USA) WARNING: This equipment has been tested and found to comply with the limits for Class A digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

  • Page 113: Product Warranty

    360 Systems or compensation for any inconvenience or loss of use of the product while it is being repaired or replaced.
  • Page 114 REPRESENTATIVES BE LIABLE FOR DIRECT, CONSEQUENTIAL, PUNITIVE, SPECIAL OR INDIRECT DAMAGES, LOSS OF PROFITS, INCONVENIENCE OR ANY OTHER LOSSES DUE TO THE PRODUCT OR ITS OPERATION, OR ITS FAILURE TO OPERATE IN ACCORDANCE WITH ITS SPECIFICATIONS. Some states or regions do not allow the exclusion or limitation of incidental or consequential damages under certain circumstances, so the above limitations and exclusions may not apply to you.

  • Page 115: End User License Agreement

    For Server Software IMPORTANT THIS IS A LEGAL AGREEMENT BETWEEN YOU (“YOU”) AND 360 SYSTEMS® (“COMPANY”). COMPANY IS WILLING TO LICENSE THE SERVER SOFTWARE TO YOU ONLY UPON THE CONDITION THAT YOU ACCEPT ALL OF THE TERMS CONTAINED IN THIS SOFTWARE LICENSE AGREEMENT (“AGREEMENT”).
  • Page 116 laws and all other applicable laws of the United States, your country, and international law. You acknowledge that the Software design remains a confidential trade secret of Company. Failure to comply with the above restrictions will result in automatic termination of this license and will make available to Company other legal remedies.
  • Page 117 compliance with such law, and as so modified this Agreement shall continue in full force and effect. This Agreement may not be assigned without the consent of Company. TSS MINI Operations Manual Page 117...

  • Page 118: Connector Specifications

    Appendix A Connector Specifications Serial Control Connector Pinout (Optional CXP-5 module) DB9-F Connector Transmit A (TX–) Receive B (RX+) Transmit B (TX+) Receive A (RX-) Shell Frame ground Page 118 TSS MINI Operations Manual...

  • Page 119: Bnc Connectors

    BNC Connectors The following note applies to all video and Genlock connectors: An HD-BNC connector used as an output has a 75-ohm source impedance. An HD-BNC connector used as an input has a 75-ohm termination. GPIO Connectors (Optional CXP-5 module) General purpose control inputs (GPI) may be applied to the GPIO connectors, which are DB- 25 pin connectors.

  • Page 120: Gpio Connector Pinout

    GPIO Connector Pinout Numbers in parentheses indicate numbering of signals on GPIO Connector 2 Signal Signal GPI 1 (7) GPI 1 (7) RTN GPI 2 (8) GPI 2 (8) RTN GPI 3 (9) GPI 3 (9) RTN GPI 4 (10) GPI 4 (10) RTN GPI 5 (11) GPI 5 (11) RTN...
  • Page 121 GPI/O (DB25-F) INTERNAL CIRCUITS GPI 1 GPI 1 RTN GPI 2 GPI 2 RTN GPI 3 GPI 3 RTN INPUTS GPI 4 GPI 4 RTN GPI 5 GPI 5 RTN GPI 6 GPI 6 RTN GPO 1 GPO 2 GPO 3 OUTPUTS GPO 4 GPO 5...

  • Page 122: System Board Ports

    A DVI or VGA compliant computer monitor may be connected to the DVI video port on the server. If a VGA monitor is to be used, the DVI to VGA adapter (included) must be used to make the connection. 360 Systems does not provide a monitor with the server. USB Ports USB ports may be used to connect keyboard, mouse, CXP-5 module and for use when conducting software upgrades.

  • Page 123: Serial Command Protocols

    Appendix B Serial Command Protocols VDCP Command Table The server responds to the following VDCP commands. Shaded areas indicate commands slated for future implementation. COMMAND FROM CONTROLLER RETURN FROM CONTROLLED DISK CMD-1 CMD-2 NAME CMD-1 CMD-2 NAME 0X / 8X Delete Protect ID 0X / 8X Undelete Protect ID...
  • Page 124 Preset CMD-1 CMD-2 NAME CMD-1 CMD-2 NAME Open Port Grant/Denied 3X / BX Next List of ID's Port Status Request State Status Position Request Position 3X / BX Active ID Request Active ID Device Type Req. Device Type Syst. Status Request System Status 3X / BX ID List...

  • Page 125: P2 (Bvw) Serial Command Table

    P2 (BVW) Serial Command Table The server command set includes most BVW-type commands. Commands not implemented include those for DMC operations, audio split and in/out points, and those specifically related to tape as a medium. COMMAND DESCRIPTION RETURN COMMENT 00.11 EVICE EQUEST 00.1...

  • Page 126: Odetics® Protocol

    Odetics® Protocol Odetics serial protocol is an extension of P2 machine control protocol. Among its most significant features is the selection of a file by name rather than by time-code location, as with P2. Odetics protocol is used by many table-top controllers and some automation systems.
  • Page 127 2061 EE O COMMAND DESCRIPTION RETURN COMMENT 4X00 IMER RESET 4X04 RESET 4008 IMER ESET 4010 NTRY 4011 NTRY 4X14 RESET 4X15 RESET 4018 HIFT 4019 HIFT INUS 401A HIFT 401B HIFT INUS 4020 ESET 4021 ESET 402D ESET 4X30 RESET OMMAND HAS NO EFFECT 4X31...
  • Page 128 0X7408 COMMAND DESCRIPTION RETURN COMMENT UB D 0X7409 TC D 0X7809 URRENT ENSE LTC T 0X7414 ORRECTED VITC T 0X7406 0X7400 IMER LTC D 0X7415 VITC D 0X7416 6010 0X7410 6011 0X7411 6012 6013 6020 0X7420 TATUS 6X23 0X7423 IGNAL ONTROL 602E 0X712E...

  • Page 129: Technical Specifications

    Appendix C Technical Specifications Video Video Inputs 75 HD-BNC connector Each input automatically configures for HD or SD Video Outputs 75 HD-BNC connector Each output is independently configurable for HD or SD Automatic Up/Down/Cross conversion of clips to match selected output format. HD Input/Output HD-SDI, Compliant with SMPTE 292M 3G-SDI, Compliant with SMPTE 424M...
  • Page 130 Power & Mechanical Power Supply 100-240 V, 50/60 Hz, 200 W modular power supply 100-240 V, 50/60 Hz, 460 W. Dual, modular, redundant (optional) Mechanical Rack mounting: 1.75” x 19” x 27.75” (44 x 483 x 705 mm) HWD. Cooling Multiple fans Hot swappable Weight Approx 50 lbs (23 Kg) net...

  • Page 131: Keyboard Shortcuts

    Keyboard Shortcuts Transport Control Edit Operations Enter/Exit Edit Mode Forward at 4x, 16x, 64x, 128x Capture Mark In Pause (Stop) Capture Mark Out Reverse at 4x, 16x, 64x, 128x Space Bar Shift+R Review Edit Play/Pause (toggle) Shift+T Review Tail Record Home GoTo Head point Playlist...

  • Page 132: Playlist Management Detail

    Appendix D Playlist Management Detail Playlists can be accessed via the server’s FTP feature, allowing several capabilities: Lists can be backed up on a PC, and sent to another server.  Lists can be viewed and printed from the PC ...
  • Page 133 This is the Start Time in military format, hours, minutes, seconds and frames, without leading zeros. This value shows 13:00:01 or 1 minute past 1 pm. The default is 0 which is 12 midnight. While frames are present in this value, the last two digits should always be “00” when entering any value except 0.
  • Page 134 A list can be edited by: Changing the name of a clip: Clip names are case sensitive. Any clip name that does not  match an existing clip will be reported as MISSING when the list is loaded on the server. This also applies to the name of a subfolder.

  • Page 135: As-Run Logging Detail

    Appendix E As-Run Logging Detail To enable As-Run logs, open a Playlist window, select Options, and then click on As-Run Logs. When enabled, a check mark will appear next to the As-Run log label, and files played by a playlist will be written to an As-Run log. Clips played in a transport window do not get written to an as-run log.

  • Page 136: As-Run Log Page Header

    As-Run Log Page Header This section describes the format of the first line (page header): IS-76152 as-run (Ch2:KQRS) Engr Wed Feb 02, 2009 [Wednesday PM] Pg 1 : IS-XXXXX, where XXXXX is the unique machine ID as shown in Help>About>Unit ID. IS-76152 ChX is the channel number and KQRS is the name of the specific channel, as as-run (Ch2:KQRS):...

  • Page 137: Mechanical Drawing

    Appendix F Mechanical Drawing Figure 47: Dimensional Drawing TSS MINI Operations Manual Page 137...

  • Page 138: Index

    Fax ................112 Renaming ..............60 Telephone ..............112 Sorting ................. 60 Website ..............112 Configuring the Network ........... 55 Address, 360 Systems ..........112 Connector Pinout Appending a Playlist............. 74 GPI ................120 Applications ..............16 Serial Control ............119 Arm Start Time..............
  • Page 139 LEDs ................107 Mark In Point Button ........... 50 File Menu ................34 Mark Out Point Button ..........50 in Transport View ............. 32 Mechanical Concerns ..........109 File types supported ............. 84 Mechanical Drawing ..........138 Filtering the Clip Display ..........61 Menu Finding Clips ..............
  • Page 140 Home ................72 Command Table ............ 124 Jumping ............... 71 P2 ................. 126 Loading ................ 70 VDCP ................124 Looping ................ 71 Service Management ............133 Access ................ 108 Mapping GPO ............75 Front Panel ............... 108 Pausing ................. 70 Top Cover ..............
  • Page 141 Firmware Updates ..........112 Video Format Selection ........37, 38 Program Updates ..........110 Video Inputs ..............25 Vari-Play 0 Equals Pause ..........94 Video Outputs ..............25 Vari-Play 1X Equals Play ..........94 Video Sync Source Setting ........36 VDCP Warranty .................

This manual is also suitable for:

Tss mini 2200

Table of Contents
