 12~24 VAC/VDC
 Program up to 60 flexible events
 Holiday function (up to 99 days)
 Easy-to-read backlit LCD
 Adjustable output time
 Programmable security code
lock out
 12 or 24 hr clock format
*Preserves clock time only. External power must be present for relay to function.

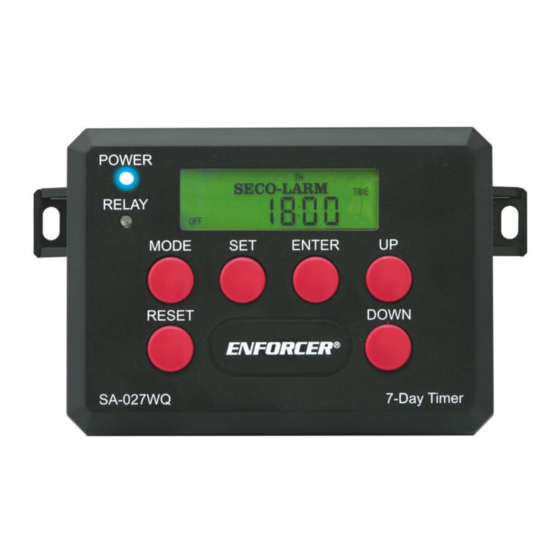

SA-027WQ
7-Day Timer
Manual
Automate the following:
 16 Schedules including daily,
weekly, weekends, etc.
 Memory saved if power fails
 Backup battery included*
 Covered terminal blocks
 Form C relay output
(10A@120VAC/298VDC)
 Egress input terminal
