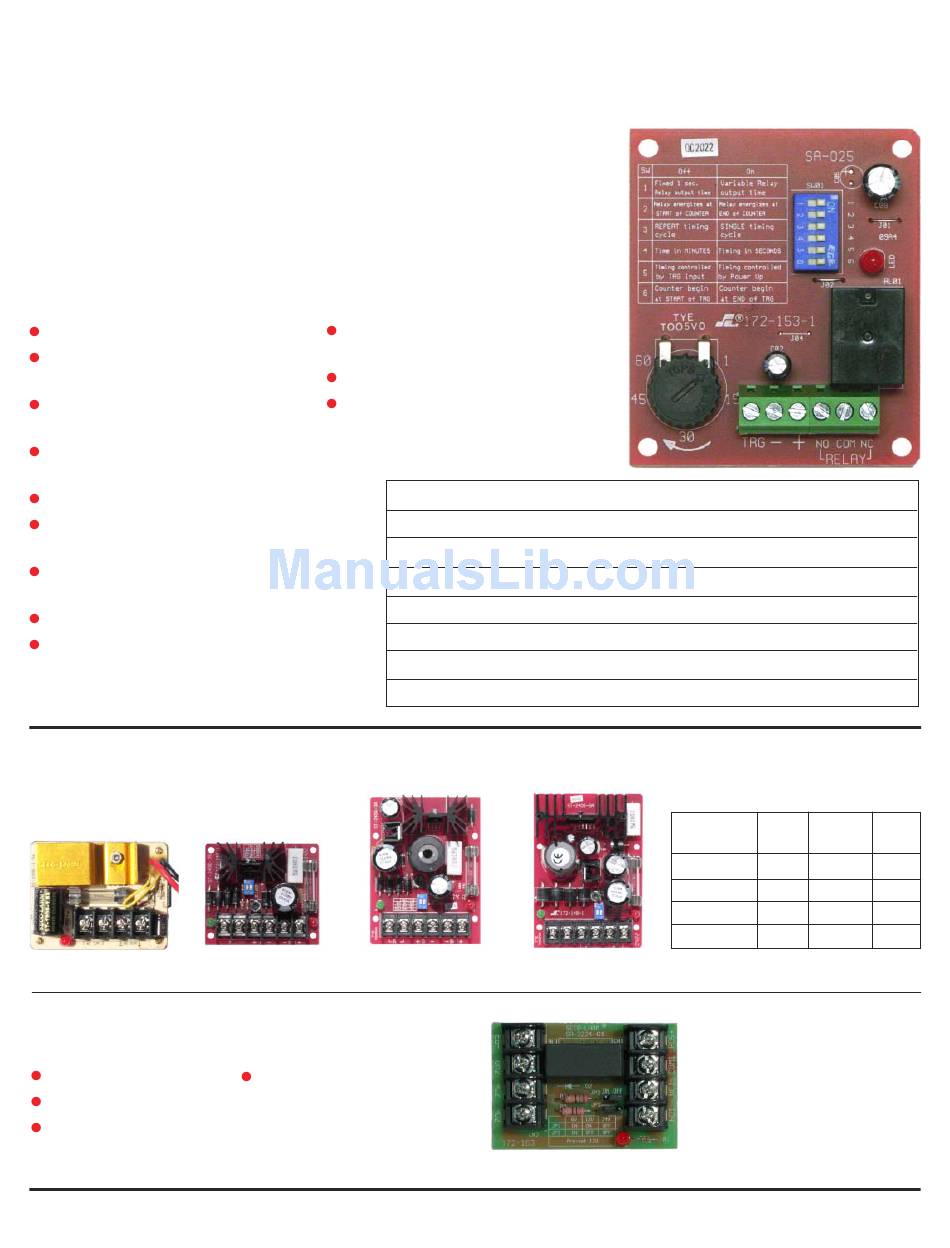

SECO-LARM Enforcer SA-025 Specification Sheet

ENFORCER
SA-025 Timer Module
The SA-025 Programmable Timer Module is suitable for a wide range
of timed security and access control operations, such as door unlock
timing, siren or bell timer, and so on. Auto-sensing of input voltage
and DIP switches for programming make installation easy.
Timer can be set from 1 sec. to 60 minutes
Can be triggered by positive voltage (+DC),
or closure or opening of dry contact.
Relay can be programmed to activate at the
start or at the end of the timing cycle
Relay can also be set to activate for one
second at the end of the timing cycle
Programmable for pulse (flash) activation
Built-in reset function to manually reset
timing cycle
Form-C relay, contacts rated 8A @
120VAC/24VDC
LED indicates relay is energized
12VDC/24VDC operation (auto sensing)
Other Products Available from SECO-LARM
Power Supply/Chargers
ST-1206-1.5A ST-2406-2A
Relay Board
SR-2224-C5
5-Amp relay, DPDT, Form-C.
6/12/24 VDC operation.
LED indicates power.
The SECO-LARM policy is one of continual development and improvement. For that reason, SECO-LARM reserves the right to change specifications without notice. SECO-LARM is not responsible for misprints.
For more information, contact:
Tel: 1-949-261-2999 (California & international) Fax: 1-949-261-7326 Email: info@seco-larm.com Website: www.seco-larm.com
Current draw - 3mA (standby) or 40mA
(relay energized)
Board measures 2
Functions programmed via DIP switches -
no jumpers to cut
DIP switch settings
SwitchFunction
#1 Timing starts:
#2 How does the timing start?
#3 Timer setting:
#4 Steady relay output, or pulse/flash?
#5 When does the relay output start?
#6 Relay output mode, delayed or instant?
ST-2406-3A
Relay can be wired for load
switching, dry contact, latching,
reverse polarity, line seizure, etc.
Tel: 1-800-662-0800 (domestic U.S. & Canada)
/ " x 2 / " (73 x 63 mm)
7 1
8 2
ON
At end of trigger
When the module is powered up Connecting (+) to TRG
In seconds
Steady relay output
At end of timing period
Instant output
ST-2406-5A
®
OFF
At start of trigger
In minutes
Pulse/flash output
At start of timing period
Delayed output
Voltage Current
Model #
DC (continuous)
ST-1206-1.5A 6,12 1.5A
ST-2406-2A 6,12,24 1.5A
ST-2406-3A 6,12,24 2.5A
ST-2406-5A 6,12,24 4.0A
Plus many, many other
products for commercial,
residential and vehicle
security. See our website for
details, or contact us for a
catalog .
Current
(peak)
2.0A
2.0A
3.0A
5.0A
