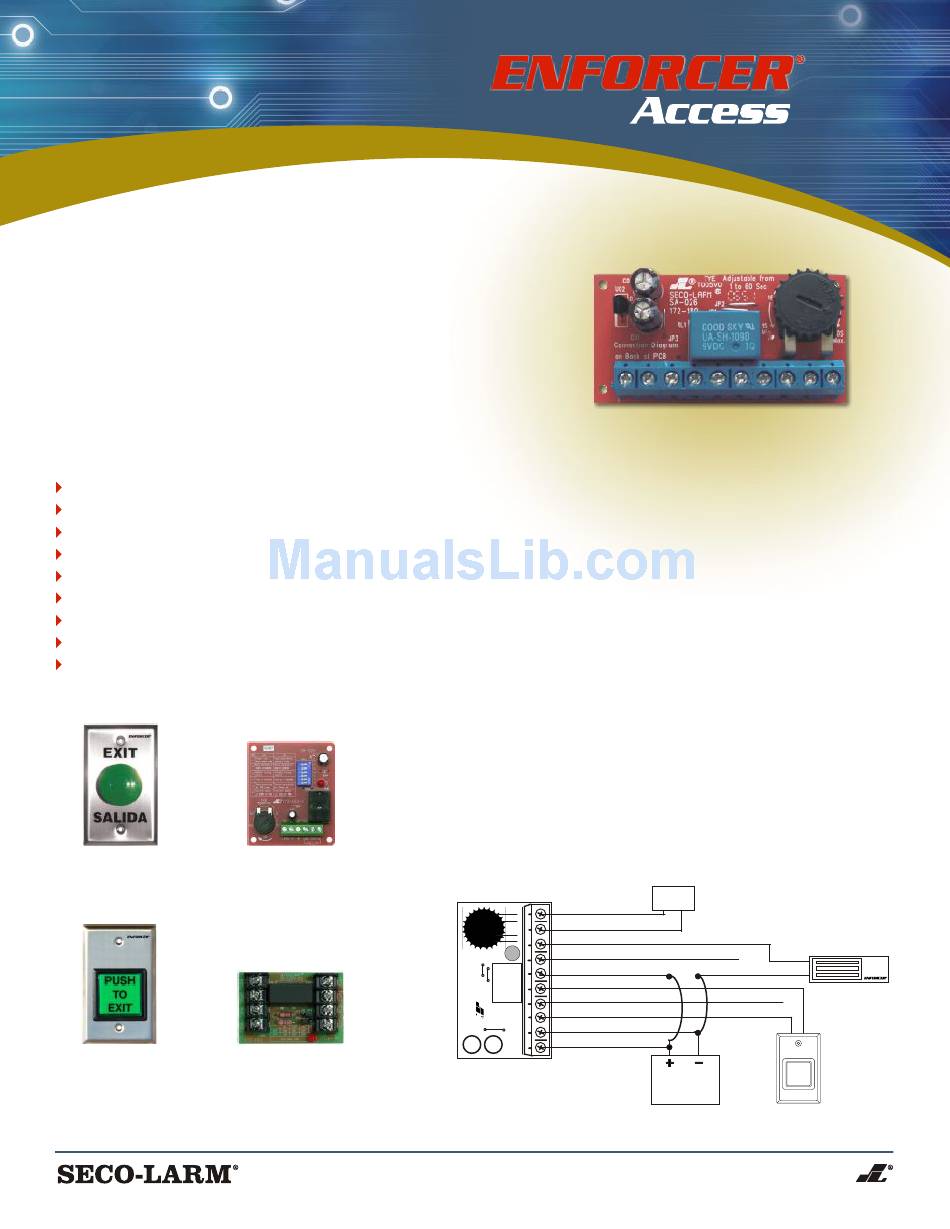

SECO-LARM Mini Timer Module SA-026 Specification Sheet

Mini Timer Module
SA-026
The ENFORCER SA-026 is a low-voltage miniature delay timer module
which operates on 12 to 24 volts AC or DC. This timer module will extend
the activation time of a momentary contact switch for 1~60 seconds
via a field-adjustable rotary pot. It is ideal for electrical locks which do
not have a built-in time delay function. Its compact size makes it small
enough to fit in a single-gang box or inside a door frame cavity.
Features:
Adjustable timer from 1~60 seconds via a pot on board.
N.O./N.C. switch trigger.
Compact design: 1.2" X 2.28" X 0.62" (30 x 58 x 16 mm)
Operating voltage: 12~24 volts AC or DC.
Current: 2mA (stand-by), 75mA (active).
Relay output: Form-C (SPDT) via terminal blocks.
Contact rating: 2 Amps @ 24VDC.
With built-in beeper output (100mA @ 24VDC).
Includes double-sided foam tape.
Also available:
SD-7201GA-PT1
Push-T o-Exit Plate with
Built-in Timer
SD-7202GC-PT
Illuminated Push-T o-Exit
Plate with Built-in Timer
Copyright 2007 SECO-LARM U.S.A., Inc. All rights reserved.
The SECO-LARM policy is one of continual development. For that reason, SECO-LARM reserves the right to change prices and specifications without notice. SECO-LARM is not responsible for misprints.
16842 Millikan Avenue, Irvine, CA 92606
SA-025
Multi-Function
Programmable Timer
SR-2224-C5
DPST Relay Board
1.949.261.2999 (CA & Int'l)
Email: info@seco-larm.com
Sample Connection Diagram:
For Fail-Safe Electronic Locks
(Buzzer,
- )
(Buzzer, ) +
Relay O/P (N.C.)
Relay O/P (N.O.)
Relay O/P(COM)
TRG .(COM)
TRG.(N.C.)
TRG .(N.O.)
Power (non polarity)
Power (non polarity)
SA-026
1.800.662.0800 Fax: 1.949.261.7326
Website: www.seco-larm.com
(Actual size)
Beeper
+
-
Electrical exit
locking devices
such as magnetic locks
To N.C. device
and electric strikes.
To N.O. device
To N.C. switch
To N.O. switch
Trigger Devices:
Push-to-Exit
PUSH
12~24 volts TO
Keypads, Control
EXIT
AC or DC
Panels, etc.
Power Supply
SA-026TIMERMODULE.cdr
Switches,
