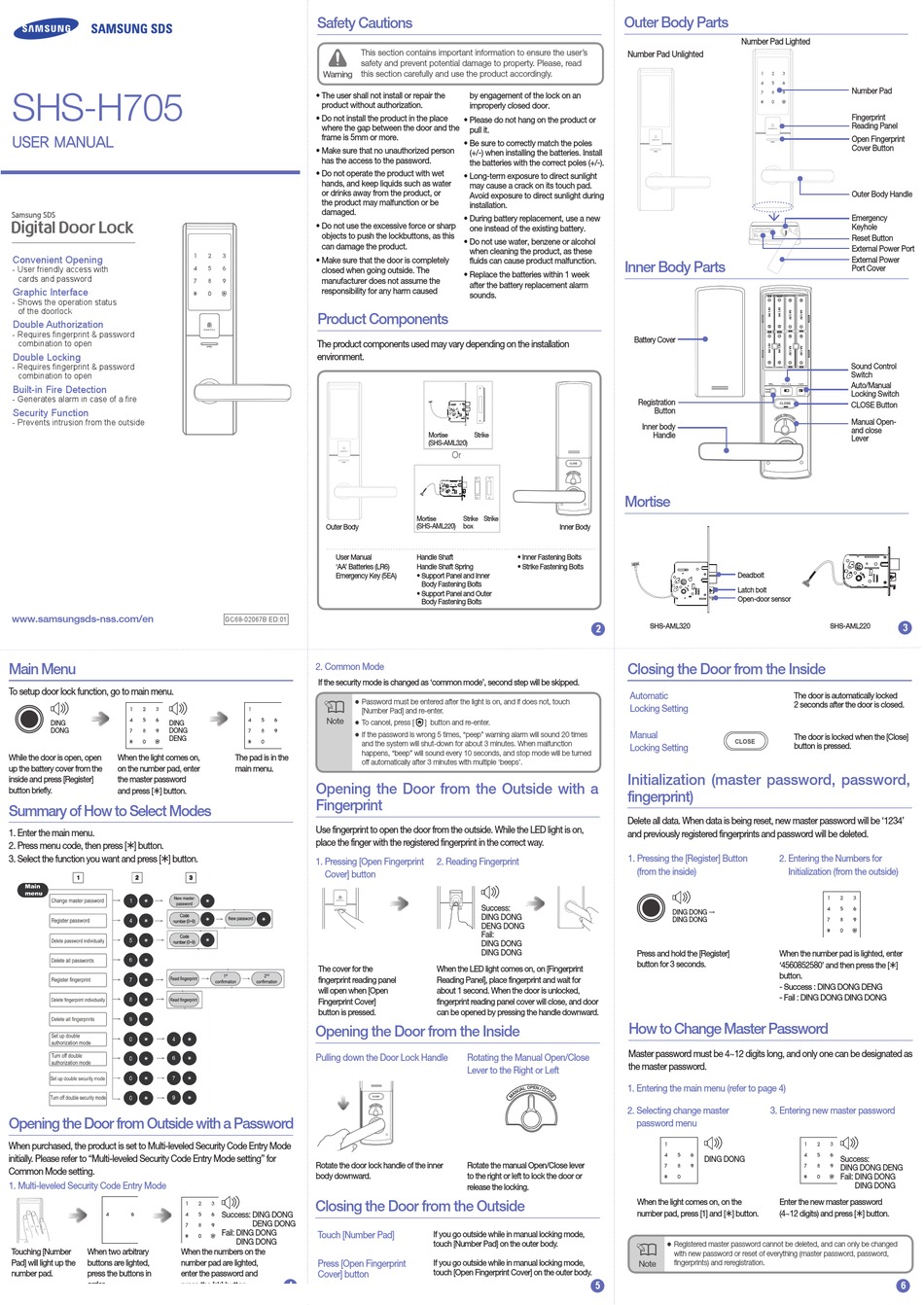

Samsung SHS-H705 User Manual

SHS-H705
Convenient Opening
- User friendly access with
cards and password
Graphic Interface
- Shows the operation status
of the doorlock
Double Authorization
- Requires fingerprint & password
combination to open
Double Locking
- Requires fingerprint & password
combination to open
Built-in Fire Detection
- Generates alarm in case of a fire
Security Function
- Prevents intrusion from the outside
www.samsungsds-nss.com/en

Main Menu

To setup door lock function, go to main menu.
DING DING
DONG DONG
DENG
While the door is open, open When the light comes on,
up the battery cover from the on the number pad, enter
inside and press [Register] the master password
button briefly. and press [] button.
Summary of How to Select Modes
1. Enter the main menu.
2. Press menu code, then press [] button.
3. Select the function you want and press [] button.
Opening the Door from Outside with a Password
When purchased, the product is set to Multi-leveled Security Code Entry Mode
initially. Please refer to "Multi-leveled Security Code Entry Mode setting" for
Common Mode setting.
1. Multi-leveled Security Code Entry Mode
Touching [Number When two arbitrary When the numbers on the
Pad] will light up the buttons are lighted, number pad are lighted,
number pad. press the buttons in enter the password and
order.
press the [] button.

Safety Cautions

This section contains important information to ensure the user's
safety and prevent potential damage to property. Please, read
this section carefully and use the product accordingly.
Warning
• The user shall not install or repair the
product without authorization.
• Do not install the product in the place
where the gap between the door and the
frame is 5mm or more.
• Make sure that no unauthorized person
has the access to the password.
• Do not operate the product with wet
hands, and keep liquids such as water
or drinks away from the product, or
the product may malfunction or be
damaged.
• Do not use the excessive force or sharp
objects to push the lockbuttons, as this
can damage the product.
• Make sure that the door is completely
closed when going outside. The
manufacturer does not assume the
responsibility for any harm caused
Product Components
BIOMETRICS
The product components used may vary depending on the installation
OPEN
environment.
BIOMETRICS
OPEN
Outer Body
User Manual
'AA' Batteries (LR6)
Emergency Key (5EA)
GC68-02067B ED:01
2. Common Mode
If the security mode is changed as 'common mode', second step will be skipped.
●
Password must be entered after the light is on, and if does not, touch
[Number Pad] and re-enter.
Note
●
To cancel, press [
●
If the password is wrong 5 times, "peep" warning alarm will sound 20 times
and the system will shut-down for about 3 minutes. When malfunction
happens, "beep" will sound every 10 seconds, and stop mode will be turned
The pad is in the
off automatically after 3 minutes with multiple 'beeps'.
main menu.
Opening the Door from the Outside with a
Fingerprint
Use fingerprint to open the door from the outside. While the LED light is on,
place the finger with the registered fingerprint in the correct way.
1. Pressing [Open Fingerprint
Cover] button
BIOMETRICS
OPEN
The cover for the
fingerprint reading panel
will open when [Open
Fingerprint Cover]
button is pressed.
Opening the Door from the Inside
Pulling down the Door Lock Handle
Rotate the door lock handle of the inner
body downward.
Closing the Door from the Outside
Success: DING DONG
DENG DONG
Fail: DING DONG
Touch [Number Pad]
DING DONG
Press [Open Fingerprint
Cover] button
4
by engagement of the lock on an
improperly closed door.
• Please do not hang on the product or
pull it.
• Be sure to correctly match the poles
(+/-) when installing the batteries. Install
the batteries with the correct poles (+/-).
• Long-term exposure to direct sunlight
may cause a crack on its touch pad.
Avoid exposure to direct sunlight during
installation.
• During battery replacement, use a new
one instead of the existing battery.
• Do not use water, benzene or alcohol
when cleaning the product, as these
fluids can cause product malfunction.
• Replace the batteries within 1 week
after the battery replacement alarm
sounds.
Mortise Strike
(SHS-AML320)
Or
Mortise Strike Strike
(SHS-AML220) box
Inner Body
Handle Shaft • Inner Fastening Bolts
Handle Shaft Spring • Strike Fastening Bolts
• Support Panel and Inner
Body Fastening Bolts
• Support Panel and Outer
Body Fastening Bolts
] button and re-enter.
2. Reading Fingerprint
Success:
OPEN
DING DONG
DENG DONG
Fail:
DING DONG
DING DONG
When the LED light comes on, on [Fingerprint
Reading Panel], place fingerprint and wait for
about 1 second. When the door is unlocked,
fingerprint reading panel cover will close, and door
can be opened by pressing the handle downward.
Rotating the Manual Open/Close
Lever to the Right or Left
Rotate the manual Open/Close lever
to the right or left to lock the door or
release the locking.
If you go outside while in manual locking mode,
touch [Number Pad] on the outer body.
If you go outside while in manual locking mode,
touch [Open Fingerprint Cover] on the outer body.
Outer Body Parts
Number Pad Lighted
Number Pad Unlighted
BIOMETRICS
BIOMETRICS
OPEN
Inner Body Parts
Battery Cover
Registration
Button
Inner body
Handle
Mortise
Deadbolt
Latch bolt
Open-door sensor
2 SHS-AML320
Closing the Door from the Inside
Automatic
Locking Setting
Manual
Locking Setting
Initialization (master password, password,
fingerprint)
Delete all data. When data is being reset, new master password will be '1234'
and previously registered fingerprints and password will be deleted.
1. Pressing the [Register] Button
(from the inside)
DING DONG →
DING DONG
Press and hold the [Register]
button for 3 seconds.
How to Change Master Password
Master password must be 4~12 digits long, and only one can be designated as
the master password.
1. Entering the main menu (refer to page 4)
2. Selecting change master
password menu
DING DONG
When the light comes on, on the
number pad, press [1] and [] button.
●
Registered master password cannot be deleted, and can only be changed
with new password or reset of everything (master password, password,
Note fingerprints) and reregistration.
5
Number Pad
Fingerprint
Reading Panel
Open Fingerprint
OPEN
Cover Button
Outer Body Handle
Emergency
Keyhole
Reset Button
External Power Port
External Power
Port Cover
Sound Control
Switch
Auto/Manual
Locking Switch
CLOSE Button
Manual Open-
and close
Lever
3
SHS-AML220
The door is automatically locked
2 seconds after the door is closed.
The door is locked when the [Close]
button is pressed.
2. Entering the Numbers for
Initialization (from the outside)
When the number pad is lighted, enter
'4560852580' and then press the []
button.
- Success : DING DONG DENG
- Fail : DING DONG DING DONG
3. Entering new master password
Success:
DING DONG DENG
Fail: DING DONG
DING DONG
Enter the new master password
(4~12 digits) and press [] button.
6
