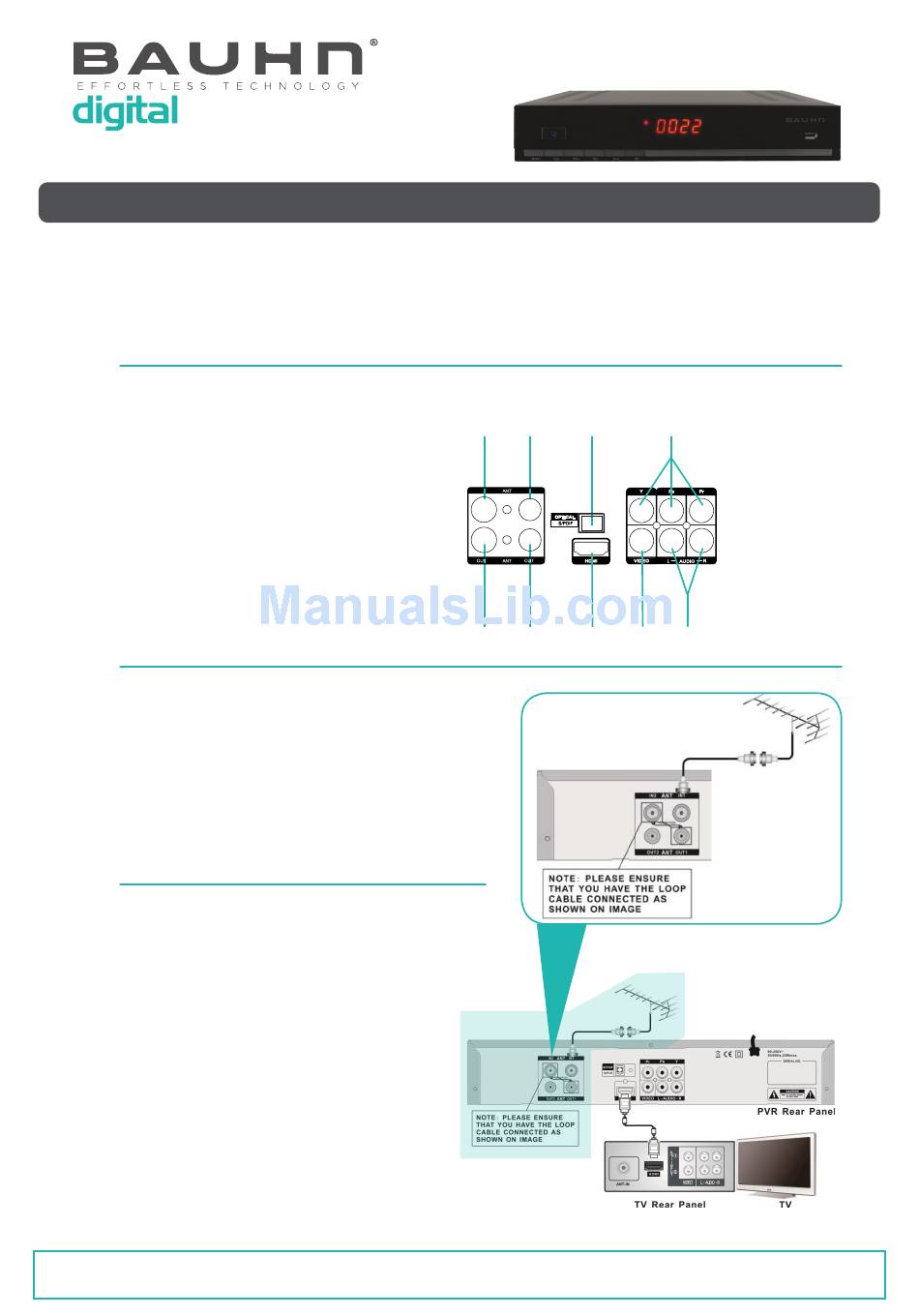

Bauhn APVR-014 Quick Start Manual

1TB HDD PVR with Twin HD Tuner
QUICK START GUIDE
1

PARTS LIST

In the box you will find:
1 x 1TB HDD PVR with Twin HD Tuner
1 x Remote Control
1 x Composite AV Cable
2

CONNECTIONS

1. Antenna Input 2
2. Antenna Input 1
3. Optical S/PDIF Output
4. YPbPr Component Output
5. Antenna Output 2
6. Antenna Output 1
7. HDMI Output
8. Composite Video Output
9. Left/Right Audio Output
3

TWIN-TUNER FUNCTION

• Make sure you have the supplied loop
cable connected as shown on the image
on the right. The loop cable is required to
record two channels at the same time.
• Insert the female jack of the loop cable to
the OUT1 socket and the male jack to the
IN2 socket.
4

HDMI CONNECTION

• Connect a HDMI cable (not included)
from the HDMI output on the rear panel
of the PVR to the corresponding HDMI
input of your HD TV or amplifier using
the HDMI cable for both video and audio
connections.
NOTE:
• A HDMI cable is NOT supplied with this
product.
• If a HDMI cable is not available, please
refer to pages 6-7 of the Instruction
Manual for Composite Video and YPbPr
connection options.
Read the full instruction manual before use. This Quick Start Guide only gives basic usage instructions.
