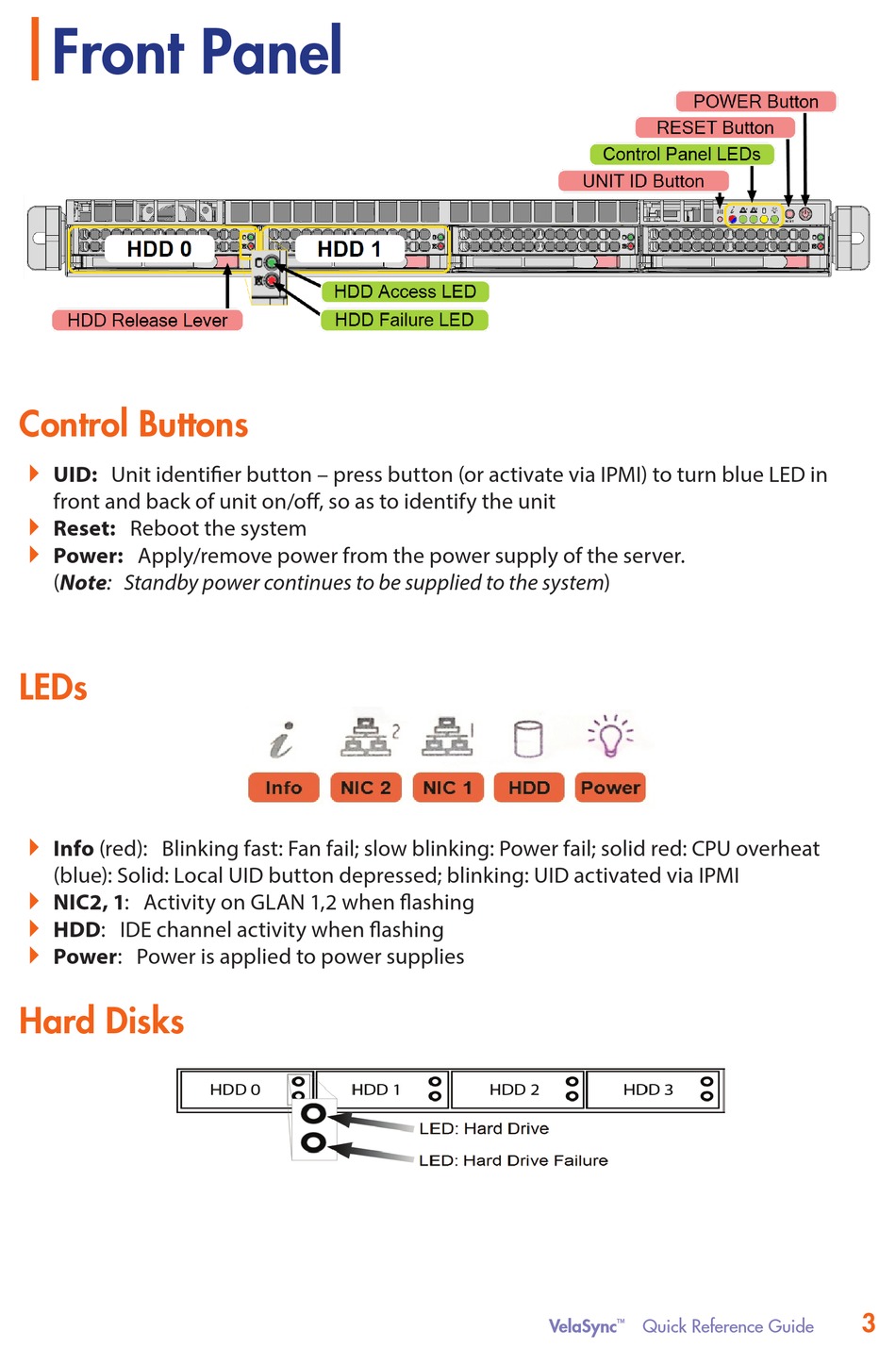

Front Panel
Control Buttons
UID: Unit identifier button – press button (or activate via IPMI) to turn blue LED in
�
front and back of unit on/off, so as to identify the unit
�
Reset: Reboot the system
�
Power: Apply/remove power from the power supply of the server.
(Note: Standby power continues to be supplied to the system)
LEDs
Info (red): Blinking fast: Fan fail; slow blinking: Power fail; solid red: CPU overheat
�
(blue): Solid: Local UID button depressed; blinking: UID activated via IPMI
�
NIC2, 1: Activity on GLAN 1,2 when flashing
�
HDD: IDE channel activity when flashing
Power: Power is applied to power supplies
�
Hard Disks
VelaSync
Quick Reference Guide
™
3
