Mechanical Installation

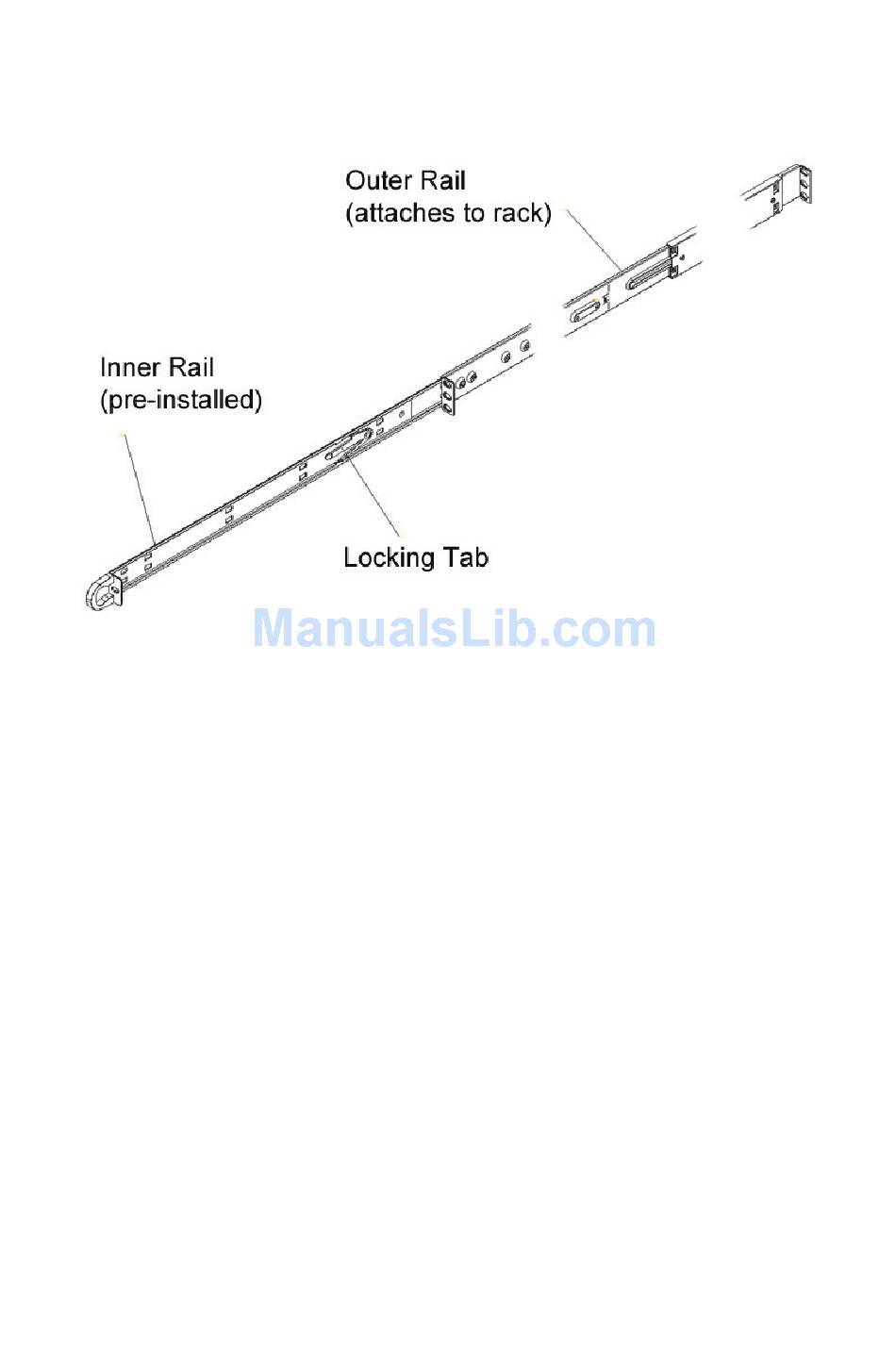

Each of the two rack rail assemblies comprise an inner chassis rail (pre-installed to the
server chassis), and an outer rail that needs to be mounted to the rack:
1.
Measure the distance from the front rail to the rear rail of the rack. Attach a short
bracket to the front side of each of the outer rails, and a long bracket to the rear side
of each outer rail.
2.
Adjust both the short, and the long brackets to the distance measured earlier so that
the rails fit snugly into the rack. Secure the short bracket to the front side of the outer
rail with two screws, and the long bracket to the rear side of the outer rail with three
screws. Take note of the locking tabs, which prevent the server from sliding out too far
out of the rack.
3.
Line up the rear of the inner rails at the chassis with the front of the outer rails at the
rack. Slide the server chassis into the rack, keeping the pressure even on both sides.
Depress the locking tabs, if needed (they will click upon proper engagement).
TELCO rack installation
mine a balanced front-to-back position of the chassis. Remove bezel from server, if installed.
Attach the two front brackets to each side of the chassis, then the two rear brackets, leaving
enough space to accommodate the width of the telco rack. Slide the chassis into the rack,
and tighten the brackets to the rack.
: Use two L-shaped brackets on either side of the chassis. Deter-
