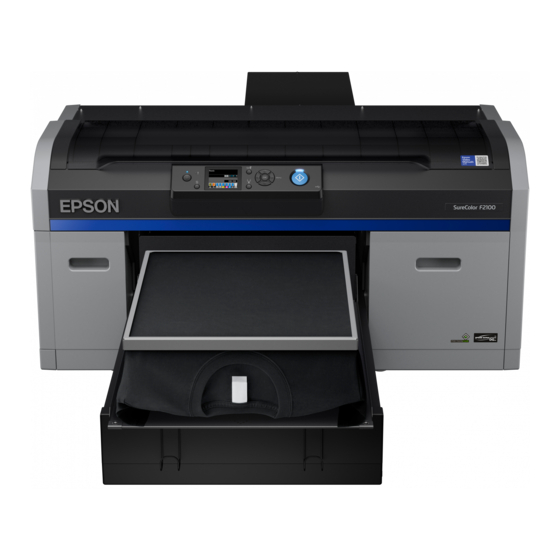

Epson
SureColor
®

Start Here

Read these instructions before using your product.

Choose a Location for the Printer

Choose a location for the printer that is near a wall outlet where the plug can
be easily unplugged. Avoid places subject to rapid changes in temperature and
humidity. Also keep the printer away from direct sunlight, strong light, or heat
sources.
Make sure to place the printer on a flat, stable surface with enough space on
all sides (see illustrations below). The surface supporting the printer should
be wider than the space between the rubber feet on the bottom of the printer,
at least 2 feet (60 cm) off the ground, and capable of supporting at least 220
pounds (100 kg).
1.26 in.
(3.2 cm)
29.53 in.
5.90 in.
(75 cm)
(15 cm)
19.68 in.
23.62–31.50 in.
(50 cm)
(60–80 cm)
47.24 in.
(120 cm)
2.55 in.
(6.5 cm)

Unpack

1
Make sure you have these items:
Printer
Medium platen
and hoop
Ink/cleaning
Maintenance kit
cartridges
Ink charging unit
Grip pad tool
Note:
See the online User's Guide for information on installing the grip
pad, using the grip pad tool, installing the platen hoop hooks, and using the
maintenance kit and tweezers.
F2100 Series
®
23 in.
(58.5 cm)
2.95 in.
(7.5 cm)
78.74 in.
(200 cm)
Platen hoop
Grip pad
hooks
Waste ink bottle
Waste ink tube
Caution
Tweezers
Waste ink
bottle holder
Power cord
Limited
Tube/cable clamps
warranty
2
Remove all the packaging materials and tape. Check carefully for all the
tape inside and outside the printer and platen.
WARNING:
requires three people to lift and move it. Make sure to grip the printer where
indicated by the gray stickers as shown in the illustration. When moving the
printer, do not tilt it more than 10 degrees.
3
Remove the carriage lock and store it in a safe place.
Note:
Do not throw the carriage lock away; you will need it if you transport
the printer.
4
28 in.
Open the printer cover and press down on the parts as shown to make
(71.1 cm)
sure they are secure. Then close the printer cover.

Assemble the Printer

1
Remove the plugs from the waste ink outlets on the back of the printer
and store them in a safe place.
Note:
Do not throw the plugs away; you will need them if you transport the
printer.
2
Connect the waste ink tube. Make sure that the longer end of the tube
is connected to the waste ink outlet on the left side and the shorter end
is connected to the waste ink outlet on the right side.
label
Note:
Make sure the tubes point downward and are not twisted to ensure
proper ink drainage.
The printer weighs about 185 pounds (84 kilograms) and
Stickers
