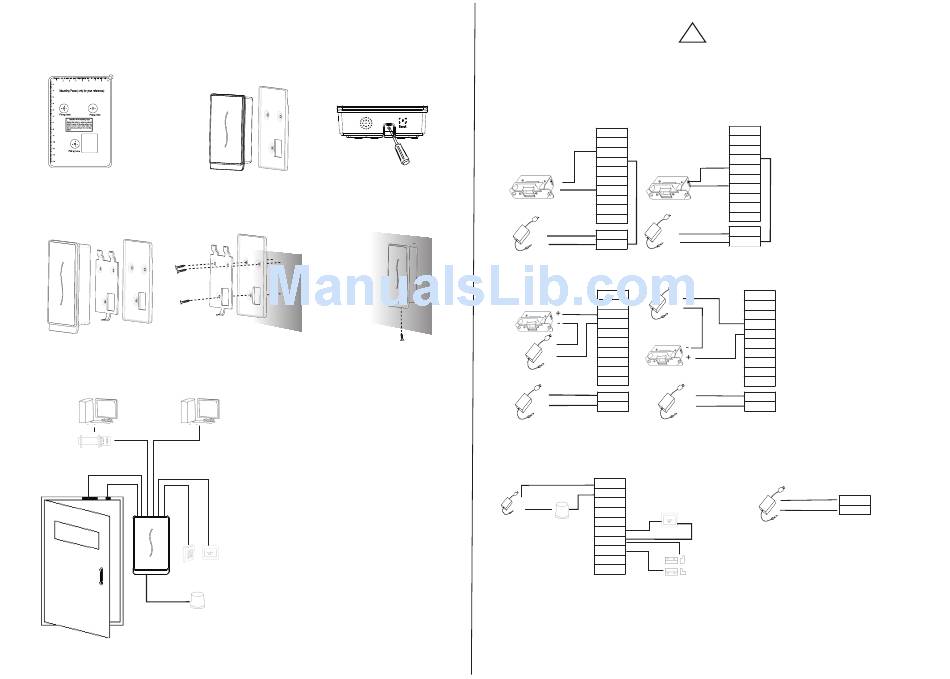

ZKTeco SCR100 Installation Manual

Installation Guide for SCR100 Device

I. Install device
1)Post the mounting template on
2)Take off the water-proof cushion
the wall. Drill holes according to
the marks on the template.(Holes
for screw and wiring)
5)Fix the cushion and plate on
4) Release the mounting plate
the wall
II. Access control system overview
⑥
RS485 Tcp/Ip
RS232/RS485
Converter
① ②
Lock Door
sensor
④
Card
reader
③
Alarm
3) Take away the screw on
the bottom of device
6) Fix the device with the plate
after all wiring completed
Access control system
① When a registered person verified, the access control device
will export signal to open the door.
② Door sensor will detect on-off state to sense whether the door
is opened by accident or the door is not closed well, alarm will
be given off under abnormal condition.
③If access control device is torn down illegally, or door sensor
is abnormal, or menace alarm gives off, the device will export
alarm signal.
⑤
④ Connect a Weigand reader to work as a controller.
⑤Access control device can be connected with external out-go
switch, which provides convenience to open door from the inside.
Release
⑥Access control software to manage multi devices via RS485
button
or TCP/IP.
III. Connect to door lock
The device could connect to NC or NO locks, the connection terminal is not same, please according to the following
diagram to make connection.
1）device and lock share power supply
AL-
AL+
NC
COM
NC lock
NO lock
NO
+
BUT
-
GND
SES
BELL+
BELL-
-
GND
+12V
+
DC12V
DC12V
2）device and lock don't share power supply
AL-
AL+
NC lock
NC
COM DC Power
NO
-
BUT
GND
+
SES
BELL+
DC Power
NO lock
BELL-
-
GND
+
+12V
DC Power DC Power
Ⅳ. Connection with other device
AL-
AL+
-
Release
NC
button
+
COM
NO
Alarm
Alarm
power
BUT
GND
SES
BELL+
BELL-
Door sensor
Notice:
1)The rating output of the alarm no more than DC12V.
2)The device has no bell button,so BELL+ and BELL-
terminals don't work temporarily.
！
Warning: Don't connect wires with power on!
AL-
AL+
NC
COM
NO
+
BUT
Notice:If lock's working power is DC12V,
-
GND
and working current is least 1000mA less
SES
than that of access control device power
BELL+
supply, wiring with sharing power supply
BELL-
can be adopted.
-
GND
+12V
+
AL-
+
-
AL+
Notice: Wiring with lock power supplied
NC
independently is recommended for the
COM
following states:
NO
1) Lock's working power is DC 12V,
BUT
device power's current is
GND
than that of lock.
SES
2)Lock's standard voltage is not DC12V.
BELL+
BELL- 3)The distance between lock and device
is long.
-
GND
+ +12V
Ⅴ.Power connection
-
GND
+12V
+
DC12V
The device's working voltage is DC12V, with
working current 500mA,standby current 50mA .
Make sure the connection as the diagram(Don't
connect the poles in reverse.).
not 1A more
