TEST MODE
To test the detection coverage:
During the TEST mode, the controlled load turns ON for 5 seconds each time the
sensor detects occupancy.
1. Press and hold the ON/OFF button. After 10 seconds the lighted switch
flashes. The load turns ON if it was not already ON. The sensor is now in a
TEST mode that lasts 5 minutes. (You can end the TEST mode sooner by
pressing the ON/OFF button for another 10 seconds).
2. Move out of the coverage area or stand very still. The controlled load turns
OFF after 5 seconds, if no motion is detected.
3. Move into the coverage area. The controlled load turns ON for 5 seconds each
time the sensor detects motion. After 5 seconds expire without motion
detection, the load turns OFF. The controlled load turns ON automatically with
the next motion detection and stays ON for 5 seconds.
4. Repeat as necessary to ensure that the desired coverage areas are within
detection range.
TROUBLESHOOTING
Load will not turn ON (lighted switch is visible):
• Move in front of the sensor to automatically turn lights ON. If lights do not
turn ON, press the ON/OFF button. The lighted switch should turn OFF and
the controlled load should turn ON, if not:
• Check the light bulb.
• Turn OFF power to the circuit then check wire connections.
• Remember that if the load is turned OFF manually, Automatic-ON is
reenabled only after no motion is detected for 5 minutes.
Light will not turn ON (lighted switch is NOT visible):
• Check the light bulb.
• Make certain that the circuit breaker is ON and functioning.
• Turn OFF power to the circuit then check wire connections.
Visit our website at: www.passandseymour.com
Load will not turn OFF:
The time delay is 5 minutes (fixed time delay).
• Make sure no motion occurs in the coverage area until the time delay
expires.
• If the load does not turn OFF, call Technical Support at 800.223.4185.
• Hot air currents and heat radiant devices can cause false detection. Make
sure the sensor is at least 6 feet (2 meters) away from devices that are a
significant heat source (e.g heater, heater vent, high wattage light bulb).
• Press the ON/OFF button. If the controlled load does not turn OFF, turn OFF
the power to the circuit, then check wire connections.
Limited FIVE YEAR Warranty
Pass & Seymour/Legrand will remedy any defect in workmanship or material in Pass & Seymour/Legrand
products which may develop under proper and normal use within five years from the date of purchase by a
consumer:
(1) by repair or replacement, or, at Pass & Seymour/Legrand's option, (2) by return of an amount equal to the
consumer's purchase price. Such remedy is IN LIEU OF ANY AND ALL EXPRESSED OR IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Such remedy by Pass & Seymour/Legrand does
not include or cover cost of labor for removal or reinstallation of the product. ALL OTHER FURTHER ELEMENTS
OF DAMAGE (INCIDENTAL OR CONSEQUENTIAL DAMAGES) FOR BREACH OF ANY AND ALL EXPRESSED OR
IMPLIED WARRANTIES INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE ARE EXCLUDED HEREBY. (Some states do not allow disclaimer or exclusion or limitation of incidental
or consequential damages, so the above disclaimers and limitation or exclusion may not apply to you.) ANY
IMPLIED WARRANTIES INCLUDING WHERE REQUIRED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR
A PARTICULAR PURPOSE SHALL BE LIMITED TO THE FIVE YEAR PERIOD SET FORTH ABOVE. (Some states do
not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you.)
To ensure safety, all repairs to Pass & Seymour/Legrand products must be made by Pass & Seymour/Legrand or
under its specific direction. Procedure to obtain performance of any warranty obligation is as follows: (1) Contact
Pass & Seymour/Legrand, P.O. Box 4822, Syracuse, NY 13221 for instructions concerning return or repair;
2) return the product to Pass & Seymour/Legrand, postage paid, with your name and address and a written
description of the installation or use of the Pass & Seymour/Legrand product, and the observed defects or failure
to operate, or other claimed basis for dissatisfaction.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
P.O. Box 4822, Syracuse, NY 13221-4822
Technical Support: 800.223.4185 • www.passandseymour.com
340802 Rev. B 08131
Please read all instructions before installing

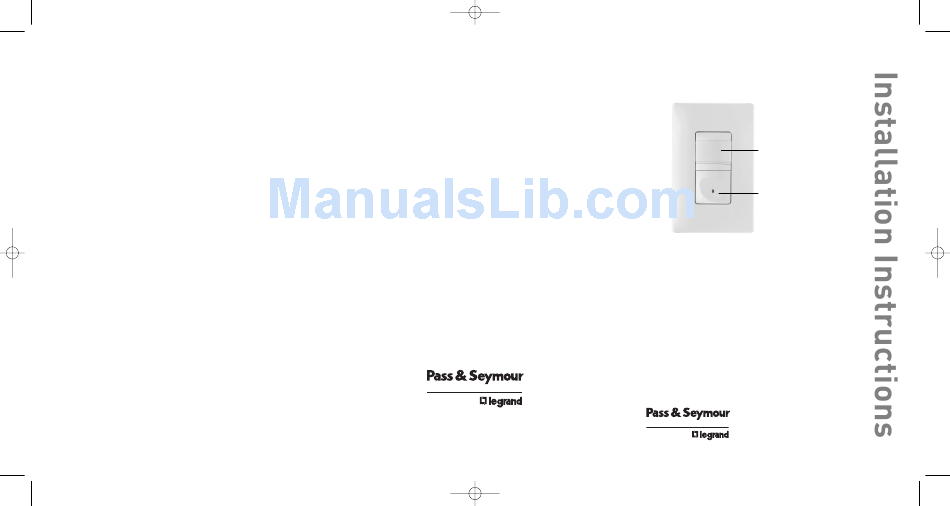

RWU600U
PIR Occupancy Sensor Switch
with Manual
ON/OFF
Lens
Lighted Switch
ON/OFF button
SPECIFICATIONS
Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .120VAC, 60Hz
Load (Single Pole Circuit)
Incandescent or fluorescent light . . . . . . . . . . . 0-600 Watt
Fan motor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1/6 hp
Time Delay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 minutes
Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . .Indoor use only
Operating Temperature . . . . . . . .32° to 131°F (0° to 55°C)
Humidity . . . . . . . . . . . . . . . . . . . .95% RH, non-condensing
Tools Needed:
Insulated Screwdriver
Wire Strippers
