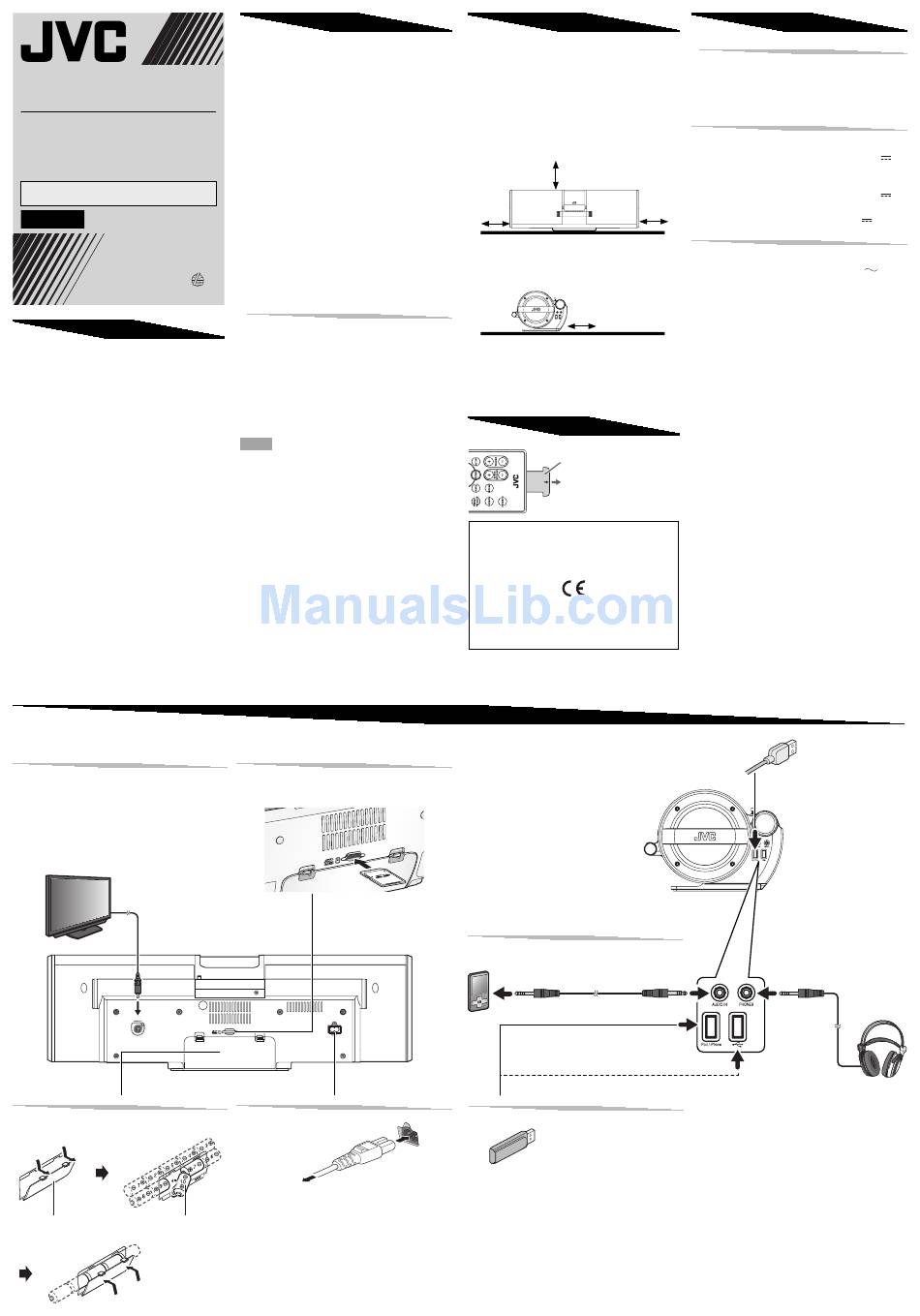

JVC RV-S5B Quick Manual

POWERED WOOFER
SYSTEM
RV-S5B/RV-S3DB/
RV-S1B/RV-S1W
Thank you for purchasing a JVC product.
English
QUICK GUIDE
LVT2392-001A [E]
1112SKYMDWANA
© 2012 JVC KENWOOD Corporation
Accessories
Check that you have all the following items,
which are supplied for the System.
• AC power cord .........................................................1
• Remote control ........................................................1
• Lithium coin battery CR2025 ..............................1
(The battery has been installed in the remote
control when shipped from the factory)
• CD-ROM (Instruction Manual) ............................1
If any of these items are missing, contact your
dealer immediately.
Connection
Connect the power cord to a wall outlet only after all other connections have been made.
Viewing video/picture from iPod
You can view video/picture from iPod on an
external monitor.
• Before connecting a monitor display, turn off the
power of this System.
Monitor
(not supplied)
Composite video cord
(not supplied)
Inserting batteries to the main unit
Match the polarities (+ and –) of the batteries.
Battery compartment R14 (SUM-2)/C (14D) x 10
(not supplied)
Instructions PDF
The instruction manual is included on the
supplied CD-ROM as a PDF file. "Instructions"
allows you full operation of the unit.
Required environment
Adobe Reader 6.0 or later
• To download and install Adobe Reader, access
http://adobe.com/go/EN_US-H-GET-READER
* Adobe and Adobe reader are either registered
trademarks or trademarks of Adobe Systems
Incorporated in the United States and/or
other countries.
Downloading the Instructions PDF
If you do not have CD/DVD drive, you can
download the Instruction PDF from our website.
http://www.jvc.net/worldwide/index.html
If you do not have any method to read the
instruction manual, you can ask about further
operations which are not written on this paper to
EN
our customer service center.
How to read the Instructions PDF
1
Insert the supplied software CD-ROM into
the CD/DVD drive of your computer.
The cover page appears automatically on
your browser.
If the cover page does not appear, double
click "index.htm" on the CD-ROM.
2
Choose your language and click the icon.
The selected Instructions PDF opens.
NOTE
• If the Instructions PDF is not displayed correctly,
update Adobe reader to the latest version.
Inserting an SD card
• When removing the SD card, push it in and then
pull it out.
Rear of the unit
Connecting the power cord
Power cord
(supplied)
AC outlet
Installation
Caution: Proper Ventilation
To avoid risk of electric shock and fire, and to
prevent damage, locate the apparatus as follows:
1 Front: No obstructions and open spacing.
2 Sides/ Top/ Back: No obstructions should
be placed in the areas indicated by the
dimensions in the illustration.
3 Bottom: Place on a level surface.
Front view
15 cm
15 cm
15 cm
Side view
Rear of the System
15 cm
Notes on installation
• Select a place which is level, dry and neither too
hot nor too cold–between 5˚C and 35˚C.
Preparing the remote control
Pull out the
insulation sheet.
A copy of the Declaration of Conformity with
regard to the R&TTE Directive 1999/5/EC can
be downloaded from the following Web sites
(http://www.jvc.co.jp/ecdoc/).
Hereby, JVC declares that this System RV-S5B is
in compliance with the essential requirements
and other relevant provision of Directive
1999/5/EC.
Side of the unit
Connecting an external device
External device
(not supplied)
Stereo mini plug cord
(not supplied)
Headphone jack, etc.
RV-S3DB/RV-S1B/RV-S1W only
Connecting a USB device
USB memory
(not supplied)
Specifications
Tuner
DAB tuning range (RV-S3DB only)
BAND III: 174.928 MHz – 239.200 MHz
FM tuning range: 87.50 MHz – 108.00 MHz
Antenna: Telescopic antenna
Input/Output terminal
iPod
• Output power:
USB
• Output power
USB1, USB:
USB2 (RV-S3DB/RV-S1B/RV-S1W only):
DC 5 V
General
Power supply
• AC: AC 230 V
• DC:
DC 15 V (R14 (SUM-2)/C (14D)-size batteries x 10)
Power consumption
When using an AC outlet: 35 W (at operation)
0.50 W or less (on standby)
Dimensions
615 mm x 196 mm x 267 mm (W/H/D)
(RV-S3DB/RV-S1B/RV-S1W)
615 mm x 196 mm x 277 mm (W/H/D) (RV-S5B)
Mass
Approx. 6.3 kg (without batteries stored in the
battery compartment)
(RV-S5B only)
WiFi:
Frequency band:
BLUETOOTH
BLUETOOTH version: BLUETOOTH 2.1 + EDR
Output power: BLUETOOTH power class 2
Service area: max.10 m (10.9 yd.)*
* Communication range may vary depending
on the environmental conditions.
Frequency band:
2.4 GHz (2.4000 GHz – 2.4835 GHz)
BLUETOOTH profile:
A2DP (Advanced Audio Distribution Profile),
AVRCP (Audio/Video Remote Control Profile)
Design and specifications are subject to change
without notice.
USB cable for iPod
(not supplied)
Stereo
mini plug
DC 5 V 1 A
DC 5 V 1 A
500 mA
/50 Hz
IEEE 802.11 b/g
2.4 GHz
certified
Headphones
(not supplied)
