Ryobi Technologies, Inc.

Anderson, South Carolina 29625

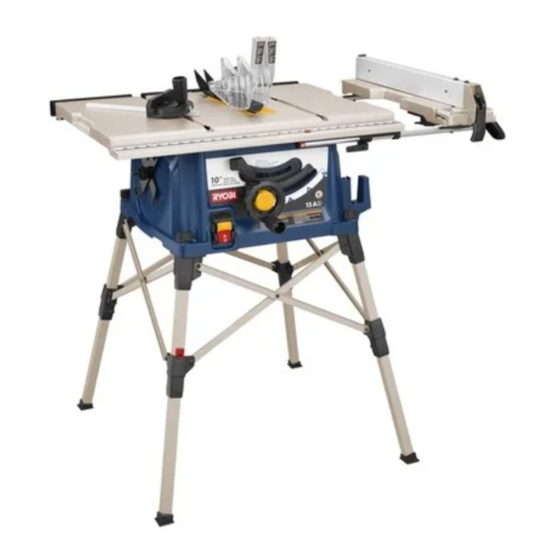

Product: Ryobi Table Saw

Identification: Model RTS20

Condition: A design improvement was made changing certain parts of the bevel

locking lever assembly.

Remedy: When model RTS20 is in for any repair service, inspect the saw for updated

bevel locking lever parts. Updated parts can be easily identified by a compression

spring located on the locking lever screw. If parts are original and have not been

changed, order and replace parts as indicated. (see Fig 1, 2, and 3)

Old part:

Wave Washer, no longer needed

Bevel Bushing (without step)

Pad, part #089037008040

Outer washer, no longer needed

Page 1 of 3

SERVICE INFORMATION

Service Level

Mandatory Service

Information

New part:

Spring, #089037008208

Bevel Bushing, part #089037008209

Pad, part #089037008040 (thicker)

RTS20 12-10-10

Table of Contents

Do you have a question about the RTS20 and is the answer not in the manual?

Page 1: Service Information
Condition: A design improvement was made changing certain parts of the bevel locking lever assembly. Remedy: When model RTS20 is in for any repair service, inspect the saw for updated bevel locking lever parts. Updated parts can be easily identified by a compression spring located on the locking lever screw.
Page 2 Fig 1: new design with spring and step down bevel bushing Fig 2: old design with outer washer, bevel bushing, and wave washer Page 2 of 3 RTS20 12-10-10...
Page 3 (part 089037008039) at the end of the bevel lock lever screw shown in Fig 1. Submit warranty claim using………………………RTS20 12-10-10 Warranty claim compensation……………………...Use Ryobi Labor Chart For Technical assistance contact Ryobi Technical Support at 1-800-525-2579 Page 3 of 3 RTS20 12-10-10...
