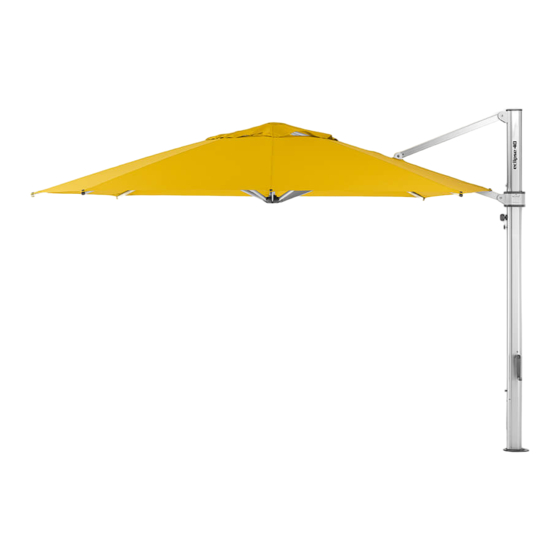

Summary of Contents for Frankford Umbrellas ECLIPSE
- Page 1 O W N E R S M A N U A L...
- Page 2 EXC LU S IVE U . S . D I S T R I B U T O R...
-
Page 3: Arms
Frankford Umbrellas customer service agent. Some modifications may void the warranty. • Make sure your Eclipse is dry and clean prior to storing away for extended periods of time to prevent mold from developing. • Be careful when closing to ensure the canopy does not get caught or “pinched”... - Page 4 Silicon spray in the slide car guide tracks will assist operation if required. • Fold acrylic canvas as mentioned in “Closing The Eclipse” (Page 8). This will prolong the new look of the canvas and prevent marking caused by “pinching” in the alloy frame.
- Page 5 FABRIC CARE RECacril Marine Grade Acrylic Fabric Infinity Process is a highly technological finish, providing RECacril with long lasting protection against mold and mildew, excellent water and oil repellency and protection from both sun and water. However, the accumulation of dust, pollution particles, foreign organic materials and general dirt can damage this protection, shortening the life of the RECacril, so they should be removed.
- Page 6 Casual Care & Cleaning • Brush off dust and dirt with a soft brush. NEVER brush with stiff brushes since this can damage the fabric finish. • Spray the umbrella with clean water. If a hose is used, avoid high pressure.
- Page 7 ECLIPSE PARTS IDENTIFICATION NOTE: When the ECLIPSE is closed, the swivel pulley is near the top inside of the mast. When the ECLIPSE is open, the swivel pulley is lower down inside the mast.
-
Page 8: Table Of Contents
ARMS SMALL END FITTINGS SMALL STROPS STOP CLOSURE BUTTON ON 4 ARMS ONLY STRUTS BUTTON HUB TUBE LOCATER STAINLESS STEEL CABLE HUB TUBE TUBE HOLDER TOP HUB CORD GUIDE PLUG TOP HUB PULLEY MAIN ARM SMALL END FITTING LARGE STROPS (ALLOY) BARREL COUPLER TOP STAY ARM SLIDE CAR... -
Page 9: Hub Tube
OPENING THE ECLIPSE • Remove the strap from the canopy. • Gently spread the canopy arms open with your hand. (Figure A) • Insert the Winder Handle (30) into the winder housing (31) on the mast and rotate in a clockwise direction. Ensure the slider... - Page 10 CLOSING THE ECLIPSE • Ensure the Slider Car wing shaped inclination stop pin (20) is disengaged (pulled out) and in a vertical position with the steel pin lying horizontal in the slot (Figure A). You may need to take some tension off the umbrella canopy to set the pin to vertical.
- Page 11 60° of tilt - Figure D). NOTE: There are 2 positions of tilt in FIGURE D each of the Eclipse models. Additional tilt position holes may be drilled but this should be done with extreme caution as there is a winder mechanism inside the...
-
Page 12: Dust Covers
TO ROTATE THE ECLIPSE UMBRELLA There are 16 pre-determined rotation positions in the spigot. These positions are found every 22.5° interval around the spigot base. They are located where indicated with notches on the spigot base. The position holes are under the nylon indexing shield (34) which acts as a dust cover for the holes not in use. -
Page 13: Mast
INSTALLING YOUR WIND STABILIZER KIT Your Eclipse Cantilever Umbrella comes with a Wind Stabilizer Kit to assist its performance in a wider range of wind conditions. This Stabilizer Kit consists of two (joined) stabilizer bars. NOTE: The Eclipse Cantilever Umbrella... - Page 14 The stabilizer kit must be removed to close the umbrella or tilt the canopy. Important: Your Eclipse Cantilever Umbrella, even when fitted with the stay kit, is not a permanent, all-weather structure. The umbrella should be closed and folded when not in use and never left open when unattended or in strong winds.
-
Page 15: Spigot
Prior to installing your installation fittings please read the important information below. Your Eclipse Cantilever Umbrella can rotate 360° and be locked in 16 different locations. This means that every 22.5° of rotation there is provision to lock the umbrella. In most situations there will be a preferred area over which you will predominantly want shade. - Page 16 | 14...
- Page 17 IN-GROUND MOUNT INSTALLATION OPTIONS Your umbrella comes with a spigot. Once you have installed the In-Ground Mount according to the instructions below, attach the spigot to the In-Ground Mount using the supplied Allen key and bolts. Once the concrete has fully cured, lift the umbrella on to the top of the spigot.
- Page 18 27.5” 25.5” 27.5” 15.7” | 16...
- Page 19 DECK/CONCRETE INSTALLATION OPTIONS Your umbrella comes with a spigot. Once you have installed the Deck Plate according to the instructions below, attach the spigot to the Deck Plate using the supplied Allen key and bolts. Once the Deck Plate is fully secured, lift the umbrella on to the top of the spigot. This is recommended as a two man operation.
- Page 20 COUNTER SUNK BOLTS 1/4” DECK PANELS DECK PLATE 2” THICK CROSS BEAMS DECK BEARERS 12.4” DIAMETER DECK PLATE M10 CONCRETE SCREW OR DYNA BOLT MINIMUM LENGTH 3” Concrete slab minimum depth 4”. No screw or fixing to be within 6” of closest edge of concrete slab | 18...
- Page 21 Stem through to the threaded holes on the bottom plate. Note: The 40G three stack is the maximum stack available at 555 lbs. This is required for the Eclipse Cantilever Umbrella. 19 |...
- Page 22 SPIGOT Bolts through to the aluminum lid to galvanized steel box frame 62.5” 5” 44” 44” 550lbs. GAVANIZED BASE Base stores (8) 50lb. pavers (400lbs.) in galvanized box frame. 40G-PLATE: 185lbs 40” Round . 40G-PLATE: 185lbs 40” Round . 40G-PLATE: 185lbs 40”...
- Page 23 21 |...
- Page 24 Replacement fabric canopy is covered for the time DATE OF PURCHASE OF THE FOLLOWING: remaining in the original warranty and does not Aurora Series, Eclipse Series, Nova Series, Monaco activate a new 7 or 5 year warranty. Series, Greenwich Series, Monterey Collection, and Catalina Collection.
- Page 26 Exclusive U.S. Distributor NORTH AMERICAN HEADQUARTERS FRANKFORD UMBRELLAS 110 GAITHER DR. MOUNT LAUREL NEW JERSEY, 08054 (856) 222 4134 www.frankfordumbrellas.com...
