SPX ACCUTORQ 7375 Operating Instructions

The Clikker Torque Wrenches are torque-limiting tools. A steel case encloses a power spring, a torque signaling
mechanism, a ratchet drive tang at the head of the case, and an adjustable hand grip (with lock) in the handle. The case
and grip have a calibration scale that is set and read like a micrometer.
HANDLE

Setting the TORQUE

The following example demonstrates how to set a torque of 64 ft. lbs.

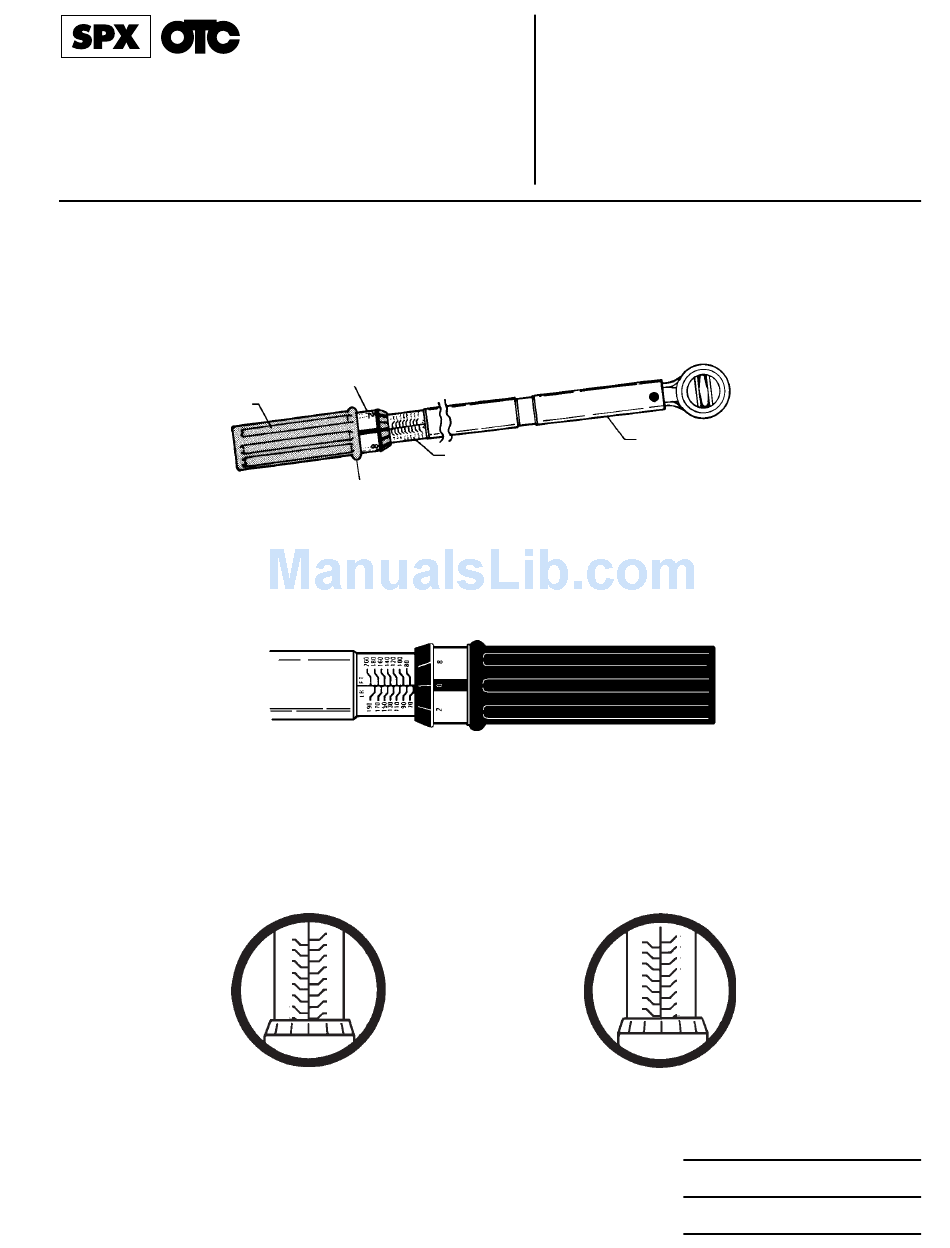

1. Unlock the handle by holding the tube and firmly pulling the handle back. See Figure A.
NOTE: Keep pressure (a rearward pull) on the handle during Steps 2 and 3.
2. Align the thimble edge with the "60" graduation cross line on the tube. Align the zero (0) on the thimble with the vertical
line on the tube. See Figure B. The wrench is now set at 60 ft. lbs.
3. By turning the handle, align the four (4) on the thimble with the vertical line on the tube. See Figure C. The wrench is
now set at 64 ft. lbs.
4. Push the handle forward until it clicks into the lock position. NOTE: The handle will lock only when a line on the
thimble is in line with the vertical line on the tube. See Figure D.
Litho in USA
SPX Corporation
655 Eisenhower Drive
Owatonna, MN 55060-0995 USA
Phone: (507) 455-7000
Tech. Serv.: (800) 533-6127
Fax: (800) 955-8329
Order Entry: (800) 533-6127
Fax: (800) 283-8665
International Sales: (507) 455-7290
Fax: (507) 455-7063
ACCUTORQ™
CLIKKER TORQUE WRENCHES
MINOR
GRADUATIONS
THIMBLE
OPERATING INSTRUCTIONS
Handle in the Unlocked Position
LB. FT.
200
190
180
170
160
150
140
130
120
110
100
90
80
70
60
50
2 0 8
FIGURE B
Set at 60 ft. lbs.
Operating Instructions
for:
MAJOR
GRADUATIONS
FIGURE A
Form No. 105152
TUBE
LB. FT.
200
190
180
170
160
150
140
130
120
110
100
90
80
70
60
6 4 2
FIGURE C
Set at 64 ft. lbs.
Sheet No.
1 of 2
Issue Date:
Rev. 5-1-98
7375
7377
7378
7379
