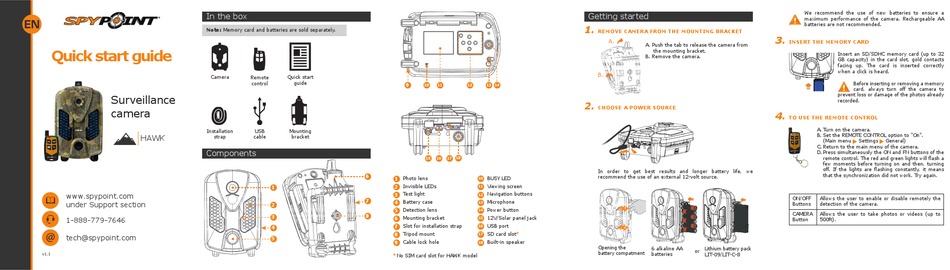

Spypoint HAWK Quick Start Manual

In the box
SPY SPY P P INT INT
Note: Memory card and batteries are sold separately.

Quick start guide

Camera
Surveillance
camera
Installation
HAWK
strap
Adventure expedition summit pro smart TINY LIVE
Components
series · série series · série series · série series · série series · série series · série
www.spypoint.com

under Support section
 1-888-779-7646
tech@spypoint.com

v1.1
Quick start
Remote
control guide
9 10
USB Mounting
cable bracket
15
6
1 Photo lens
2 Invisible LEDs
1
3 Test light
7
Battery case
4
2
Detection lens
5
8
3
Mounting bracket
6
Slot for installation strap
7
4
Tripod mount
8
5
Cable lock hole
9
*No SIM card slot for HAWK model
Getting started
1.
REMOVE CAMERA FROM THE MOUNTING BRACKET
A.
B.
11 12 13 14
2.
CHOOSE A POWER SOURCE
16 17 18
In order to get best results and longer battery life, we
recommend the use of an external 12-volt source.
10 BUSY LED
11 Viewing screen
Navigation buttons
12
Microphone
13
Power button
14
12V/Solar panel jack
15
USB port
16
SD card slot*
17
Built-in speaker
18
Opening the
battery compatment
3.
INSERT THE MEMORY CARD
A. Push the tab to release the camera from
the mounting bracket.
B. Remove the camera.
4.
TO USE THE REMOTE CONTROL
ON/OFF
Buttons
1
CAMERA
Button
2
6 alkaline AA
Lithium battery pack
or
batteries
LIT-09/LIT-C-8
We recommend the use of new batteries to ensure a
maximum performance of the camera. Rechargeable AA
batteries are not recommended.
Insert an SD/SDHC memory card (up to 32
GB capacity) in the card slot, gold contacts
facing up. The card is inserted correctly
when a click is heard.
Before inserting or removing a memory
card, always turn off the camera to
prevent loss or damage of the photos already
recorded.
A. Turn on the camera.
B. Set the REMOTE CONTROL option to "On".
(Main menu Settings General)
C. Return to the main menu of the camera.
D. Press simultaneously the ON and FN buttons of the
remote control. The red and green lights will flash a
few moments before turning on and then, turning
off. If the lights are flashing constantly, it means
that the synchronization did not work. Try again.
Allows the user to enable or disable remotely the
detection of the camera.
Allows the user to take photos or videos (up to
500ft).
