user manual
TH2014
It is important to read this user manual prior to using your new product for the first time.

Advertisement

loading

  Also See for RCA TH2014

  Related Manuals for RCA TH2014

  Summary of Contents for RCA TH2014

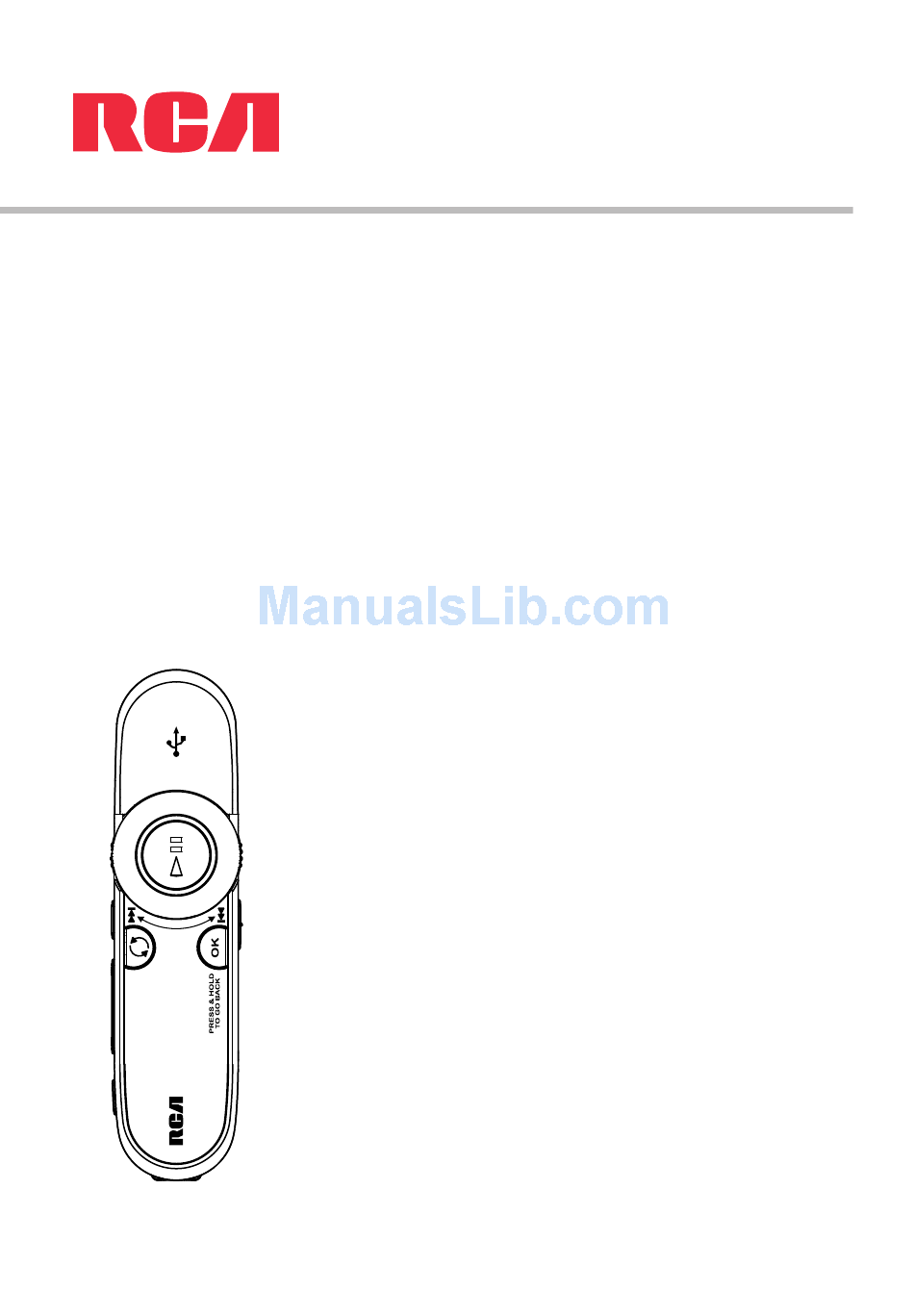

  • Page 1 TH2014 It is important to read this user manual prior to using your new product for the first time.
  • Page 2: Important Safety Instructions

    Important safety instructions IMPORTANT SAFETY INSTRUCTIONS PLEASE READ AND SAVE FOR FUTURE REFERENCE Some of the following information may not apply to your particular product; however, as with any electronic product, precautions should be observed during handling and use. • Read these instructions.
  • Page 3: Important Battery Precautions

    Important battery precautions Warning: Your product contains a battery and charging system which is designed to work in temperatures that do not exceed 50°C (122°F). Leaving this product in a closed automobile or the trunk of an automobile where temperatures may exceed 50°C may result in permanent battery damage, fire, or explosion. Please remove your product from the automobile when you exit, do not place your product in the trunk of your automobile, and do not leave your product in any location where temperatures may exceed 50°C.
  • Page 4: Fcc Information

    Indianapolis, IN 46268 1-317-810-4880 ( No technical /product support is available via this number. This phone number is for regulatory matters only.) Visit www.rcaaudiovideo.com for technical support TH2014-A Industry Canada Regulatory Information CAN ICES-3 (B)/NMB-3 (B) Avis d’Industrie Canada CAN ICES-3 (B)/NMB-3 (B)
  • Page 5: Table Of Contents

    Unpacking your player ..................................6 Computer system requirements ..............................6 Connecting to the computer ................................7 Charging the player ..................................7 Managing files on your RCA Player Using Windows Explorer ................................8 Deleting files from the player ...............................9 Disconnecting the player from the PC ............................9 General controls Turning the player on and off ...............................10...
  • Page 6 Playing back FM radio recordings ...............................17 Settings Changing the Player’s settings ..............................18 Language ......................................18 Memory info ......................................18 Firmware version ....................................18 Reset ........................................18 Additional information Tips and troubleshooting ................................19 Visiting RCA website ..................................20 Specifications ......................................21 Warranty information 12 Month Limited Warranty ................................22...
  • Page 7: Before You Begin

    As with any portable player, you must back up the drive regularly. The manufacturer is not responsible for lost data. Unpacking your player All of the items listed below should have been packed in the box with your player. • RCA player (contains user manual) • Quick Start Guide • Earphones Computer system requirements •...
  • Page 8: Connecting To The Computer

    Go to My Computer (XP users) /Go to Computer (Vista, 7, and 8 users) in the Start menu, find and open the drive letter associated with the player (i.e. RCA MP3). Copy music to the device by dragging and dropping files using Windows Explorer.
  • Page 9: Managing Files On Your Rca Player

    Managing files on your RCA Player Before you begin using your RCA Player, you’ll want to copy your music to the player. Using Windows Explorer 1. Open the player in Windows Explorer. 2. Transfer audio files to the MUSIC folder of the player by dragging and dropping files using Windows Explorer.
  • Page 10: Deleting Files From The Player

    Deleting files from the player You may delete any files transferred to the player. 1. Connect the player to your computer. 2. Open the player in Windows Explorer and then navigate to the folder containing the files. 3. Select the files you want to remove and then press the Delete key on the keyboard of your PC. Disconnecting the player from the PC Windows will show the player as a removable disk: 1.
  • Page 11: General Controls

    General controls Start/stop Adjust recording volume EQ Setting Selection Strap holder USB plug Microphone Skip forward/fast forward Repeat Display Earphone socket Play/pause Skip back/reverse Press and hold to go to Home menu; press to select a menu item Power on/off Turning the player on and off Turn player on/off: Slide ON/OFF button.
  • Page 12: Playback Music Files

    Playback music files Playing music files 1. Rotate the skip back/reverse knob clockwise or counter-clockwise to navigate to MSC. 2. Press OK to enter MSC mode. Note: In all playback modes, press and hold OK to return to the menu. Music playback controls Skip back/forward knob Rotate the skip back/reverse knob counter-clockwise to skip to the...
  • Page 13 The following options are available during playback: Repeat – Toggles play mode. Options available: Normal, Repeat one, Dir Normal, Dir All Repeat, Repeat • All, Random all and Intro. • Equalizer – Toggles equalizer mode. Options available: Natural, Rock, Pop, Classic, Soft, Jazz, DBB. Replay –...
  • Page 14: Start Recording

    Record Start recording 1. Press the REC/STOP button, or from the main menu. Rotate the skip back/reverse knob clockwise or counter-clockwise to navigate to REC and press OK to enter REC mode. 2. Press to start recording. 3. Press REC/STOP or to pause or resume recording.
  • Page 15: Playing Back Your Recordings

    Playing Back Your Recordings Playback recorded files 1. Rotate the skip back/reverse knob clockwise or counter-clockwise to navigate to RPL. 2. Press OK to enter RPL mode. 3. Press to start playback. Note: In all playback modes, press and hold OK to return to the menu. Recording Playback Skip back/forward knob Rotate the skip back/reverse knob counter-clockwise to skip to...
  • Page 16 The following options are available during playback: Repeat – Toggles play mode. Options available: Normal, Repeat one, Dir Normal, Dir All Repeat, Repeat • All, Random all and Intro. • Replay – To repeat a section between two points A and B in your currently playing file. When "A-" of "A-B" blinks on the display, rotate the skip back/reverse knob clockwise at the beginning of your repeat section.
  • Page 17: Fm Radio

    FM Radio The radio uses the earphones as an antenna. For better reception, extend the earphone cable as far as possible. Note that you can also adjust for noisy FM by shifting the earphone cord position. Playing FM radio To turn the radio on: 1.
  • Page 18: Playing Back Fm Radio Recordings

    To listen to a preset station: When the radio is playing, press to select a desired preset station. Recording FM radio You can record the radio and play back recordings as well as copy the recordings (WAV files) to your PC. To record the currently playing radio station: 1.
  • Page 19: Settings

    Settings Changing the Player’s settings 1. Rotate the skip back/reverse knob clockwise or counter-clockwise to navigate to SYS. 2. Press OK to enter SYS mode. 3. Rotate the skip back/reverse knob clockwise or counter-clockwise to highlight an option and then press OK to confirm the selection or change the setting.
  • Page 20: Additional Information

    Additional information Tips and troubleshooting Cannot delete files on the player. • You can delete files on the player using your computer. 1. Connect the player to your computer. 2. Open the player in Windows Explorer and navigate to the folder containing the files. 3.
  • Page 21: Visiting Rca Website

    Rights Management). Cannot transfer subscription music content to the player. • The player does not support DRM content, please make sure the songs are not DRM protected. (Digital Rights Management). Visiting RCA website Please visit www.rcaaudiovideo.com for: • Product registration •...
  • Page 22: Specifications

    Specifications Hardware • Dimensions: 91mm x 23mm x 25mm • Unit Weight: 20 g • Stereo Headphones jack USB Drive • External USB Drive: When connected to a computer via USB, the player is capable of storing any file type allowing the user a fast, convenient method of storing, retrieving, and transferring files.
  • Page 23: Warranty Information

    Warranty information 12 Month Limited Warranty Applies to RCA Portable Media Players Voxx Accessories Corporation (the “Company”) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 12 months from the date of original purchase, such defect(s) will be repaired or replaced with new or reconditioned product (at the Company’s option) without charge for parts and repair...
  • Page 24 The descriptions and characteristics given in this document are given as a general indication and not as a guarantee. In order to provide the highest quality product possible, we reserve the right to make any improvement or modification without prior notice. ©2018 VOXX Accessories Corporation Indianapolis, IN Trademark(s) ® Registered TH2014 IB EN 2018 03...
