Tunstall Flamenco Operating Instructions Manual

Room with roomterminal flamenco
Hide thumbs Also See for Flamenco:

Advertisement

Quick Links

Download this manual
Flamenco
Room with
RoomTerminal Flamenco
Operating instructions
for staff
00 8811 66

Advertisement

loading

Related Manuals for Tunstall Flamenco

Summary of Contents for Tunstall Flamenco

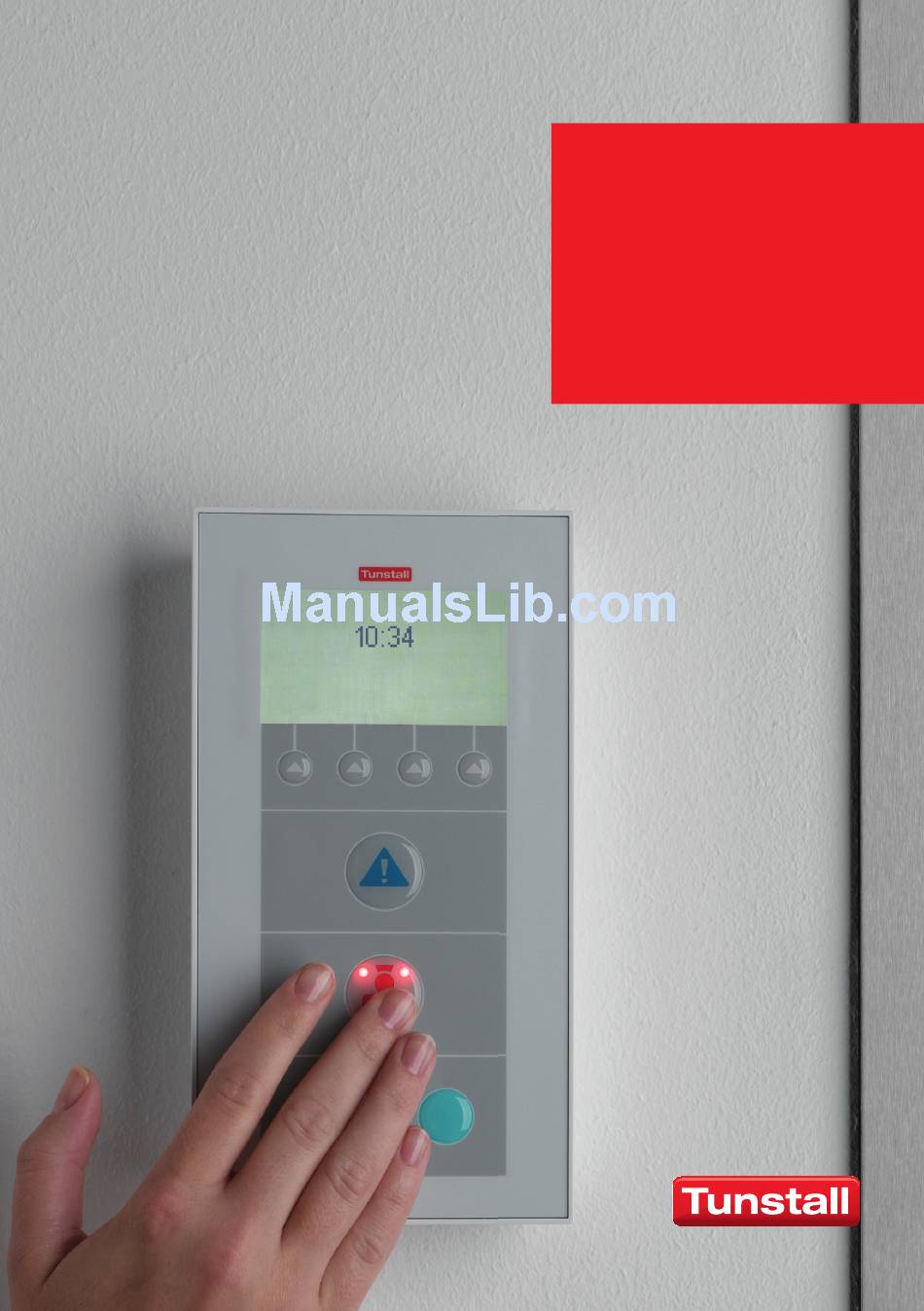

  • Page 1 Flamenco Room with RoomTerminal Flamenco Operating instructions for staff 00 8811 66...
  • Page 2 All rights to this documentation are reserved, in particular copyright and distribution rights. No part of this documentation may be reproduced in any form or processed, copied or distributed using electronic systems without the prior written consent by Tunstall GmbH. We reserve the right for implementing technical changes.

  • Page 3: Table Of Contents

    1. Table of contents Table of contents ......Important safety instructions ....Required basic knowledge .
  • Page 4 1. Table of contents 00 8811 66, 02/17 (Rev. 3.0)

  • Page 5: Important Safety Instructions

    2. Important safety instructions WARNING! Please follow the safety instructions below for the safety of staff and patients: You must have gained, via appropriate measures such as training, suffi-  cient knowledge about the operation and use of the nurse call system. These measures have to be repeated if necessary.
  • Page 6 2. Important safety instructions 00 8811 66, 02/17 (Rev. 3.0)

  • Page 7: Required Basic Knowledge

    3. Required basic knowledge Call handling process 1. Raising a call A patient presses a call button, if he or she needs help. The call will be dis- played at the display devices in the ward. 2. Acknowledging the call Staff acknowledges the call - depending on the current location at the display panel in the nurse station or at a RoomTerminal or at the calling location by activating staff presence.
  • Page 8 3. Required basic knowledge Activated presence buttons:  indicate the presence of staff,  acknowledge a fresh call in this room,  prepare the reception of forwarded calls,  prepare the initiation of emergency calls, i.e. calls from rooms with acti- vated presence buttons are indicated with higher priority.
  • Page 9 3. Required basic knowledge Call types and call categories Call Call type Call event category Calls Call A patient raises a call or a call device (low plug is disconnected from the connection priority) socket. WC Call A call was raised in a WC room. Emergency Emergency While presence 1 is activated a call is...
  • Page 10 3. Required basic knowledge the calls are automatically forwarded to the rooms where staff has activated its presence. Then the call can be acknowledged using the RoomTerminal. Call re-freshening The function 'call re-freshening' is an additional safety feature: If an acknowl- edged call isn't cancelled within a programmed time frame (e.g.

  • Page 11: Call Devices For Patients

    4. Call devices for patients Pear push switch Pear push switch Pear push switch incl. two call switches incl. call and light switch Red call button for raising calls Location light / Reassurance light Faintly illuminated in order to find the call button in the dark, brightly illuminated when you have raised a call.
  • Page 12 4. Call devices for patients Call switches Red call button for raising calls. Location light / Reassurance light Faintly illuminated in order to find the call button in the dark, brightly illuminated when you have raised a call. Safety release The safety release opens, if the pulling force exceeds a limit value.

  • Page 13: Optical Signalling Devices

    5. Optical signalling devices Room lamps blue green green white yellow yellow white 77 0170 00 77 0170 10 77 0170 01 77 0171 00 77 0171 10 (supplement to 77 0170 00/77 0171 00) Flashing Flickering Flashing Permanent light quickly Alarm Emergency call...
  • Page 14 5. Optical signalling devices Group lamps green green Calls from another ward during ward coupling Direction to call location Flashing quickly Flashing slowly Permanent light Alarm (fresh or Emergency call (fresh Call (fresh or acknowledged) or acknowledged) acknowledged) Green The call signalled in Staff is present the red field is an in at least one of...

  • Page 15: Switches

    6. Switches Presence switch Green: presence button for staff 1 Yellow: presence button for staff 2 Reminder light illuminates when presence button is activated. Call tone in case of call forwarding (if function is configured). Presence combination with call tone Green: Presence button staff 1 Reminder light illuminates when presence button is activated.
  • Page 16 6. Switches Cancel switch/WC Grey: Cancel button to cancel calls in the Reminder light illuminates when a call in the WC has to be cancelled via cancel button. Call tone in case of call forwarding (if function is configured). Call switch/WC with cancel switch Red: Call button to raise calls Location light / reassurance light Grey: Cancel button to cancel calls in the...

  • Page 17: Roomterminal

    7. RoomTerminal Device overview Display Four function keys (situation-related functions) Blue alarm button Blue location light (10) faintly illumi- nated for finding the button in the dark, when staff presence is active. Flashing brightly when a cardiac alarm was raised at the RoomTerminal (reassur- ance light).
  • Page 18 7. RoomTerminal Staff registration When entering the room:  Activate the green presence button (Staff 1) or yellow presence button (Staff 2) at RoomTerminal or at remote presence switch.  The reminder lights of all presence buttons in the room for this staff cat- egory come on.
  • Page 19 7. RoomTerminal Providing help for the caller A call is displayed at the RoomTerminal: 1. Acknowledge the call by pressing the function key.  The call is acknowledged. 2. Log-out from the current room, i.e. de-activate the presence button. 3. Go to the calling location. 4.
  • Page 20 7. RoomTerminal  Press the red call button at the RoomTerminal or another call button in the room.  The light for the pressed call button is brightly illuminated or is flashing brightly (RoomTerminal). With activated staff presence an emergency call is signalled.

  • Page 21: Diagnostic Call

    8. Diagnostic call Medical electrical equipment can be connected to the nurse call system via the diagnostic connection cable (70 0812 00). If pre-set limits are exceeded, a diagnostic call will be raised automatically. WARNING! The transmission of alarm conditions of medical electrical equipment (e.g.
  • Page 22 8. Diagnostic call Diagnostic call is raised If the value on the monitoring device alters from the starting point, a diagnos- tic call is raised automatically. The room lamp is flashing red. A diagnostic call is displayed on the display panel in the nurse station.

  • Page 23: Connection Sockets Etc

    9. Connection sockets etc. Connection sockets Socket for pear push switch, diagnostic call device etc. Red call button for raising calls Self-releasing adapter Self-releasing adapter between connection socket and pear push switch. When subjected to a pulling force, the self-releasing adapter automatically separates the con- nection and protects the connection socket, the cable and the connected device.
  • Page 24 QUALITY MANAGEMENT SYSTEM DQS certified according to Reg.-No. 56386 DIN EN ISO 9001 Reg.-No. 56386 Tunstall GmbH Orkotten 66 48291 Telgte Germany t: +49 (0) 25 04/7 01-0 f: +49 (0) 25 04/7 01-4 99 info@tunstall.de www.tunstall.de...
