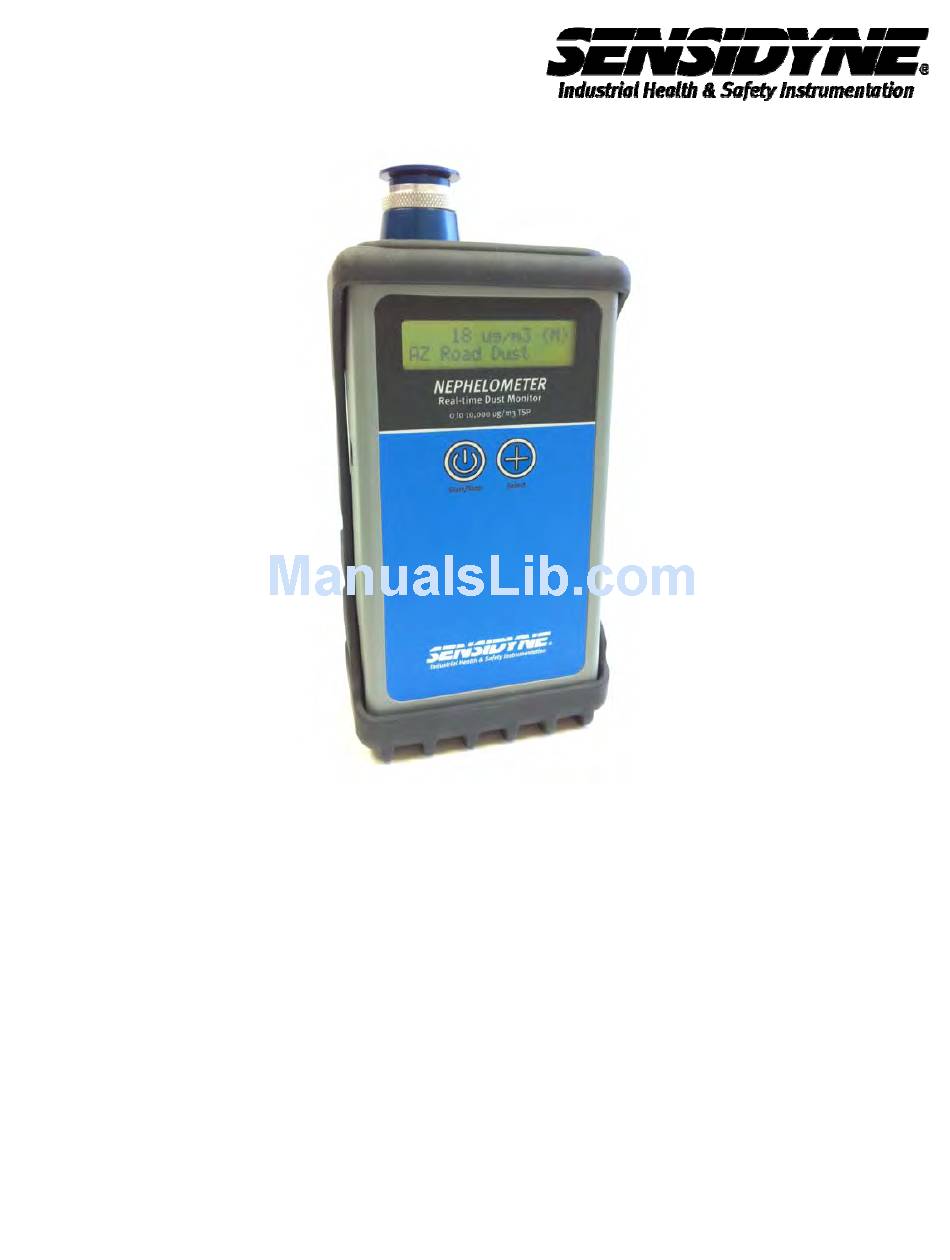

- Page 1 EPHELOMETER PERATION ANUAL 16333 Bay Vista Dr. • Clearwater, FL 33760 USA 800-451-9444 / 727-530-3602 www.Sensidyne.com • info@Sensidyne.com REF 360-0138-01 (REV B)
- Page 2 Copyright Notice Sensidyne Nephelometer Operation Manual © Copyright 2010 Met One Instruments, Inc. All Rights Reserved Worldwide. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any other language in any form by any means without the express written permission of Met One Instruments, Inc.
- Page 3 Safety Notice The contents of this manual have been checked against the hardware and software described herein. Since deviations cannot be prevented entirely, we cannot guarantee full agreement. However, the data in this manual is reviewed regularly and any necessary corrections included in subsequent editions. Faultless and safe operation of the product presupposes proper transportation, storage, erection and installation as well as careful operation and maintenance.
- Page 4 Electrical & Safety Conformity The manufacturer certifies that this product operates in compliance with the following standards and regulations: • FDA / CDRH This product is tested and complies with 21 CFR, Subchapter J, of the health and Safety Act of 1968. •...
-
Page 5: Table Of Contents
Table of Contents Safety ........................6 1.1. Safety Indicators........................6 Setting Up ......................7 2.1. Unpacking..........................7 2.2. Familiarization ........................... 8 2.3. General Information........................9 2.3.1. General Information ......................9 2.3.2. Environmental Factors ......................9 2.3.3. Sheath Air ........................... 9 2.3.4. -
Page 6: Safety
Safety 1.1. Safety Indicators This manual uses a CAUTION and a WARNING indication. Familiarize yourself with the following definitions for the meanings of these indicators. A CAUTION indicates a hazard and calls attention to a procedure that if not correctly followed could result in damage to the instrument. Do not proceed beyond a caution indicator without understanding the hazard. -
Page 7: Setting Up
Setting Up 2.1. Unpacking When you unpack the Nephelometer and accessories, inspect the carton for obvious damage. If the carton is damaged notify the carrier. Unpack everything and make a visual inspection. You should have the following: 1. Nephelometer 2. 100-240 VAC to 8.4 VDC Lithium Ion Smart Charger w/ power cord 3. -
Page 8: Familiarization
2.2. Familiarization Protective Inlet Cover Iso-kinetic Inlet Flow Adjust Select/Mode Charging Jack ON/OFF / Sample Zero Cap Item Description Charging Jack Plug Lithium Ion charger module into the jack to charge the batteries. Protective Inlet Cover Protects the unit from dust entering inlet during storage. Iso-kinetic Inlet Reduces count errors due to mismatched sample flow velocity. -
Page 9: General Information
USB port on the user’s computer. Each sample event records a time, date, serial number, environmental setting and an average concentration. Several special features have been included in the 80570 that make it easy to use. 2.3.2. Environmental Factors Environmental Factors allow the user to match the Nephelometer to specific conditions of the area to be monitored. -
Page 10: Selectable Sample Modes
2.3.5. Selectable Sample Modes In MANUAL (M) mode a timed one minute measurement cycle begins and upon completion of the measurement cycle, the collected data is stored. During the measurement cycle the real time data is displayed, at the end of the measurement cycle the average concentration is displayed until the operator either pushes Start/Stop again or the Select button is depressed. -
Page 11: Operation
(WARNING: see section 3.2 – Battery Pack for instructions and safety). Press the Start/Stop button to turn the unit on. The startup screen will appear for 3 seconds followed by the main screen. SENSIDYNE NEPHELOMETER Startup Screen 1,234 ug/m3... -
Page 12: Start Sample Event
2.5. Start Sample Event Before sampling, remove the zero cap (store cap in storage bag) and open the protective inlet cover by sliding the hood down. Open Inlet Zero Cap Press and release the Start/Stop key to start a sample event. The following screens illustrate the operation of the MANUAL (M) sampling. -
Page 13: Select Key
2.6. Select Key There are two parameters which can be set using the Select Key. One allows the user to select the Environment factor and the other allows the user to select the Sample Mode. The Select Key can only be used when the unit is not sampling. Pressing the Select key will display the Select screen. -
Page 14: Set Environment Screen
2.9. Zero Calibration The 80570-8200 software will place the unit into a zero calibration mode. The display indicates the following when zero calibrating. This process is completely automated and only requires the user to install the zero cap over the inlet. -
Page 15: Trouble Shooting And Maintenance
Trouble Shooting and Maintenance There are no user serviceable parts inside of the unit. 3.1. Errors and Alarms Certain operational failures are displayed and recorded in the Alarm Log. In the event of one of the following errors, the error is shown on the second line of the display. -
Page 16: Counter Error
3.1.3. Counter Error The output of the optical engine is a frequency. There is always frequency of >1000 pulses per second regardless of actual concentration measured. If the output falls below this value the sensor is no longer functioning correctly. 1,234 ug/m3 SENSOR FAULT The unit will display SENSOR FAULT and operation will be suspended. -
Page 17: Battery Pack
3.2. Battery Pack WARNING: There are no user serviceable components inside the Nephelometer. Do not attempt to change the internal battery pack. The wrong battery pack could cause serious damage, a fire, or explosion. The Nephelometer should be sent to a service center where a factory qualified person would change and properly dispose of the battery pack. -
Page 18: Filter
3.3. Filter The Nephelometer has a 0.2 micron filter to produce the clean air for the sheath system. This filter will normally need to be changed on an annual basis but may require a more frequent change if used in extremely dirty environments. Remove the filter element by unscrewing the filter holder cap. -
Page 19: Service Schedule
Sensor, vacuum pump requires access to the inside of the Nephelometer and a factory-authorized person must do this. Contact Sensidyne, LP for service information, including a Return Material Authorization (RMA) Number. -
Page 20: Troubleshooting
3.6. Troubleshooting WARNING: There are no user serviceable components inside this instrument. The covers on this instrument should not be removed or opened for servicing, calibration or any other purpose except by a factory-authorized person. To do so may result in exposure to visible laser radiation that can cause blindness. A factory-authorized person should perform replacement of the sensor, vacuum pump, filter or any component inside the Nephelometer. -
Page 21: Specification
0º C to +50º C Storage Temperature -20º C to +60º C Accessories Supplied Operation Manual USB Cable AC to DC Converter Module with IEC AC Power Cord Zero Cap 80570-8200 Software 360-0138-01rB Nephelometer Operation Manual Page 21 of 22... -
Page 22: Declaration Of Conformity
United States of America Phone: 541-471-7111 FAX: 541-471-7116 E-Mail: metone@metone.com Declares, that the product(s): Dust Monitor Product Names: 80570 Model Numbers: Product Options: Are in compliance with the following documents: Emissions: CISPR 11:1990 / EN 61326-1 EMC: Immunity: EN50082-1 / EN 61326-1... - Page 23 This page intentionally left blank...
