iSystem IC50130 User Manual

Legacy debug adapters
Hide thumbs
Table of Contents

Advertisement

Quick Links

Legacy Debug Adapters
V1.1
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IC50130 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for iSystem IC50130

Summary of Contents for iSystem IC50130

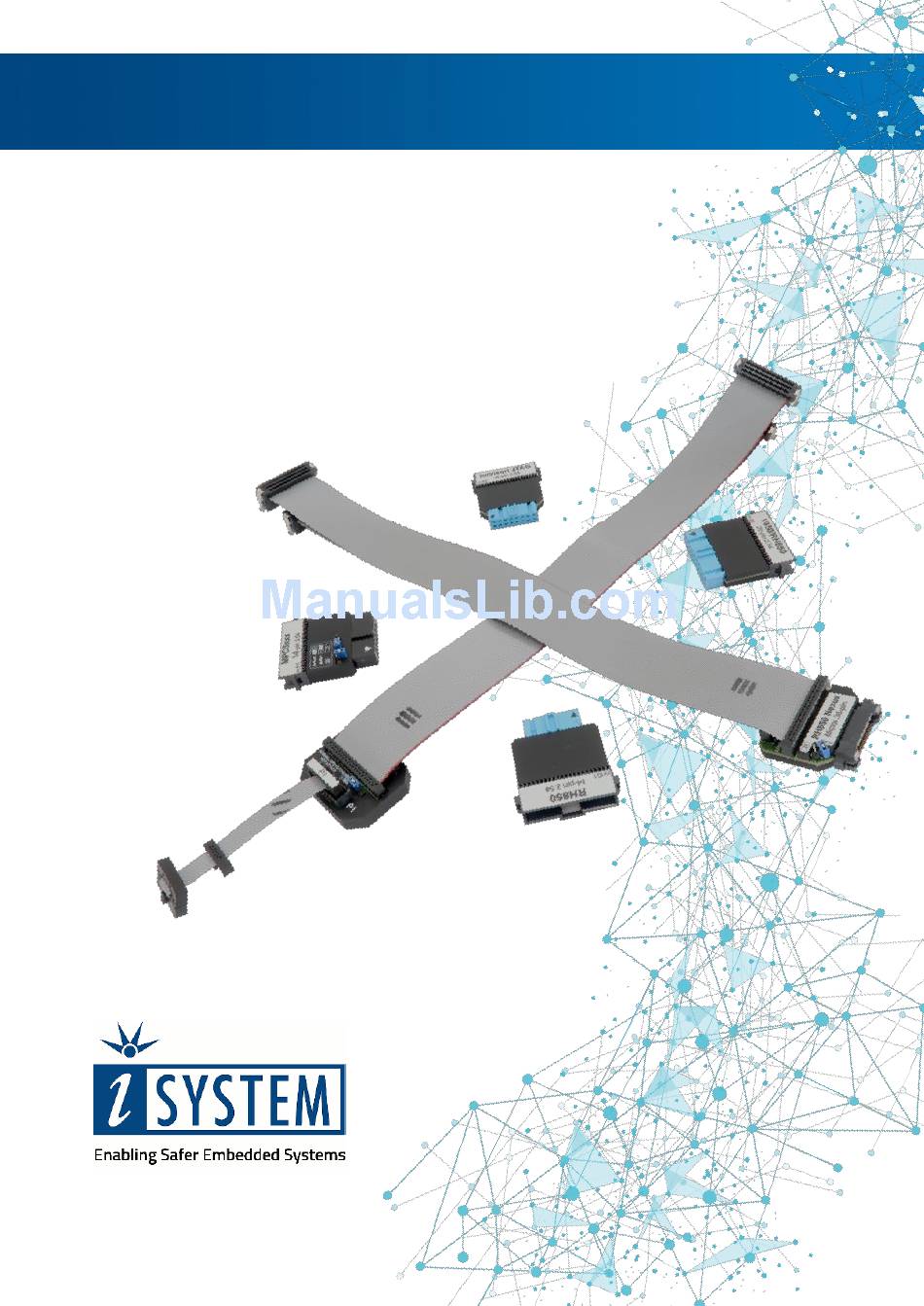

  • Page 1 Legacy Debug Adapters V1.1 User Manual...
  • Page 2 This document and all documents accompanying it are copyrighted by iSYSTEM AG and all rights are reserved. Duplication of these documents is allowed for personal use. In all other cases, written consent from iSYSTEM is required. Copyright  iSYSTEM AG.

  • Page 3: Table Of Contents

    Contents Introduction ..........................1 26-pin 2.54 mm NXP ColdFire Debug Adapter ................2 6-pin 2.54mm NXP BDM Debug Adapter ..................4 6-pin 2.54mm NXP S12Z BDM Debug Adapter ................5 16-pin 2.54mm NXP COP Debug Adapter ..................6 38-pin Mictor PPC4xx RISCTrace D. Adapter ................8 16-pin 2.54mm Renesas 78K0R D.

  • Page 4: Introduction

    BlueBox, and supported by winIDEA 9.17.0 or newer, is available in a separate user manual. Ordering Code Description IC50130 26-pin 2.54 mm NXP ColdFire Debug Adapter IC50140 6-pin 2.54mm NXP BDM Debug Adapter IC50141 6-pin 2.54mm NXP S12Z Debug Adapter IC50153 16-pin 2.54mm NXP COP Debug Adapter...

  • Page 5: 26-Pin 2.54 Mm Nxp Coldfire Debug Adapter

    26-pin 2.54 mm NXP ColdFire Debug Adapter Ordering code IC50130 This debug adapter is used to connect the iC5000 BlueBox to NXP ColdFire based target featuring a 26-pin 2.54 mm pitch target debug connector with the ColdFire pinout. This debug adapter is supported by the iC5000 BlueBox only. The iC5700 doesn’t support the ColdFire architecture.
  • Page 6 When connecting the BlueBox to the new embedded target for the first time, double check that the debug adapter pinout matches with the target debug connector. Note that a mismatch can result in a hardware failure. 26-pin 2.54 mm NXP ColdFire Debug Adapter features resettable fuses on pins 2, 4, 7, 8, 9, 10, 24 and 26.

  • Page 7: 6-Pin 2.54Mm Nxp Bdm Debug Adapter

    6-pin 2.54mm NXP BDM Debug Adapter Ordering code IC50140 This debug adapter is used to connect the iC5000 and the iC5700 BlueBox to NXP HCS08, HC12, HCS12, S12X and ColdFire V1 based target featuring 6-pin 2.54mm pitch target debug connector with the BDM pinout. The debug adapter connects to the 25cm 40-pin ribbon cable coming from the BlueBox and to the target debug connector on the other side.

  • Page 8: 6-Pin 2.54Mm Nxp S12Z Bdm Debug Adapter

    6-pin 2.54mm NXP S12Z BDM Debug Adapter Ordering code IC50141 This debug adapter is used to connect the iC5000 and the iC5700 BlueBox to NXP S12Z based target featuring 6-pin 2.54mm pitch target debug connector with the S12Z BDM pinout. The debug adapter connects to the 25cm 40-pin ribbon cable coming from the BlueBox and to the target debug connector on the other side.

  • Page 9: 16-Pin 2.54Mm Nxp Cop Debug Adapter

    16-pin 2.54mm NXP COP Debug Adapter Ordering code IC50153 This debug adapter is used to connect the iC5000 BlueBox to NXP MPC6xx, MPC82xx, MobileGT, MPC7xx or MPC83xx based target featuring 16-pin 2.54mm pitch target debug connector with NXP COP pinout. This debug adapter is supported by the iC5000 BlueBox only.
  • Page 10 16-pin 2.54mm NXP COP Debug Adapter features resettable fuses on all pins except for the pin 15. These protect debug signals against overcurrent and cycle back to a conductive state after the excessive current fades away. The signal on the pin 15 is protected via 100 ohm serial resistor.

  • Page 11: 38-Pin Mictor Ppc4Xx Risctrace D. Adapter

    38-pin Mictor PPC4xx RISCTrace D. Adapter Ordering code IC50155 This debug adapter is used to connect the iC5000 BlueBox to Applied Micro PPC4xx based target featuring a 38-pin Mictor target debug connector with the PPC4xx RISCTrace pinout. This debug adapter is supported by the iC5000 BlueBox only. The iC5700 doesn’t support the PPC4xx architecture.
  • Page 12 Blue colored signals are trace signals. When connecting the BlueBox to the new embedded target for the first time, double check that the debug adapter pinout matches with the target debug connector. Note that a mismatch can result in a hardware failure. 38-pin Mictor PPC4xx RISCTrace Debug Adapter features resettable fuses on pins 7, 9, 11, 12, 15, 17, 19 and 21.

  • Page 13: 16-Pin 2.54Mm Renesas 78K0R D. Adapter

    16-pin 2.54mm Renesas 78K0R D. Adapter Ordering code IC50170 This debug adapter is used to connect the iC5000 and the iC5700 BlueBox to Renesas 78K0R based target featuring 16-pin 2.54mm pitch target debug connector with the 78K0R pinout. The debug adapter connects to the 25cm 40-pin ribbon cable coming from the BlueBox and to the target debug connector on the other side.
  • Page 14 16-pin 2.54mm Renesas 78K0R Debug Adapter features resettable fuses on all connected pins. These protect debug signals against overcurrent and cycle back to a conductive state after the excessive current fades away. The debug adapter connects to the target via a 16-pin 2.54 mm connector, for example Yamaichi FAS-1601-2101-2-OBF.

  • Page 15: 26-Pin Kel Renesas V850 Debug Adapter

    26-pin KEL Renesas V850 Debug Adapter Ordering code IC50172 This debug adapter is used to connect the iC5000 and the iC5700 BlueBox to Renesas V850 based target featuring 26-pin KEL target debug connector with the V850 pinout. The debug adapter connects to the 25cm 40-pin ribbon cable coming from the BlueBox and to the target debug connector on the other side.
  • Page 16 The debug adapter connects to the target via a 26-pin KEL connector, part number 8825E-026- 175. A target should feature a matching part, for example KEL connector, part number 8830E- 026-170S. For more details see the 8825E Series at http://www.kel.jp/.

  • Page 17: 10-Pin 2.54Mm Renesas 78K0 Debug Adapter

    10-pin 2.54mm Renesas 78K0 Debug Adapter Ordering code IC50174 This debug adapter is used to connect the iC5000 and the iC5700 BlueBox to Renesas 78K0 based target featuring 10-pin 2.54mm pitch target debug connector with the 78K0 pinout. The debug adapter connects to the 25cm 40-pin ribbon cable coming from the BlueBox and to the target debug connector on the other side.

  • Page 18: 78K0 16-Pin 2.54Mm Adapter

    The debug adapter connects to the target via a 10-pin 2.54 mm connector, for example Yamaichi FAS-1001-2101-2-OBF. A target should feature a matching part, for example WÜRTH ELEKTRONIK 61201021621. 78K0 16-pin 2.54mm Adapter Embedded targets based on Renesas 78K0 microcontroller can also feature a 16-pin 2.54mm target debug connector with the Renesas 78K0 pinout.

  • Page 19: 14-Pin 2.54Mm Renesas Rl78 Debug Adapter

    14-pin 2.54mm Renesas RL78 Debug Adapter Ordering code IC50175 This debug adapter is used to connect the iC5000 and the iC5700 BlueBox to Renesas RL78 based target featuring 14-pin 2.54mm pitch target debug connector with the RL78 pinout. The debug adapter connects to the 25cm 40-pin ribbon cable coming from the BlueBox and to the target debug connector on the other side.
  • Page 20 If ‘RESET IN’ (target reset detection) from the microcontroller is not connected to the target debug connector pin 6, 10k ohm pull-up must be connected to this pin or the debugger may exhibit unpredictable behavior. The debug adapter connects to the target via a 14-pin 2.54 mm connector, for example Yamaichi FAS-1401-2101-2-OBF.

  • Page 21: 4-Pin Erni St Stm8 Debug Adapter

    4-pin ERNI ST STM8 Debug Adapter Ordering code IC50190 This debug adapter is used to connect the iC5000 and the iC5700 BlueBox to ST STM8 based target featuring 4-pin ERNI target debug connector with the STM8 pinout. The debug adapter connects to the 25cm 40-pin ribbon cable coming from the BlueBox and to the target debug connector on the other side.
  • Page 22 While iSYSTEM reserves the right to make changes to its products and/or the specifications detailed herein, it does not make any representations or commitments to update this document.
