TP-Link Archer MR200 Quick Installation Manual

Quick Installation Guide

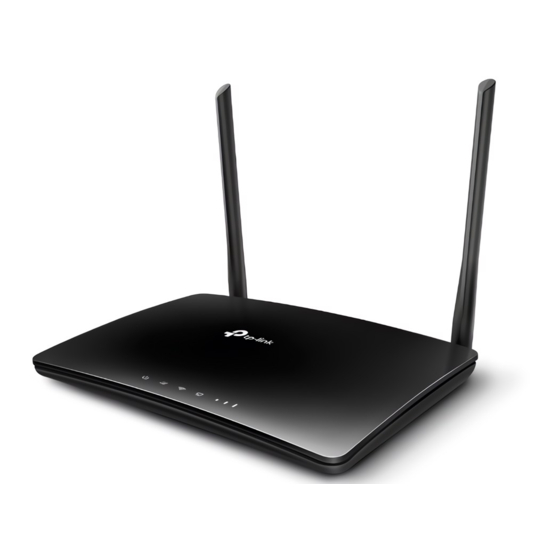

AC750 Wireless Dual Band 4G LTE Router
Connect the Hardware
Verify the Hardware
Connection
Enjoy the Internet
MR200
7106505324 REV1.0.0
Verify the hardware connection by checking the
following LEDs' status. If the Internet LED
your router is connected to the Internet successfully.
Power Internet
On On
Wired: Connect your computers to the router's LAN ports via Ethernet cables.
Wireless: Connect using the SSID (network name) and Wireless Password printed
on the product label at the bottom of the router.
3
Turn on the router.
is on,
Wireless
On
1
Install the 4G LTE antennas
and position them upwards.
2
Insert the SIM card into the slot
until you hear a click.
Note: Micro or Nano-SIM card must be converted
using a standard SIM card adapter provided by
TP-LINK.
For better Internet connection, make sure 3 to 4 bars
of the Signal Strength LED are lit. Otherwise,
relocate the router to a location that receives a strong
mobile Internet signal, such as near a window.
Wireless Archer MR200 Wired
