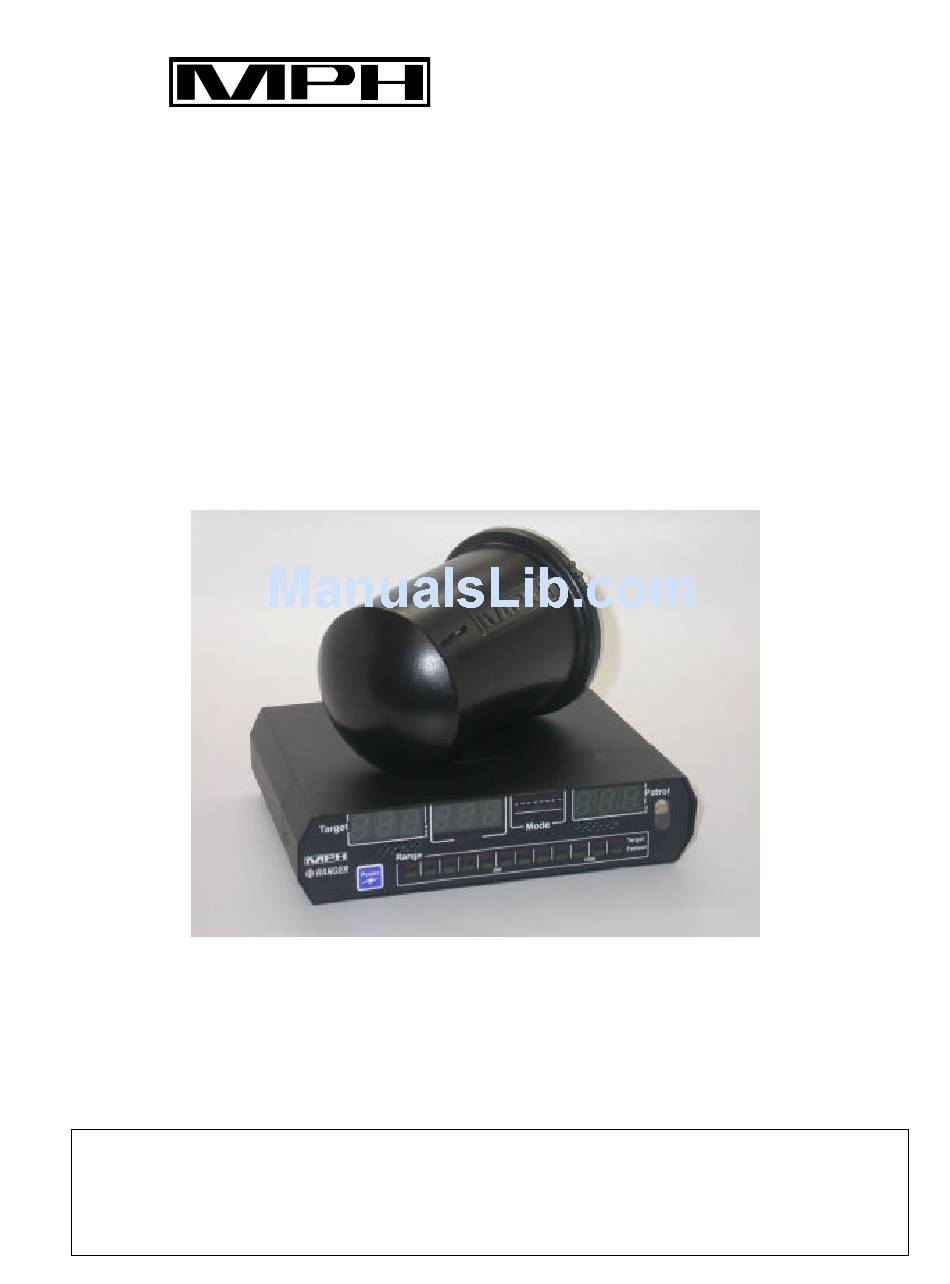

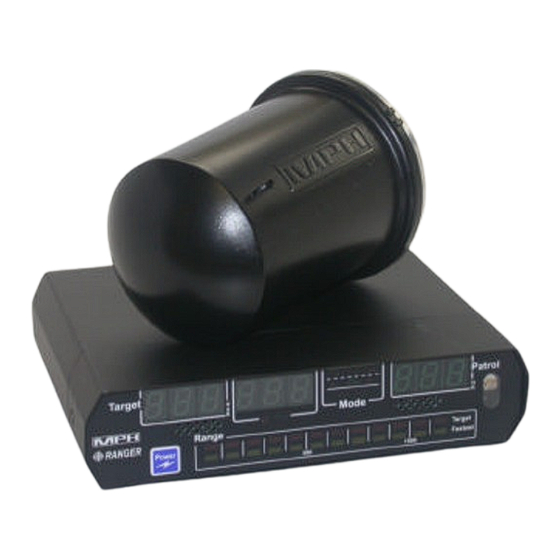

Ranger
Ranging Directional
Traffic Radar
Operation Manual
Copyright 2008, MPH Industries, Inc.
No part of this work, covered by the copyrights hereon, may be reproduced or copied in any form or
by any means – graphic, electronic, mechanical, including photocopying, taping, or information
storage and retrieval systems – without the written permission of MPH Industries, Inc.
Advertisement
Related Manuals for MPH Industries Ranger
Summary of Contents for MPH Industries Ranger
- Page 1 No part of this work, covered by the copyrights hereon, may be reproduced or copied in any form or by any means – graphic, electronic, mechanical, including photocopying, taping, or information storage and retrieval systems – without the written permission of MPH Industries, Inc.
-
Page 2: Table Of Contents
Table of Contents A Detailed Explanation of the RANGER's Features ........... 3 Practical use of the RANGER ................3 Display ........................5 Remote Control..................... 7 Operation........................9 FCC Licensing Requirements..................12 MPH RANGER Specifications ................... 13 Operational Recommendations .................. 16... -
Page 3: A Detailed Explanation Of The Ranger's Features
Modern DSP radar such as the RANGER can process many targets at the same time, but there is no practical way to display multiple targets and associate them with the correct vehicles. Fastest... - Page 4 RANGER considers all possible targets (there may be several in range of the radar) and displays the fastest one. While the speeds indicated in the fastest mode are as accurate as normal targets, visual identification of the offending vehicle is more difficult. For this reason, the RANGER only displays fastest targets on request when the mode is enabled and does not allow them to be locked.
-
Page 5: Display
The operating mode of the RANGER is illustrated with the scene of a patrol car and selected targets. In opposite direction moving mode, the scene shows an arrow in the left lane of traffic; it is ahead of the patrol car if the front antenna is selected and behind the patrol car if the rear antenna is selected. - Page 6 Doppler audio The RANGER features a speaker on the front panel for Doppler audio. The RANGER's audio is useful as an aid in target identification. The loudness is proportional to the strength of the received signal and increases as the target vehicle approaches.
-
Page 7: Remote Control
The RANGER remote has two main sections of controls located on its face. These sections are separated by a heavy white line on the label. - Page 8 Less-frequently used keys. These keys are flat membrane-type keys that are embossed around their edges to make them easy to identify by feel. Some of the keys have two colors of text identifying them. The red text is the default function of the key;...
-
Page 9: Operation
Operation Power up When the RANGER is first turned on, it will go through a complete self test. The radar will first perform a light test, in which all of the display's indicators will light, and then the radar will perform a 32 mph internal circuitry test. - Page 10 One fork will be used to simulate patrol speed and the other target speed. In moving mode, the speed printed on the target fork will not match the speed shown on the RANGER display. It will be added to or subtracted from the patrol speed depending on the mode switch selections.
- Page 11 RANGER's warranty. Remote control batteries The RANGER wireless remote uses 2 AA disposable alkaline batteries. These require periodic replacement by the user. A typical set of batteries should last approximately six months, as long as the remote control is not stored in a manner in which one of the buttons is inadvertently depressed for a significant period of time.
-
Page 12: Fcc Licensing Requirements
FCC Licensing Requirements The MPH RANGER has a Grant of Equipment Authorization under Part 15.245 of the FCC rules (CFR 47). The FCC identifier code for the K band units is: K-band CJR-SDRRK02 THIS EQUIPMENT COMPLIES WITH PART 15.245 OF THE FCC RULES. ANY CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE (MANUFACTURER) COULD VOID THE USER’S... -
Page 13: Mph Ranger Specifications
MPH RANGER Specifications The MPH RANGER is designed for convenient use by law enforcement agencies to measure the speed of motor vehicles when operated from a moving or stationary patrol vehicle. The RANGER utilizes the well-known and legally accepted Doppler principle and has been type accepted by the Federal Communications Commission. - Page 14 Four arrows (selected antenna and lane) Range displays Two LED bar graphs to inform user of target distances. Switches: Power Connectors: Counting unit C. COUNTING UNIT Connectors: Front antenna Rear antenna Power/Auxiliary D. REMOTE CONTROL Data link: Serial data stream via infrared light link. Power: Two AA alkaline batteries (3.0 Volts nominal) Raised, shaped keys:...
- Page 15 Type: Circularly polarized conical horn Beam Width: 13° Nominal +1 ° at maximum manufacturer's tolerance Beam Width Variance: Transmitter: Complies with FCC Part 15.245 FCC Type Acceptance: K band CJR-SDRRK02...
-
Page 16: Operational Recommendations
The RANGER fully conforms to all of these guidelines. 1. When using two-piece radar units, the antenna should be mounted so that the radar beam is not directed toward the vehicle occupants. - Page 17 ® MPH INDUSTRIES, INC. A SUBSIDIARY OF MPD, INC. 316 EAST NINTH STREET OWENSBORO, KY 42303 1-888-689-9222 FAX: (270) 685-6288 Part No. 991075 Rev. - Date: Sep. 2008...
