Fidelity Electronics G1-3000 Operation Manuals

G1 series energy genius general weighing scales
Hide thumbs
Table of Contents

Advertisement

Quick Links

G1 Series
Energy Genius General Weighing Scales
Operation Manual
V219 June 2015
Specifications subject to change without prior notice

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G1-3000 and is the answer not in the manual?

Questions and answers

Related Manuals for Fidelity Electronics G1-3000

Summary of Contents for Fidelity Electronics G1-3000

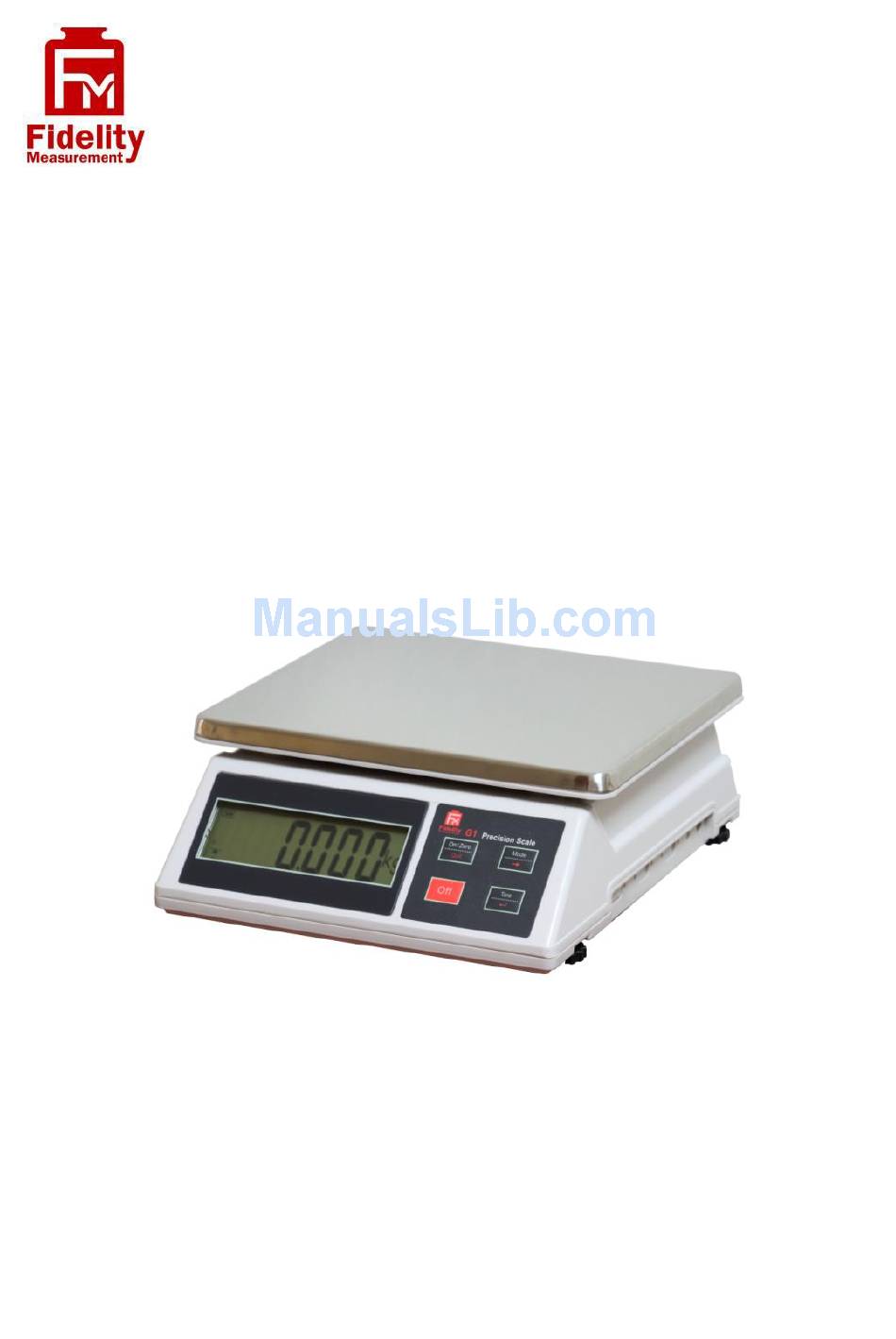

  • Page 1 G1 Series Energy Genius General Weighing Scales Operation Manual V219 June 2015 Specifications subject to change without prior notice...

  • Page 2: Table Of Contents

    Content 1. Before Started ................... 3 1.1 Placing the scale ................3 1.2 Power ....................3 1.3 Warm Up Time ..................3 1.4 Seal & Serial Number ................. 3 1.5 Metrological Legislation ..............3 1.6 In Case in Doubt ................. 3 2.

  • Page 3: Before Started

    1. Before Started 1.1 Placing the scale Place the scale on a strong and level surface. Avoid using this scale in environment where excessive wind flow, vibration and extreme temperature change exist. 1.2 Power This instrument can be powered: - ...

  • Page 4: Specifications

    2. Specifications Division (d) Capacity Model (Max) Standard High G1-3000 3000g 0.5g 0.2g G1-7500 7500g 0.5g G1-15K 15kg 0.002kg 0.001kg G1-30K 30kg 0.005kg 0.002kg A/D & Internal  24 bit Delta to Sigma to Delta (Δ-Σ) Resolution Analog-to-Digital Converter ...

  • Page 5: Keys, Display & Connections

    3. Keys, Display & Connections On/Zero Key Turn scale on or to set weight displayed to zero when an empty scale has drifted away from a true zero reading. Mode Key To trigger the pre-defined function set forth in internal function F30. Tare Key Press this key to tare off the weight of a container.
  • Page 6 11. Weight Units Indicator Current weight unit is shown here. DC Jack Input External power adaptor is plugged in here. Output requirements of the power adaptor: -  DC5V  Polarity: - Centre Positive RS232 Comport (DB9) RS232 communication comport. Battery Compartment To access to battery compartment, unlock the locking screw.

  • Page 7: Initial Setup

    4. Initial Setup Different internal checking and setting functions are built-in. Refer to below table for details. 4.1 Internal Function Table Function Descriptio Parameters / Notes Underlined = Default Setting Notes: - • When ADC is more than 1 million. W1 sign will appear. Actual ADC is = 1 million plus the ADC value being displayed.
  • Page 8 Weight mode = Max + 1d. Unit Set F7~F28 to Default If YES is selected, Long press [Mode] to confirm or press [Tare] to quit or Off to power off. After system is reset, Instrument displays DonE then return to F6 automatically.
  • Page 9 • “L” = reduced display update. Select this for applications which weight changing process is not necessary. 1 ~ 3 = filter strength: - • 1 for bad working environment where vibration, wind flow… etc affect stable reading, • 2 for normal environment, •...
  • Page 10 Output • Off = no outpout. • Auto = auto output when weight is stable. Output = print format. • Manual = Manual output. Output = print format. • PC = Continuous output. Output = PC data format. Notes: - If Auto, Manual or PC is selected, set also: - •...

  • Page 11: Enter Internal Function Mode

    about 20%. Under this mode, Instrument will go to sleeping mode if detected weight remain unchanged for 10 second. • Normal = Normal Mode 4.2 Enter Internal Function Mode Follow the below steps to enter and select desired parameter of an internal function.

  • Page 12: Operating The Scale

    5. Operating the Scale 5.1 Power On & Off  Press [On/Zero] to turn scale on.  Press [Off] to turn scale on. 5.2 Set Weight value to zero when unloaded Before weighing, make sure that value displayed is zero. If necessary, press [On/Zero] to set weight value to zero.

  • Page 13: Rs232 Data Output (Optional)

    6. RS232 Data Output (Optional) 6.1 Set output format (F16) If RS232 output is equipped, select one of the below output format: - a. Off = no outpout. b. Auto 1 = auto output when weight is stable. Output = print format. c.

  • Page 14: Auto & Manual Output Format

    Positive = space. Negative = minus (-) WEIGHT VALUE 7 digits weight value including location of decimal point. 7~13 If there is no decimal point, then the first character = space. COMMA SEPARATION UNIT kg = kilogram 15~16 g = gram lb = pound 6.5 Auto &...

  • Page 15: Error Codes

    Scale will power off automatically when voltage drops below 2.7V 8. Error Codes Error Description Code # Err 3 Exceed manual zero range Err 4 Offset out of range/unstable during power on Err 5 No load cell signal detected Err 6 Tare operation error Err 13 Exceed maximum power on...
