Do you have a question about the Superglide 130 and is the answer not in the manual?
Questions and answers
Deb Broomham
June 1, 2025

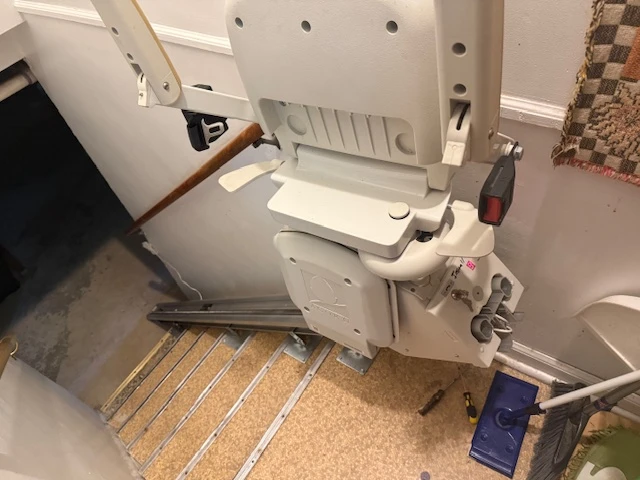

I bought used one. it worked briefly. but we aer using one track 7' not both ( 14') so it took a few days to figure out we needed to move the charger plate form top of 2nd track. but still gives E 9 or E 6 message. what can we do?
1 comments:
Mr. Anderson
June 1, 2025
For the Acorn Superglide 130:
- E9 means the key switch is off. Solution: Turn the key to the on position.
- E6 means the seat is not in the correct position. Solution: Turn the seat to the normal position and ensure the safety arm or hinge is down.
This answer is automatically generated
Jose Luis Valverde
January 19, 2025
Just bought an acorn **** stairlift and I **** trying to troubleshoot the electrical system. I **** getting a motor fault code. I changed from F1 to F3. any suggestions?
1 comments:
Mr. Anderson
February 4, 2025
For an Acorn Superglide 130 stairlift motor fault code, follow these troubleshooting steps:
1. Reset the Stairlift: Turn off the stairlift, wait for approximately 30 seconds, and then turn it back on. 2. Contact Dealer if Unresolved: If the issue persists, contact your authorized Acorn dealer for assistance.
This answer is automatically generated
Jim
July 9, 2025
How to replace acorn batteries
Roland Csincsura
June 23, 2025
Hello service team,

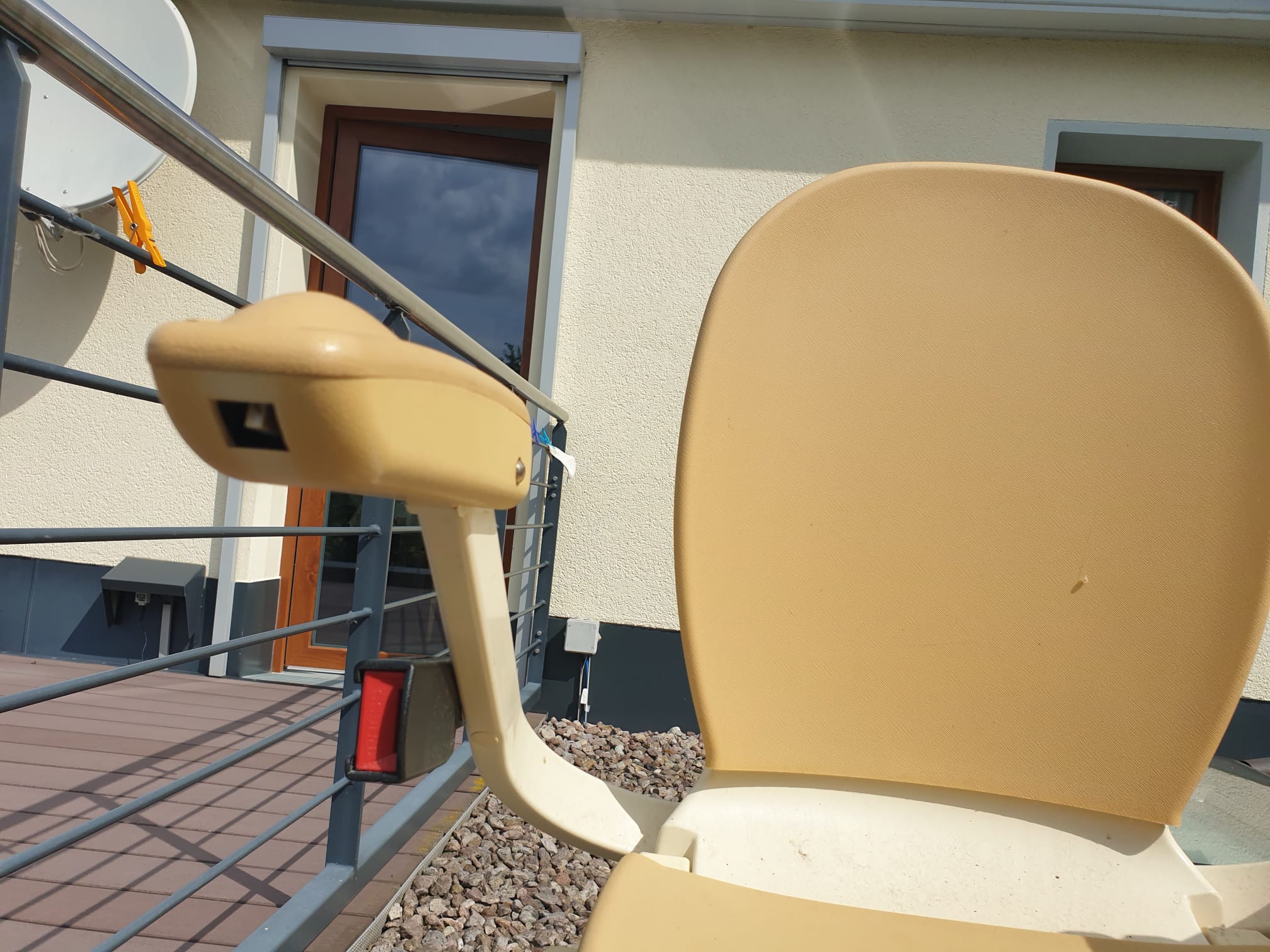

Regarding Brooks Superglide 130 T700 building jear 2017 Serial Number 110202720582U
The operating lift (switch) on the right side armrest has broken off. Can I get a new one and mount it by myself? Can I get work instruction therefore?
Thanks in advanc Best regards R. Csincsura
Jerry Snider
April 10, 2025
Code a 1 what the chair showing
Gary burkholder
February 1, 2025

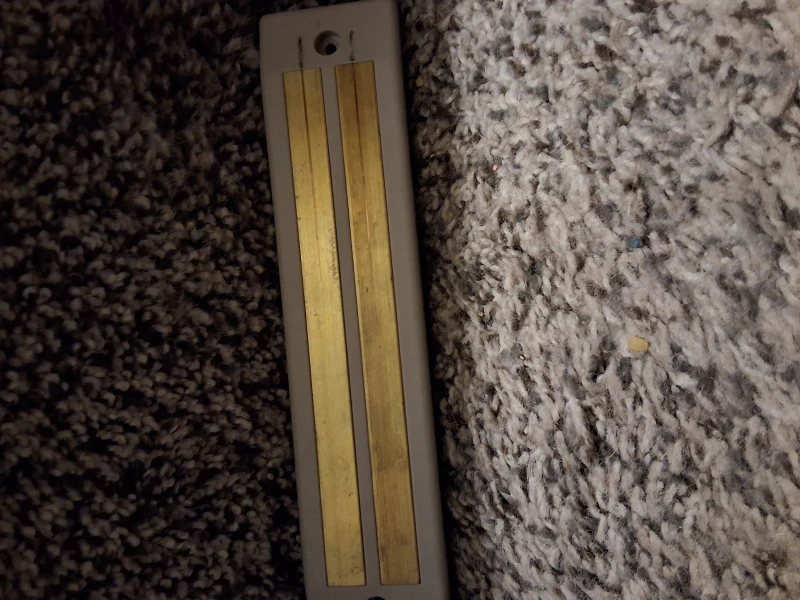

On a acorn **** which is the - charge rail and which is the + charge rail
Page 1
User Manual Acorn Superglide 130 Straight Stairlift ENGLISH User Manual PCB T700...
Page 3
The operation of the safety sensors. Rail and carriage are free of debris. Once a year, it is mandatory to call your Acorn/authorized dealer to perform the annual inspection, that includes all maintenance and safety inspections and repairs where necessary. Regular maintenance is essential for keeping your stairlift in proper operating condition.
Page 4
450 or 900 angle when clear of articles or obstructions mounting and dismounting. before using the stairlift. Acorn Stairlifts User Manual...
Page 5
DANGER! WARNING! WARNING! Always consult your Acorn Do not operate the stairlift if under Do not use the stairlift if you representative if the need the influence of alcohol or drugs.
Page 6
YOUR STAIRLIFT Acorn Stairlifts User Manual...
Page 7
It is designed to carry one person weighing no more than 127kg (300lbs)* or 159kg (350lbs)* HD model The Acorn Stairlift is powered by an internal battery pack that is charged from the residential mains supply/wall outlet via a transformer that reduces the voltage to a safe level.
Page 8
QUICK USER GUIDE This is a quick start reference guide to help get you started using your Acorn Superglide 130 straight stairlift. It is important for your safety that you study this manual to completely familiarize yourself with your stairlift.
Once completed, manually lift the hinge to allow access through the doorway that was obstructed. It is important that the stairlift is moved to the nearest charge point to ensure battery drain does not occur. Acorn Stairlifts User Manual...
Page 10
KEY SWITCH You will fi nd the key switch on the carriage cover. For the unit to operate, the key must be inserted and turned to the right (clockwise). Acorn Stairlifts User Manual...
Page 11
If a beep cannot be heard when the paddle is pressed, check the display code and refer to the digital display codes on pages 24-27. Acorn Stairlifts User Manual...
Page 12
The remote control will require the button to be released and pressed again. IT IS RECOMMENDED THAT THE BATTERY IN THE REMOTE CONTROL HANDSET IS REPLACED ANNUALLY *Remote handset may vary from that shown Acorn Stairlifts User Manual...
Page 13
*Perch/Sit-Stand Models MANUAL SWIVEL SEAT When the unit reaches the upper end of the track, it will stop automatically. The seat must now be turned to make getting on and off the stairlift safe. Acorn Stairlifts User Manual...
Page 14
After a short delay, the seat will start swiveling and stop once the 90º position has been reached. It is important that the seatbelt is undone ONLY when the seat has fully swivelled and it is safe to leave the stairlift. Acorn Stairlifts User Manual...
Page 15
Using the buttons located along both sides of the seat, lower or raise the footrest as required. Acorn Stairlifts User Manual...
Page 16
To park the lift, press the UP direction on the remote controls until the lift beeps and stops on the intermediate charging point. The hinge will fold up automatically. Using the remote control, call the lift down to its lower stopping position. The folding hinge will lower automatically. Acorn Stairlifts User Manual...
Page 17
Note: The stairlift will not run if the downside arm is folded upwards. The downside arm must be completely down for the stairlift to operate. The stairlift can still be called with the remote controls. Acorn Stairlifts User Manual...
Page 18
If this happens, the batteries will have to be replaced by an engineer, which is not covered by the manufacturer’s warranty and is a chargeable service. Acorn Stairlifts User Manual...
Page 19
If the OSG operates spuriously due to excessive shock or vibration, indicated by ‘F7’ on the display panel, it is possible to reset it (see page 20). Acorn Stairlifts User Manual...
Page 20
Never wind the stairlift counter-clockwise/anti-clockwise if the fault code ‘F7’ shows, as this will result in damage to the OSG. IF IN DOUBT, CONTACT YOUR AUTHORIZED ACORN REPRESENTATIVE FOR FURTHER ADVICE Acorn Stairlifts User Manual...
Page 21
It is also recommended that the steel-toothed rack, mounted on the rail itself, should be vacuumed out on a regular basis. Acorn Stairlifts User Manual...
Page 22
The equivalent continuous A-Weighted sound pressure level of this equipment does not exceed 70db (A). For safety reasons, only Acorn specifi ed parts should be used. Use of parts that are not Acorn approved could aff ect the safety of your stairlift.
Page 23
The equipment has been tested and complies fully with Class A of 47CFR 2011 part 15 certifi cation. If not installed correctly by an Acorn Qualifi ed Technician there may be some interference with other household equipment (i.e TV and Radio reception).
Page 24
LIFT WILL BEEP and drive the Lift has been parked off a charge point, stairlift to a charge and is receiving no charge. point • Check that the mains supply has not been turned off Acorn Stairlifts User Manual...
Page 25
UP Carriage UP safety edge has been activated safety edge for obstruction NORMAL - Seat not in place • Turn the seat back to the The stairlift seat is not in the riding position riding position Acorn Stairlifts User Manual...
Page 26
FATAL ERROR CODES LIFT WILL NOT OPERATE • Reset the stairlift (power off for 30 seconds) FAULT - Relay fault • If not resolved, contact your authorized Acorn dealer for assistance FATAL ERROR CODES continued on next page Acorn Stairlifts User Manual...
Page 27
(see page 20) FAULT - Final limit overrun • If not resolved, contact your authorized Acorn dealer for assistance • Hand wind the lift FAULT - OSG switch UP to reset the OSG (see page 20) Acorn Stairlifts User Manual...
Page 28
Release the direction controller on the arm rest and press again in the DOWN direction. In the unlikely event that you need to disembark the stairlift mid travel, always attempt to swivel the seat towards the stairs. Acorn Stairlifts User Manual...
Page 29
MAKE SURE THE SEAT IS LOCKED INTO POSITION BEFORE ATTEMPTING TO DISEMBARK THE STAIRLIFT. IMPORTANT! IT IS IMPORTANT THAT THE SEAT BELT IS UNDONE ONLY WHEN THE SEAR HAS BEEN FULLY SWIVELLED TO FACE THE STAIRCASE AND LOCKED INTO POSITION. Acorn Stairlifts User Manual...
Page 30
LABELS Europe / Rest of world US / Canada Acorn Stairlifts User Manual...
Page 31
FOOT UNDER UP (E2) PLATE GREEN (E1) WHITE BLUE CONN 3 YELLOW FINAL DOWN LIMIT LIMIT LIMIT (F6) YELLOW BLUE BLACK WHITE BROWN COMMON CONN 4 SEAT DOWM SWITCH SWIVEL SWITCH (E9) (E6) GREEN WHITE WHITE Acorn Stairlifts User Manual...
Page 32
CONN3 B+ 24V B+ 12V MONITORING RED B+ 12V MONITORING RED CONN4 B- BLACK B- BLACK B+ 24V B+ 24V CONN4 CONN4 20A FUSE I/R SENSORS 25A FUSE 20A FUSE 20A FUSE I/R SENSORS I/R SENSORS Acorn Stairlifts User Manual...
Page 33
Serial No: Model: Acorn 130 T700 Straight Stairlift Acorn Mobility Services declares that the above referenced product is in conformity with the essential requirements of: Machinery Directive 2006/42/EC; Electromagnetic compatibility directive 2014/30/EU; Low voltage directive 2014/35/EU. Radio equipment directive 2014/53/EU, ETSI EN 300-220-2 V3.1.1...
Page 34
Service Date: Next Service Due: Engineer Signature: Customer Signature: Service Date: Next Service Due: Engineer Signature: Customer Signature: Service Date: Next Service Due: Engineer Signature: Customer Signature: Service Date: Next Service Due: Engineer Signature: Customer Signature: Acorn Stairlifts User Manual...
Page 35
Service Date: Next Service Due: Engineer Signature: Customer Signature: Service Date: Next Service Due: Engineer Signature: Customer Signature: Service Date: Next Service Due: Engineer Signature: Customer Signature: Service Date: Next Service Due: Engineer Signature: Customer Signature: Acorn Stairlifts User Manual...
Page 36
SERVICE RECORD Service Date: Next Service Due: Engineer Signature: Customer Signature: Service Date: Next Service Due: Engineer Signature: Customer Signature: Service Date: Next Service Due: Engineer Signature: Customer Signature: Service Date: Next Service Due: Engineer Signature: Customer Signature: Service Date: Next Service Due: Engineer Signature: Customer Signature:...
Page 37
SERVICE RECORD Service Date: Next Service Due: Engineer Signature: Customer Signature: Service Date: Next Service Due: Engineer Signature: Customer Signature: Service Date: Next Service Due: Engineer Signature: Customer Signature: Service Date: Next Service Due: Engineer Signature: Customer Signature: Service Date: Next Service Due: Engineer Signature: Customer Signature:...
Need help?
Do you have a question about the Superglide 130 and is the answer not in the manual?
Questions and answers
I bought used one. it worked briefly. but we aer using one track 7' not both ( 14') so it took a few days to figure out we needed to move the charger plate form top of 2nd track. but still gives E 9 or E 6 message. what can we do?
For the Acorn Superglide 130:
- E9 means the key switch is off.
Solution: Turn the key to the on position.
- E6 means the seat is not in the correct position.
Solution: Turn the seat to the normal position and ensure the safety arm or hinge is down.
This answer is automatically generated
Just bought an acorn **** stairlift and I **** trying to troubleshoot the electrical system. I **** getting a motor fault code. I changed from F1 to F3. any suggestions?
For an Acorn Superglide 130 stairlift motor fault code, follow these troubleshooting steps:
1. Reset the Stairlift: Turn off the stairlift, wait for approximately 30 seconds, and then turn it back on.
2. Contact Dealer if Unresolved: If the issue persists, contact your authorized Acorn dealer for assistance.
This answer is automatically generated
How to replace acorn batteries
Hello service team, Regarding Brooks Superglide 130 T700 building jear 2017 Serial Number 110202720582U The operating lift (switch) on the right side armrest has broken off. Can I get a new one and mount it by myself? Can I get work instruction therefore? Thanks in advanc Best regards R. Csincsura
Code a 1 what the chair showing
On a acorn **** which is the - charge rail and which is the + charge rail
