GS70
Installation Guide
navico.com/commercial
For regulatory compliance
certificates and declarations, refer
to the product website on:
www.navico.com/commercial
*988-10540-002*
Surface mount the antenna
1
2
19 mm
3 mm
3
4
5
Antenna mounting location
X
RADAR
2 m (6 ft) Min
0.5 m (20") Min
Radio Transmitter
X
Electromagnetic
Interference
X
Pole mount (Internal cable)
Pole mount (external cable)
1
Magnetic Field
X
X
0.5 m (20") Min
3
1
2
3
4
2
4
Advertisement
Table of Contents
Related Manuals for Simrad GS70
Summary of Contents for Simrad GS70

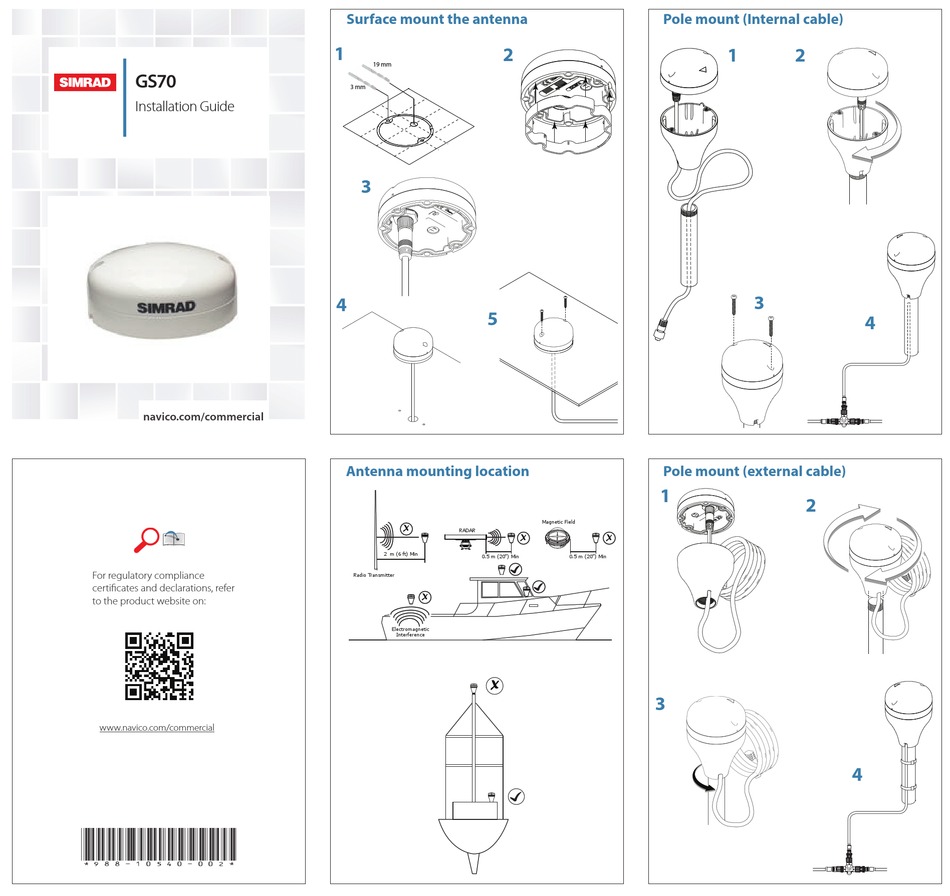

- Page 1 Surface mount the antenna Pole mount (Internal cable) 19 mm GS70 3 mm Installation Guide navico.com/commercial Antenna mounting location Pole mount (external cable) Magnetic Field RADAR 2 m (6 ft) Min 0.5 m (20”) Min 0.5 m (20”) Min For regulatory compliance...
-
Page 2: Specifications
130852 RTCM feedback to display MX610 JB EXTERNAL Compliance Statements RTCM INPUT @ 9600 BAUD The GS70: • Meets the technical standards in accordance with Part 15.103 of the FCC Rules • Comply with CE under R&TTE directive 1999/5/EC •...
