SIMRAD GS10
GPS Smart Antenna
Introduction
The GS10 GPS Smart Antenna is a self-contained position provider
for a navigation system. The antenna can be mounted in the ex-
posed environment on a ship, and will supply position data, time,
SOG and COG, using NMEA2000 protocols on Simrad's SimNet data-
bus.
The GS10 contains a 12-parallel channel GPS receiver with WAAS
and EGNOS. It comes with a fixed 5 m (16.4') SimNet cable with
connector, ready to connect to a Tee Joiner on the SimNet system,
or navigation product.
Installation
This paper informs how to install your GS10 GPS Smart Antenna and
connect it to a NMEA2000/SimNet network using SimNet network
components.

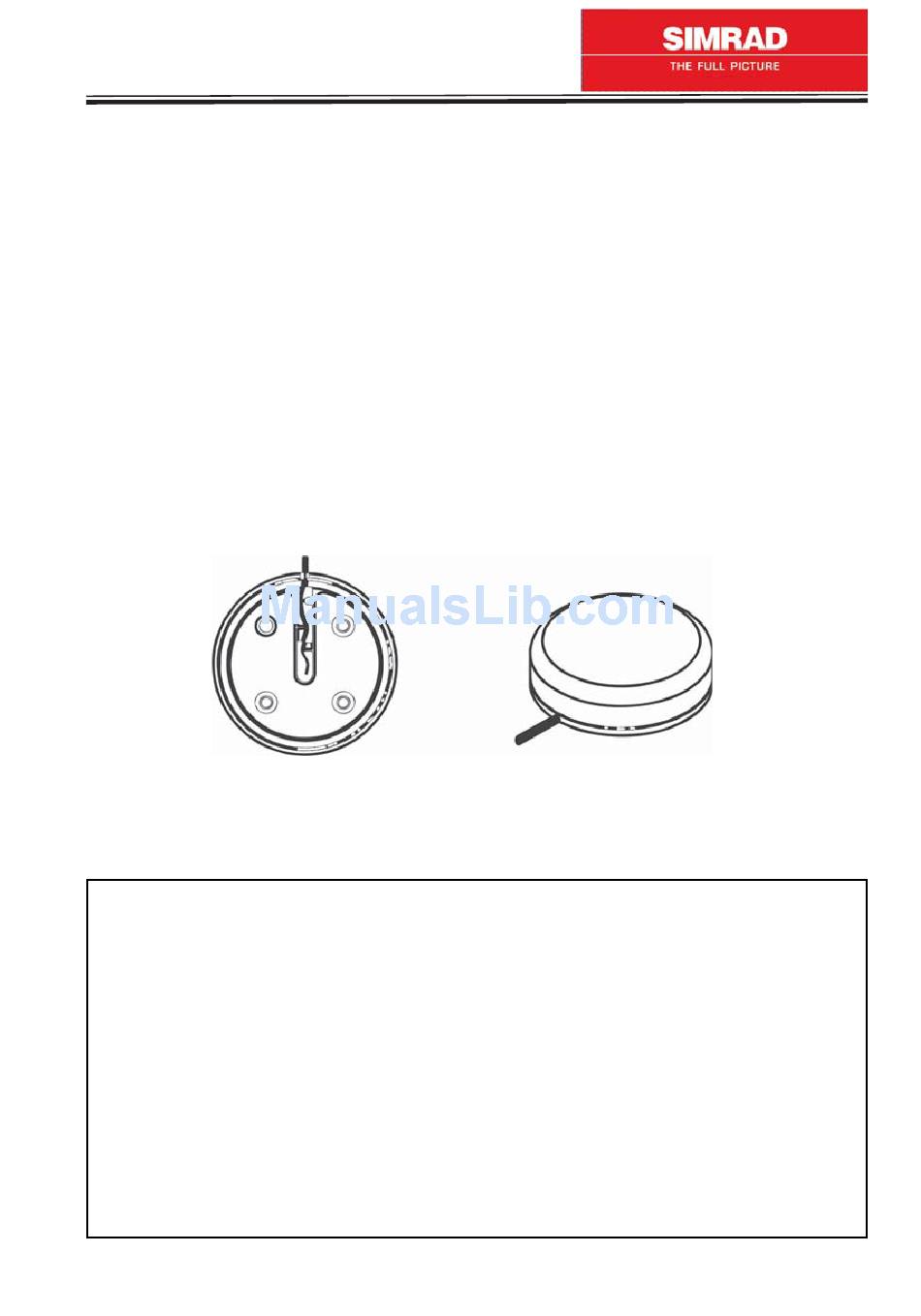

GS10, bottom view (left) and top view (right).
Supplied Parts:
GS10 GPS Smart Antenna incl. 5 m (16.4') cable w/connector.
Quick release mount adapter incl. 0-ring, 2 long mounting screws,
2 short screws, 2 lock adapters.
Pole mount adapter incl. 4 mounting screws and 4 lock washers.
Tools required:
Wire pliers, flat + cross-shaped screwdriver.
10 mm (3/8") drill bit (if you need to route the cable through a
bulkhead).
2.5 mm (7/64") drill bit (for the screw holes, to secure the quick
release mount).
1
Advertisement
Table of Contents
Related Manuals for Simrad GS10
Summary of Contents for Simrad GS10
- Page 1 Tee Joiner on the SimNet system, or navigation product. Installation This paper informs how to install your GS10 GPS Smart Antenna and connect it to a NMEA2000/SimNet network using SimNet network components. GS10, bottom view (left) and top view (right).
- Page 2 Mounting location The GS10 can be mounted on any flat surface (min. 90 mm (3 1/2” wide). The pole mount adapter lets you mount the antenna on a pole or swivel mount that uses standard marine 1” - 14 threads. To determine the mounting location, be sure that a clear, unobstructed view of the sky is available, as GPS signals travel “line-of-sight”...
- Page 3 Connecting to SimNet The GS10 communicates with your navigation system/SimNet net- work, using NMEA2000 protocols. You can create a NMEA2000 net- work between the GS10 and a single display unit or SimNet network, as shown in the following illustrations: GS10...
-
Page 4: Specifications
to the telephone wiring in a house. If you pick up a phone in your living room, you can hear someone talking into the phone in the bedroom. Network nodes: A network bus is built of network nodes spread along a backbone i.e. displays and sensors connected to the back- bone are called nodes. - Page 5 Article 3(1)(b) EN60945 Equipment Navigational equipment intended for world-wide use category aboard non-SOLAS vessels Model(s) Simrad GS10 GPS Smart Antenna Manufacturer Simrad Strøvring AS Østre Allé 6, DK-9530 Støvring Denmark Telephone +45 9986 5100 Telefax +45 9837 3807 Signed...
