Facom E.406 Instruction Manual

EN
Dear Customers,
Thank you for purchasing our digital angle meter. This manual will help you to use
the many features of your new digital angle meter. Before operating the digital angle
meter, please read this manual completely, and keep it nearby for future reference.
MAIN FEATURES
• Digital angle value readout
• +/-2° accuracy ( rotating 90° at speed of 30°/sec)
• CW and CCW operation
• Buzzer and LED indicator for the 9 pre-settable target torques
• 50 data memory for recall and joint torque auditing
• Auto Sleep after about 2 minutes idle
• Both AAA and rechargeable batteries are compatible

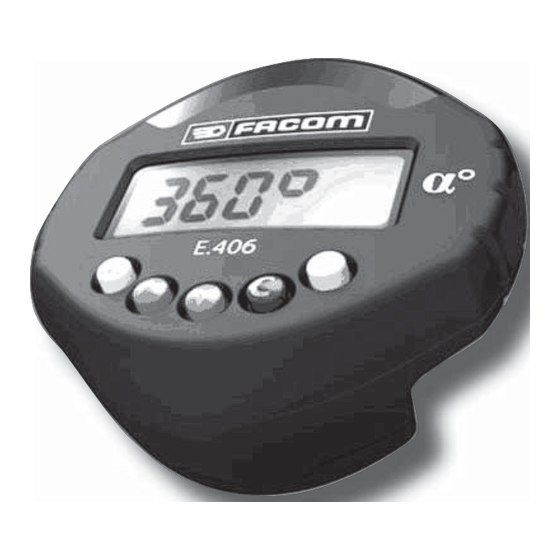

NAMES AND FUNCTIONS OF PARTS A
1. LED Indicator 7. Start/Setting button
2. Buzzer 8. Power on/Reset button
3. LCD Display 9. Communication Port
4. Pre-set angle selection 10. Battery Compartment
5. Up button 11. Magnet
6. Down button
A
1
2
Note:
3 *1: The accuracy of the readout is guaranteed from 0.0° to 360.0° and
the test speed is 30°/sec. For maintaining accuracy, calibrate the meter at
regular intervals (1 year recommended).
*2: Use a special designed cable (accessory) to upload record data to PC.
7
4
*3: Use two AAA batteries (Tested condition: Toshiba carbon-zinc R03UG battery)
5 8
*4: Horizontal and vertical test
6
*5: Environmental test:
11
10
*6: Electromagnetic compatibility test:
9
BEFORE USING THE METER
SPECIFICATIONS
BATTERY INSTALLATION
E.406
• Remove the battery cover.
Accuracy *1 ±2° for 90° rotation @ 30°/sec
• Insert two AAA batteries matching the -/+ polarities of the battery
to the battery compartment.
0 ➞ 999,0°
Display range
• Put on the battery cap and rotate it tightly according to the following fi gures.
Resolution 0,1°
Pre-setting No 9 sets
POWER ON AND RESETTING THE METER
• Press
1 ➞ 360,0° (increment 1°)
Range
• Usually press
Data memory size BN : 50
PC Connectivity *2 No
Bright LED 6 LED / 1 Red+5 Green B
Button 5
Battery AAA x 2
Battery Life *3 48 hrs.
(Continuous operation)
Battery Life *3 1 Year
(Standby)
Operating Temperature -10°C ➜ 60°C
Storage Temperature -20°C ➜ 70°C
Humidity Up to 90% non-condensing
Drop Test 1 m
Vibration Test *4 10 G
Environmental test *5 Pass
Electromagnetic compatibility Pass
test *6
a. Dry heat e. Impact (shock)
b. Cold f. Vibration
c. Damp heat g. Drop
d. Change of temperature
a. Electrostatic discharge immunity (ESD)
b. Radiated susceptibility
c. Radiated emission
B
BELGIQUE
LUXEMBOURG
to power on the meter.
to reset the meter before using it.
DANMARK
FINLAND
NORGE
SVERIGE
DEUTSCHLAND
ESPAÑA
ITALIA
FAST GETTED START
ΕΛΛΆΔΑ
➜ Press
to power on.
➜ Press
or to set target angle.
LATIN AMERICA
➜ Press
to start the angle measurement.
➜ Start rotation.
➜ Rotation stop and the LCD will be fl ashing.
➜ Now press
to record angle or
press to clear or
press to count from current angle.
