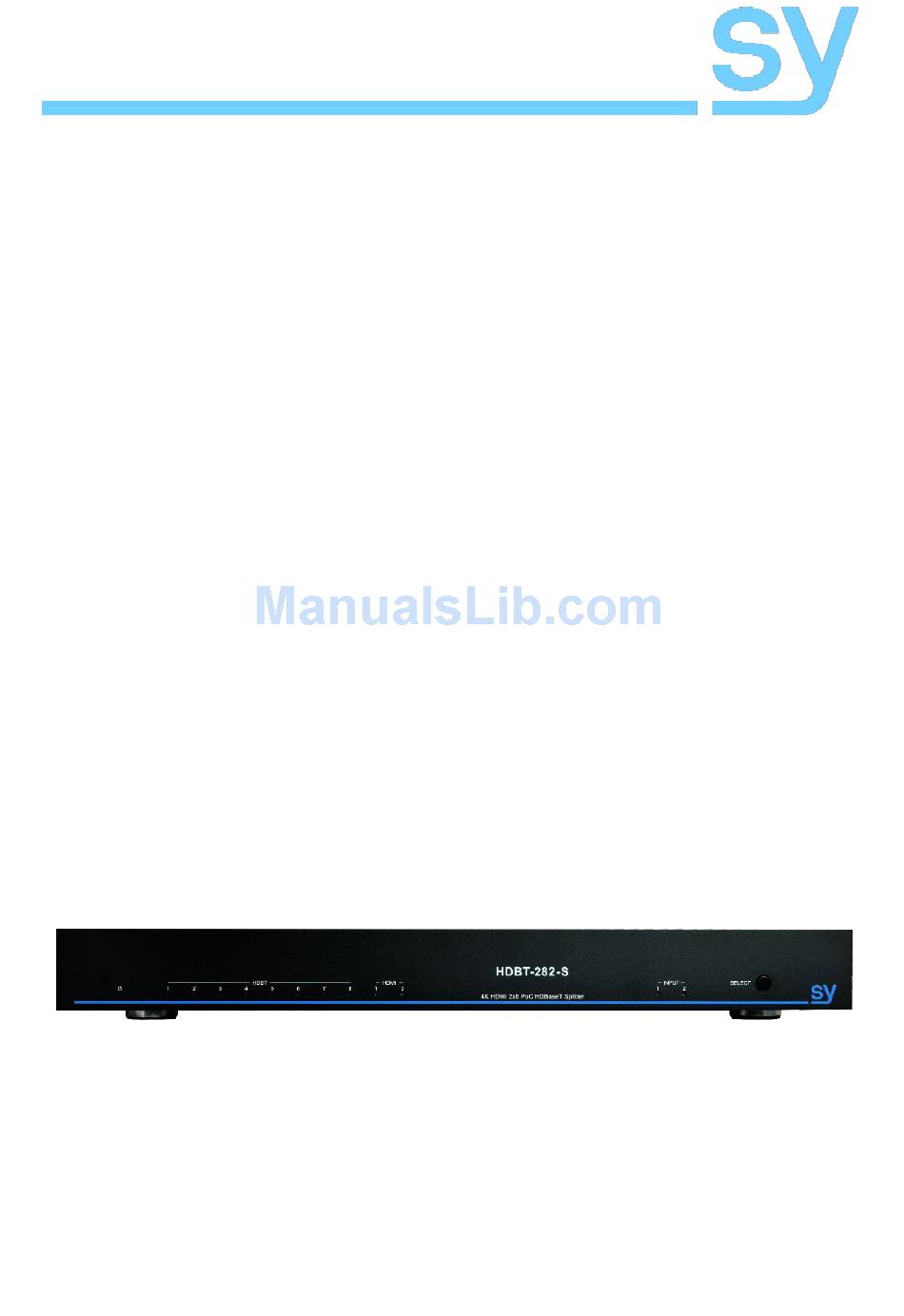

- Page 1 SY-HDBT-282-S Installation Guide SY-HDBT-282-S HDMI to HDBaseT Splitter with Audio De-Embedder SY Electronics Ltd., Unit 7 Worrall Street, Salford, Greater Manchester, M5 4TH Tel: +44 (0)161 868 3450 – Fax: +44 (0)161 868 3459 Web: sy.co.uk...
-
Page 2: Connectors And Controls
SY-HDBT-282-S The SY-HDBT-282-S takes two HDMI inputs and splits the selected input equally to all eight HDBaseT outputs as well as to both HDMI outputs. This switch splitter allows any source to be shown on any of the connected displays, these sources can include BluRay or UHD BluRay players, satellite receivers, gaming consoles, or PCs. -
Page 3: Edid Management
HDBaseT outputs to HDBaseT receivers POWER 48V DC power input Operation of the SY-HDBT-282-S The SELECT button on the front panel switches between the two HDMI inputs. The selected input then appears on the two HDMI outputs as well as the eight HDBaseT... -
Page 4: Rs232 Commands
57600 baud, no parity, 8 data bits, and 1 stop bit. The default address of the SY-HDBT-282-S is 00. If this address is not 00 then each RS232 command must be preceded by Azz, where zz is the address of the SY-HDBT- www.sy.co.uk... - Page 5 Status RS232 Command: This command outputs the current status of the SY-HDBT-282-S, the status info for the HDMI inputs, HDBaseT outputs (OUT01 to OUT08 in the status report) and the two HDMI outputs (OUT09 and OUT10 in the status report).
- Page 6 SY-HDBT-282-S Where xx is the actual address of the device in the range 00 to 99. The factory default value is 00. Set RS232 Bypass Mode RS232 Command: SET RS BP x RS232 Response: RS BP x Where x is either 0 to enable RS232 bypass mode or 1 to disable RS232 bypass mode.
- Page 7 SY-HDBT-282-S the specified output. When z is 0, the output HDCP mode to auto, where it follows the HDCP mode of the input source device. When z it 1, the output HDCP mode is disabled. Get HDCP the Output Mode...
- Page 8 SY-HDBT-282-S Value for y EDID Setting 1080p 3D 2ch 1080p 3D 6ch 1080p 3D 8ch 4K 30Hz 3D 2ch 4K 30Hz 3D 6ch 4K 30Hz 3D 8ch 4K 60Hz 3D 2ch 4K 60Hz 3D 6ch 4K 60Hz 3D 8ch USER1 Memory...
- Page 9 00 to FF that represents the command code value to select the desired input. To ensure correct operation of the SY-HDBT-282-S, the Code y values for input 1 and input 2 must be different. The factory default values are 57 for input 1, and 41 for input 2.
- Page 10 This command gets the common values that should prefix every IR command intended for the SY-HDBT-282-S. The values for xx and yy are in ASCII hexadecimal notation and the factory default values for x and y are 00 and FF.
- Page 11 For full details please refer to our Terms and Conditions. 4. SY Product warranty is automatically void under any of the following conditions: The product is already outside of its warranty period ...
- Page 12 SY-HDBT-282-S NOTES www.sy.co.uk V1.0...
