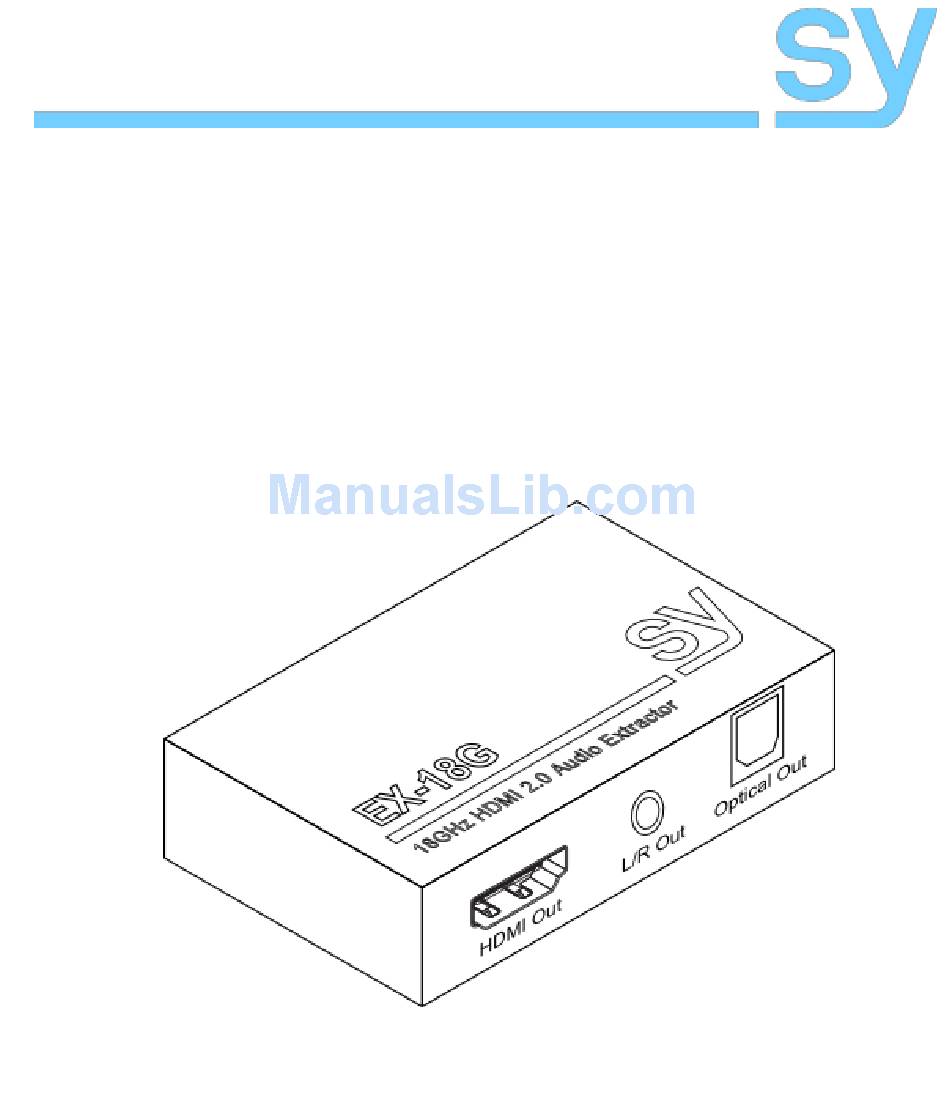

- Page 1 SY-EX-18G Installation Guide SY-EX-18G 18GHz HDMI 2.0b Audio Extractor (HDCP2.2) SY Electronics Ltd, 7 Worrall Street, Salford, Manchester, M5 4TH, UK Tel: +44 (0)161 868 3450 – Web: sy.uk...
- Page 2 The SY-EX-18G is an 18GHz HDMI 2.0b audio extractor (de-embedder), with simultaneous Toslink Optical and stereo L/R audio outputs. Supported bypass audio formats include 2 channel LPCM, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos and DTS-HD Master Audio, with up to 192 KHz audio sampling rate.
-
Page 3: Panel Descriptions
Bitstream, or 2 Ch (LPCM 2.0) HDMI IN HDMI input from source device LINK HDMI signal present indicator Rear Panel Item Description HDMI Out HDMI output to display L/R Out Stereo analogue audio output Optical Out Digital optical audio output (S/PDIF) V1.0 sy.uk... -
Page 4: Connection Diagram
Connection Diagram sy.uk V1.0... - Page 5 Using the SY-EX-18G Simply connect the SY-EX-18G between the HDMI source and the HDMI display, and then connect the digital optical and/or the analogue audio outputs to your sound system. Both audio outputs can be used simultaneously. The three-position switch has the following options:...
-
Page 6: Specifications
HDCP 2.2 / 1.4 Up to 4K2K @50/60Hz (YUV 4:4:4) Video Resolutions 1080p @120Hz and 1080p 3D @60Hz Colour depth 8 / 10 / 12 bit Colour space RGB, YCbCr 4:4:4 / 4:2:2 Controls 3 Way Switch Audio EDID Mode Switch sy.uk V1.0... - Page 7 L/R Audio Level 2V pk-pk Max. (0.7V rms) General 5V DC @ 1A Power 1W max Consumption Dimension 73.5 x 17 x 61 mm (W*H*D) Weight 130 g Temperature 0 ~ 40℃ 10% ~ 90% RH Humidity (non-condensing) V1.0 sy.uk...
-
Page 8: Safety Instructions
5. Only use these products indoors and in a dry environment. Do not allow any liquids or harmful chemicals to come into contact with these products. sy.uk V1.0... -
Page 9: After Sales Service
For full details please refer to our Terms and Conditions. 4. SY Product warranty is automatically void under any of the following conditions: The product is already outside of its warranty period ... - Page 10 NOTES: SY Electronics Ltd, 7 Worrall Street, Salford, Manchester, M5 4TH,UK Tel: +44 (0)161 868 3450 – Web: sy.uk sy.uk V1.0...
