FX7500
RFID READER
QUICK START GUIDE
© 2013 Motorola Solutions, Inc. All rights reserved.
Motorola reserves the right to make changes to any product to improve reliability,
function, or design.
Motorola does not assume any product liability arising out of, or in connection
with, the application or use of any product, circuit, or application described herein.
No license is granted, either expressly or by implication, estoppel, or otherwise
under any patent right or patent, covering or relating to any combination, system,
apparatus, machine, material, method, or process in which Motorola products
might be used. An implied license exists only for equipment, circuits, and
subsystems contained in Motorola products.
MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M Logo are
trademarks or registered trademarks of Motorola Trademark Holdings, LLC and
are used under license. All other trademarks are the property of their respective
owners.
Motorola Solutions, Inc.
One Motorola Plaza
Holtsville, N.Y. 11742-1300
http://www.motorolasolutions.com
Motorola Solutions, Inc.
One Motorola Plaza
Holtsville, New York 11742, USA
1-800-927-9626
http://www.motorolasolutions.com
MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M Logo
are trademarks or registered trademarks of Motorola Trademark Holdings,
LLC and are used under license. All other trademarks are the property of
their respective owners.
© 2013 Motorola Solutions, Inc. All rights reserved.
MN000070A01 Revision A — November 2013
Introduction
FX7500 Series readers provide real time, seamless tag processing for EPC
Class1 Gen2 compliant tags. This Quick Start Guide provides information
about installing and connecting the reader. For more information refer to the
FX Series RFID Readers Integrator Guide, available at
http://www.motorolasolutions.com/support

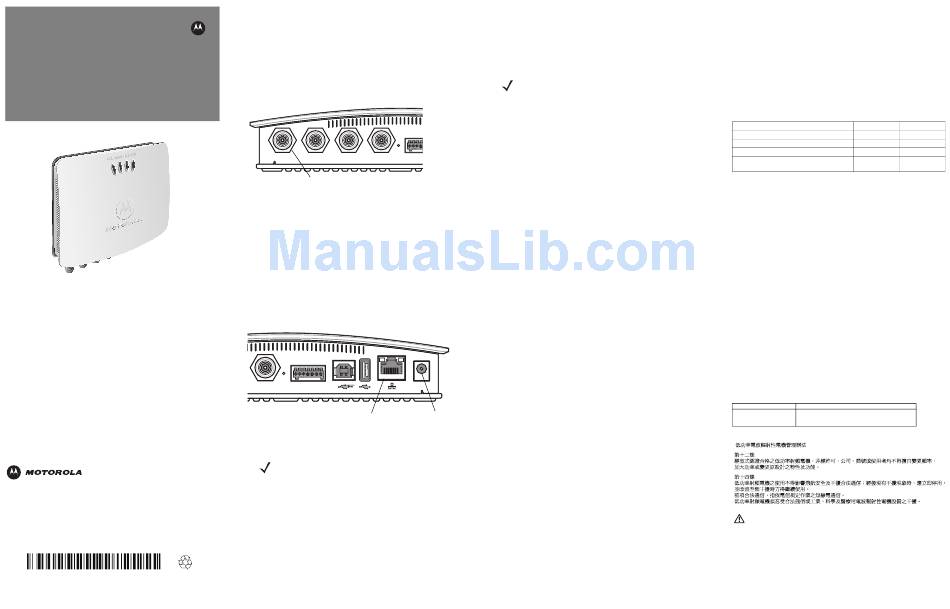

Reader Installation
1.
Unpack the reader.
Set up the reader and tags on a desktop.
2.
3.
Connect the antenna to antenna Port 1.
Port 1
Port 2
Port 3
Port 4
GPI
Antenna Port 1
Connect the Ethernet cable to the Ethernet port.
4.
Connecting the reader to a subnet that supports DHCP is recommended.
This installation procedure is not guaranteed to work if DHCP is disabled
in the reader and if the reader is connected directly to a PC.
Port 4
GPIO
24 VDC
10/100BaseT Ethernet Port
Power
(with POE)
Connect the AC power supply to a power outlet and connect to the power
5.
port.
NOTE This step is not required for networks supporting
Power-over-Ethernet (POE).
The green power LED remains lit after successful installation.
1
Connecting to the Reader
To connect via host name:
1.
Open a browser. Recommended browsers are IE10 (disabling
Compatibility View is recommended), Chrome v29, and FireFox 24.
Enter the host name, provided on a label on the reader, in the browser
2.
(e.g., http://fx7500cd3b0d) and press Enter. The User Login window
appears and the reader is ready.
NOTE Connect the reader to a network that supports host
name registration and lookup to ensure the network can
access the reader using the host name. For instance,
some networks can register hostnames through DHCP.
When first connecting to the reader, it is recommended
to keep DHCP enabled in both the PC and in the
reader, although it is not guaranteed that host name will
work all the time.
As an alternative to using the host name on the reader
label, construct it using the reader MAC address on the
bottom of the reader. To do this, enter the prefix
FX7500, followed by the last six characters of the MAC
address. For example, for a MAC address of
0023683BA63A, use the prefix FX7500, followed by
3BA63A. Enter http://FX75003BA63A in the browser
address bar to access the reader.
Additional Information
Following are links to additional information and software:
Product Manuals:
http://www.motorolasolutions.com/support/fx7500
This page includes the following guides:
-
FX7500 RFID Reader Quick Start Guide (p/n MN000070xxx)
-
FX7500 RFID Reader Integrator Guide (p/n MN000026xxx)
-
RFID Reader Software Interface Control Guide (p/n 72E-131718-xx)
-
RFID Demo Applications User Guide (p/n 72E-160038-xx)
Data Sheet:
http://www.motorolasolutions.com/FX7500
PowerSession and other related software:
http://www.motorolasolutions.com/support/fx7500
2
Regulatory Information
This provides information for the Motorola, FX series RFID Reader products,
Regulatory Model No: FX7500. For information on setting up and using the reader, refer
to the FX Series RFID Reader Integration Guide at
www.motorolasolutions.com/support.
All Motorola devices are designed to be compliant with rules and regulations in locations
they are sold and will be labeled as required. Regulatory information is available from:
www.motorolasolutions.com/support.
Motorola devices must be professionally installed. The Radio Frequency Output Power
will not exceed the maximum allowable limit for the country of operation. Any changes
or modifications to Motorola equipment, not expressly approved by Motorola, could void
the authority to operate the equipment.
Regulatory Certification
The device is compliant with the following values and antenna characteristics:
FX7500
US
EU
Max Conducted RF Power at Antenna Input
+ 30.0 dBm
+29.2 dBm
Max Antenna Gain Allowed
+ 6 dBiL
+5.5 dBiL
Max Radiated Power Allowed
4W EIRP
2W ERP
Antenna Type
Circularly
N/A
Polarized Plate
Antennas
When using antennas not supplied by Motorola, the antennas must comply with all of
the appropriate specifications and criteria listed in the Regulatory Certification table.
Country Approvals
Regulatory markings are applied to the device signifying the radio(s) are approved for
use in the following countries: United States, Canada and Europe. Local language
translations are available at:
www.motorolasolutions.com/support.
Please refer to the Motorola Declaration of Conformity (DoC) for details of other country
markings. This is available at: http://www.motorola.com/doc.
Brasil: Declarações Regulamentares para FX7500 - Brasil
Nota: A marca de certificação se aplica ao Transceptor, modelo FX7500. Este
equipamento opera em caráter secundário, isto é, não tem direito a proteção contra
interferência prejudicial, mesmo de estações do mesmo tipo, e não pode causar
interferência a sistemas operando em caráter primário.
Para maiores informações sobre ANATEL consulte o site: www.anatel.gov.br
CHILE:Este equipo cumple con la Resolución No 403 de 2008, de la Subsecretaria de
telecomunicaciones, relativa a radiaciones electromagnéticas.
Korea Warning Statement for Class B ITE
기 종 별
사 용 자 안 내 문
이 기기는 가정용 (B 급 ) 으로 전자파적합등록을
B 급 기기
( 가정용 방송통신기기 )
한 기기로서 주로 가정에서 사용하는 것을 목적
으로 하며 , 모든 지역에서 사용할 수 있습니다 .
Taiwan
Operation of the device without regulatory approval is illegal.
Ukraine
This equipment corresponds to requirements of the Technical Regulation No. 1057,
2008 on restrictions as to the use of some dangerous substances in electric and
electronic devices.
3
