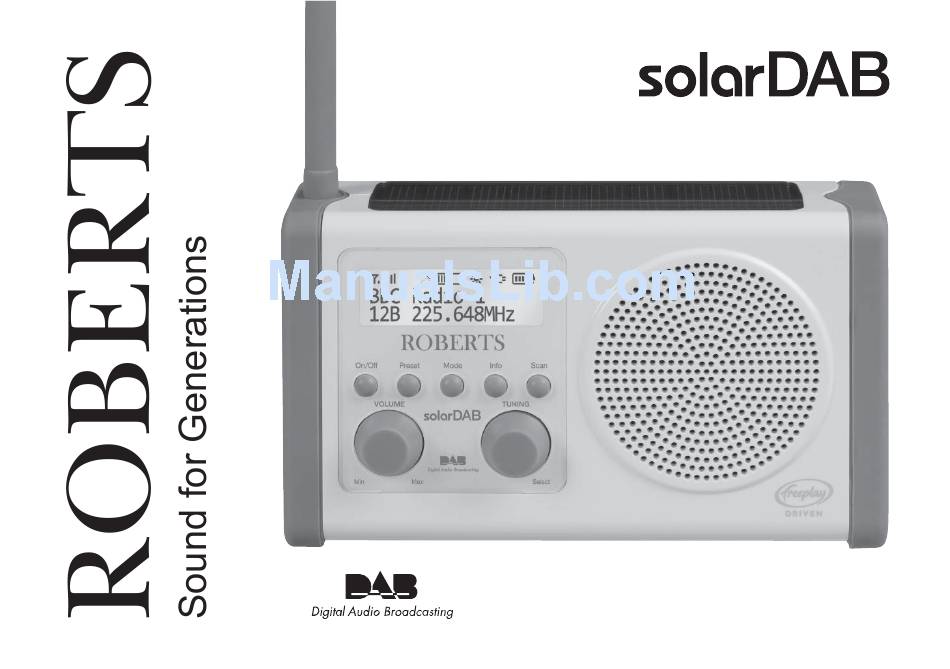

- Page 1 Solar powered DAB radio with rechargeable battery pack Please read this manual before use...
-
Page 2: Table Of Contents
Contents Controls ... 2-3 Using the AC adaptor ...4 Using solar power ...5 Operating your radio for the fi rst time ... 6-7 Selecting a station ...8 Secondary services ...8 Display modes ...9 Presetting stations ...10 Recalling a preset ...10 Finding new stations - in the UK ...11 Finding new stations - outside the UK ...11 Finding new stations - manual tuning ...12... -
Page 3: Controls
Controls (Front) 1. Tuning control 2. Volume control 3. On/Off button 4. Preset button 5. Mode Button 6. Telescopic aerial 7. Signal strength 8. Solar charging level 9. On charge indicator 10. Battery indicator 11. Info button 12. Scan button If you need any further advice, please call our Technical Helpline on :- 020 8758 0338 (Mon-Fri) -
Page 4: Controls
Controls (Back) 13. DC input socket 14. Line in socket (aux-in) 15. Headphone socket 16. Aerial storage slot... -
Page 5: Using The Ac Adaptor
Using the AC adaptor Your solarDAB radio may be powered either by using an AC adaptor (supplied) or by using solar power. For prolonged life, the internal rechargeable NiMH battery pack requires an external conditioning charge of 24 hours prior to fi rst use. 1. -
Page 6: Using Solar Power
Using solar power 1. In order to recharge your solarDAB radio's batteries using solar power, position the radio so that its integral solar panel receives direct sunlight. The more sunlight that falls on the solar panel - the more electricity it can generate to power the radio. -
Page 7: Operating Your Radio For The Fi Rst Time
Operating your radio for the fi rst time For prolonged life, the internal rechargeable NiMH battery pack requires an external conditioning charge of 24 hours prior to fi rst use. Please see page 4. 1. Remove the aerial from its storage slot at the back of the radio and carefully screw it into its position on the top left of the radio. - Page 8 7. If this is the fi rst time the radio is used a quick scan of UK Band 3 DAB channels will be carried out (or of the channels for the selected region, if different). The display will show "Auto tune selected...". 8.
-
Page 9: Selecting A Station
Selecting a station 1. The top line of the display shows the name of the station currently being listened to. 2. Rotate the Tuning control to scroll through the list of available stations. Note that the arrow pointer on the left side of the display shows the station that will be tuned to. -
Page 10: Display Modes
Display modes - DAB Your radio has fi ve display modes which can show information provided by the broadcaster in addition to the name of the radio station:- 1. Press the Info button to cycle through the various modes. a. Scrolling text Displays scrolling text messages such as artist, track name, phone in number etc. -
Page 11: Presetting Stations
Presetting stations There are 10 memory presets for the DAB waveband. 1. Press the On/Off button to switch on your radio and tune to the required station as previously described. 2. Press the Preset button. The display shows, either "Preset 1 free", or the name of the station already stored in Preset 1. -
Page 12: Finding New Stations - In The Uk
Finding new stations - in the UK As time passes new stations may become available. To fi nd new stations proceed as follows:- 1. Press and release the Scan button. The display will show "Auto tune selected". Your radio will perform a scan of the UK DAB frequencies. As new stations are found the station counter on the right-hand side of the display will increase and stations will be added to the list. -
Page 13: Finding New Stations - Manual Tuning
Finding new stations - manual tuning Normally, you will use the auto tune feature as described above to fi nd new radio stations. Should you need to search for DAB radio stations at a particular frequency, please use the following procedure. 1. -
Page 14: System Reset
System reset If your radio fails to operate correctly, or some digits on the display are missing or incomplete, or if you wish to restore your radio to its initial settings, please carry out the following procedure. 1. Press and hold down the Info button. 2. -
Page 15: Headphone Socket
Headphone socket A 3.5mm Headphone Socket located on the back of your radio is provided for use with either headphones or an earpiece. Inserting a plug automatically mutes the internal loudspeaker. IMPORTANT: Excessive sound pressure from earphones and headphones can cause hearing loss. Auxiliary input socket 1. -
Page 16: Display Backlight
When the batteries can no longer store suffi cient energy to power your radio after having been charged they should be replaced. Replacement battery packs will be available from Roberts Radio. The old battery pack should be recycled or disposed of in an environmentally friendly way as prescribed by your local regulations. -
Page 17: Specifi Cations
Specifi cations Power Requirements Mains AC 230 volts, 50Hz Batteries Built in NiMH 3 x AA cell battery pack Battery Life Up to 27 hours on full charge at moderate volume Solar Power Continuous play under adequate sunlight Frequency Coverage DAB Band 3 174.928 - 239.200MHz DAB L-band... -
Page 18: Notes
Notes... -
Page 19: Guarantee
In the event that it is not possible to return the instrument to the Roberts' dealer from whom it was purchased, please contact Roberts Radio Technical Services at the address shown on the rear of this manual. - Page 20 ROBERTS RADIO TECHNICAL SERVICES 97-99 Worton Road Isleworth Middlesex TW7 6EG Technical Helpline :- 020 8758 0338 (Mon-Fri during offi ce hours) Website: http://www.robertsradio.co.uk © 2008 Roberts Radio Limited Issue 1...
